DP030-015-304-3-R2 (PK-10)

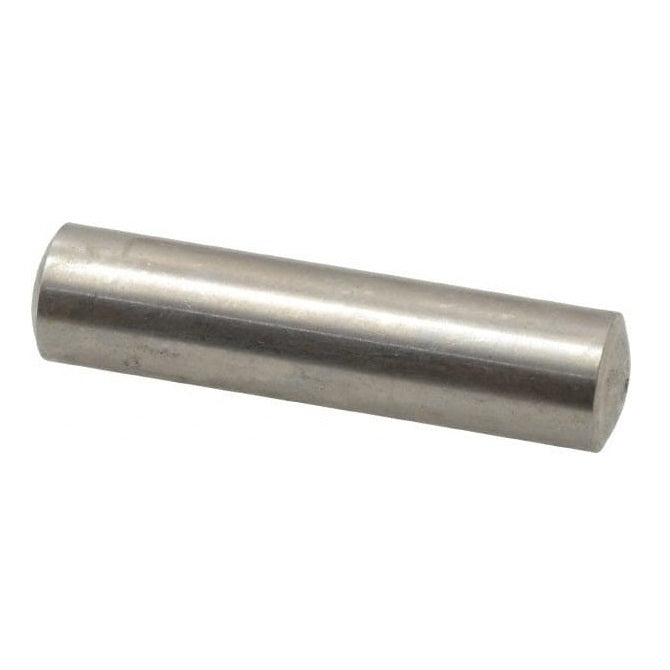

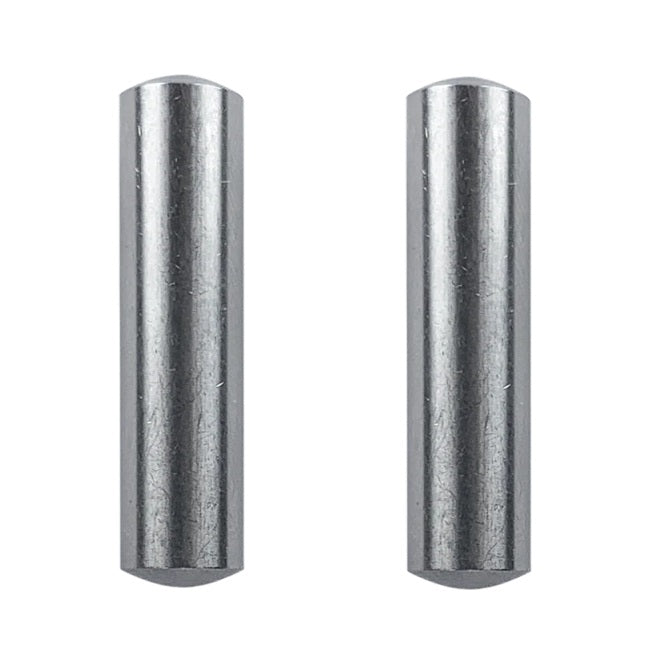

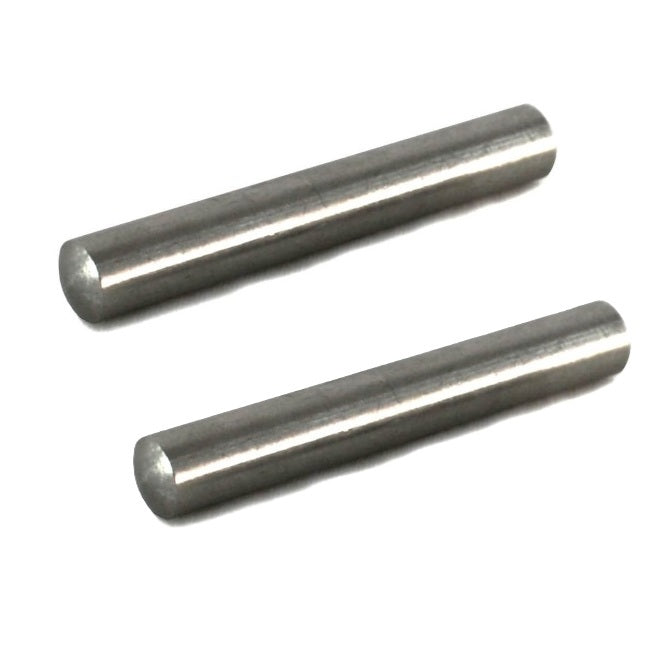

Dowel Pins - 3x15x16.25 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin

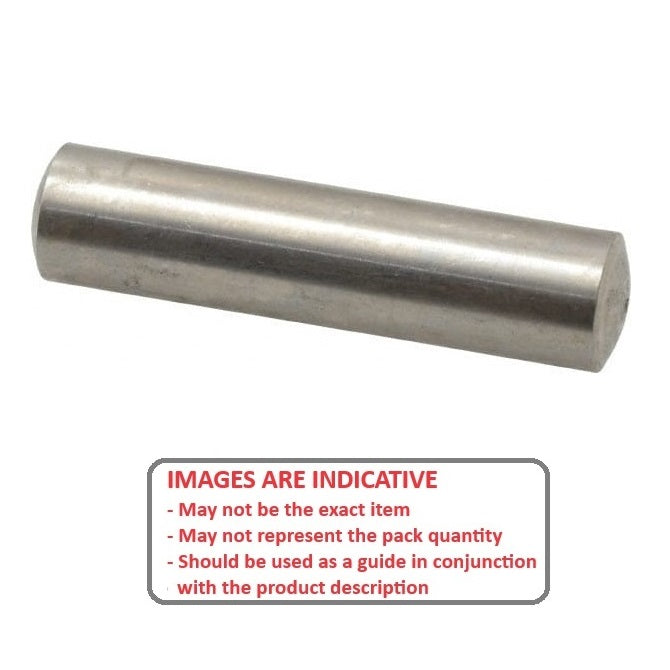

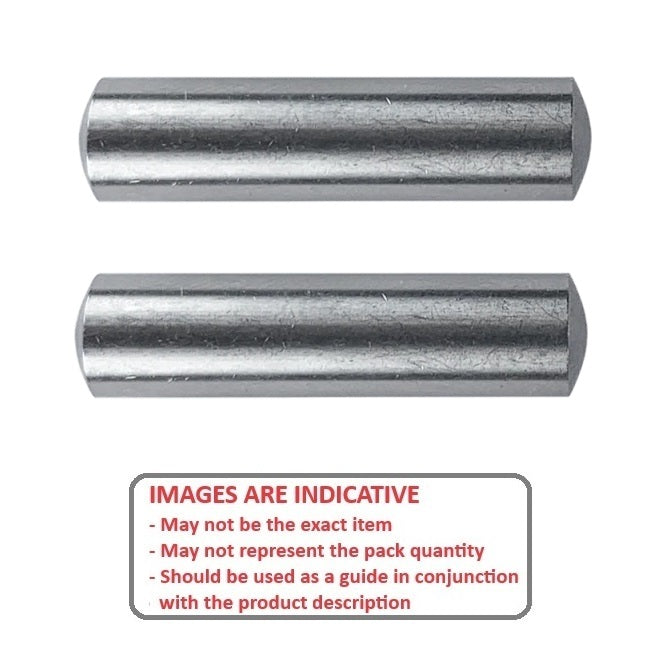

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dowel Pins - 3x15x16.25 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$6.05 AUD
$6.05 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
 Qty: 72 packs (720 pcs) available now

Order 50 or more packss of 10 (500 pcs)
for $5.45 AUD per 10 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 21, 2026

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless

Product Details

Diameter (D): 3.000mm
+ 0.004 / + 0.012
(3.000mm is 0.118 in.)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Diameter (D): 3.000mm
    + 0.004 / + 0.012
    (3.000mm is 0.118 in.)
  • Length (L): 15.00mm
    +/- 0.350
    (15.00mm is 0.591 in.)
  • Approx. Overall Length: 16.25mm
    +/- 0.350
    (16.25mm is 0.64 in.)

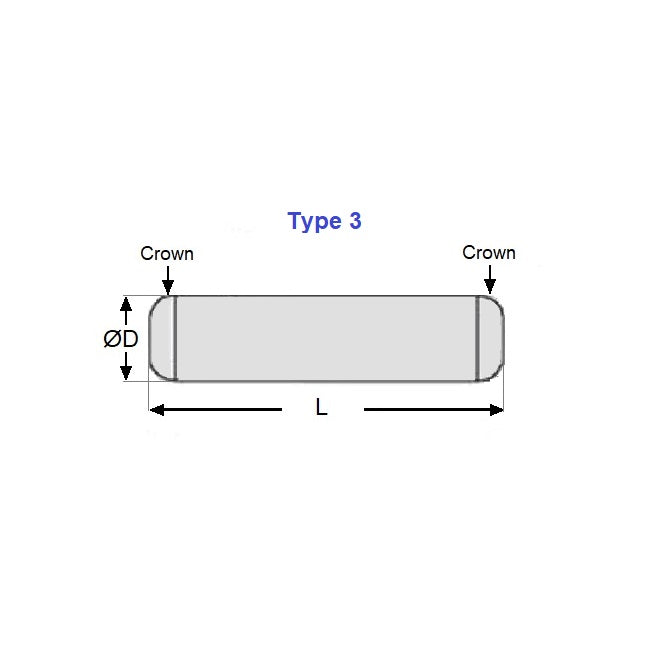

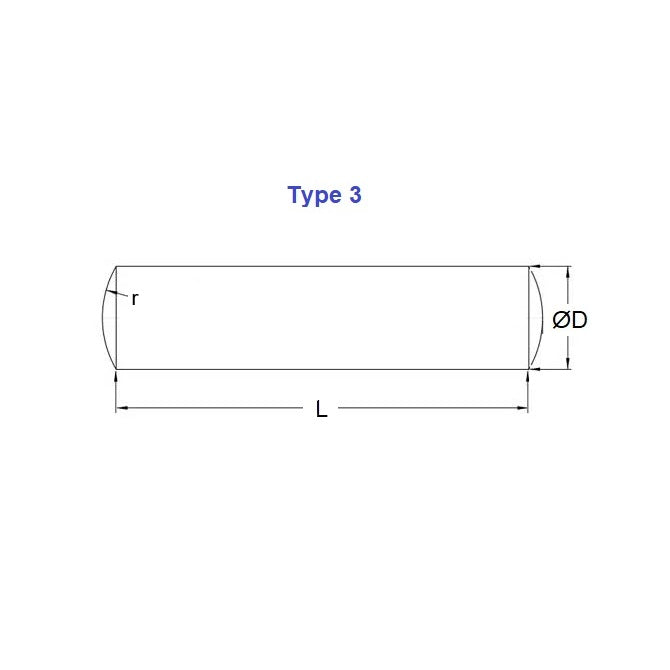

  • Type: 3 (Rounded Ends)
  • Notes: Special Part Modified DIN 7
  • Standard: Modified End Radius

Brand: NoCor
Country of Origin: TW

Product Compliance and Data

Similar to

  • NoCor® DOWMS-030-016
  • DOWMS030016

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
