PSP-030-012-C (20 Pcs)

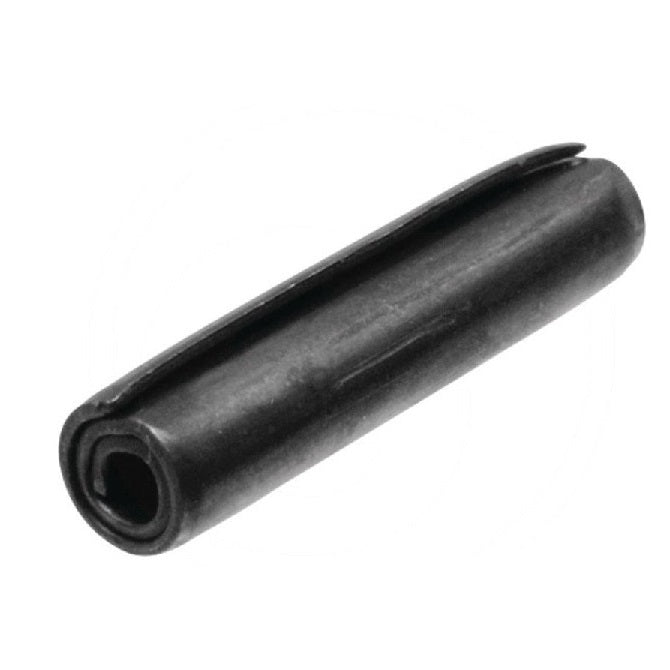

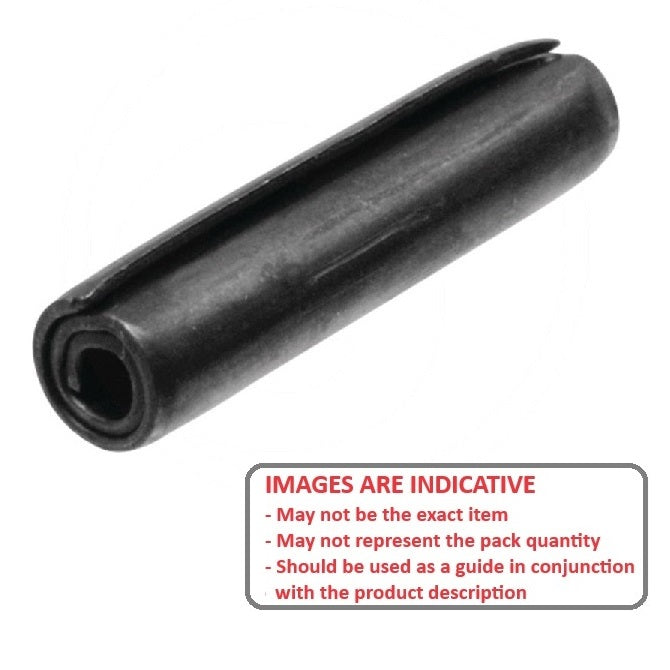

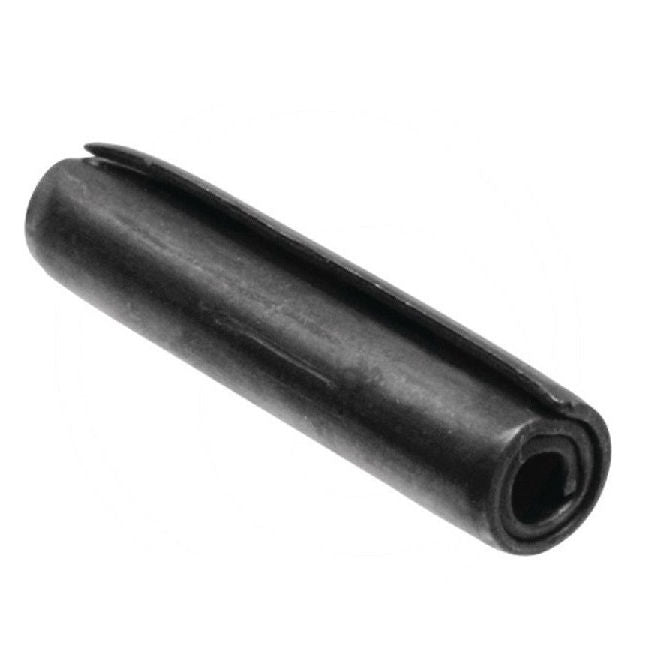

Coiled Pins - 3x12 - 3.00 - 3.10 - High Carbon Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins
Qty: 4 packs (80 pcs) available now
Order 50 or more packs (1000 pcs) for $6.83 AUD per 20
Couldn't load pickup availability
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Steel - Standard Duty
Product Details:Additional stock available from USA subject to Prior Sale = 94
Nominal Hole Diameter: 3.00mm
(3.00mm is 0.118 in.)
High Carbon Steel
- Length: 12.00mm
+/- 0.50
(12.00mm is 0.472 in.)
- Drill Size: 3.00 - 3.10mm
(3.00 - 3.10mm is 0.118 in.)
- Loose Diameter: 3.15 - 3.30mm
- ISO: Standard Duty ISO8750 / ASME B18.8.3M
- Hardness: RC 46-53 (HV 420 to 545)
- Double Shear Strength Min.: 6Kn
Brand: MBA
Country of Origin: US
Alternative Parts Include: SPCM030012, SPCM-030-012, SEP312, SEP3-12, 91612A224, ALTPART, NoCor
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
