B-020G-0038-0030-NFB (Each)

Name: Timing 2mm Pitch Belts - 38 tooth - 76x3 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt - B-020G-0038-0030-NFB
Brand: MBA
SKU: B020G00380030NFB
Price: 9.59 AUD
Availability: BackOrder

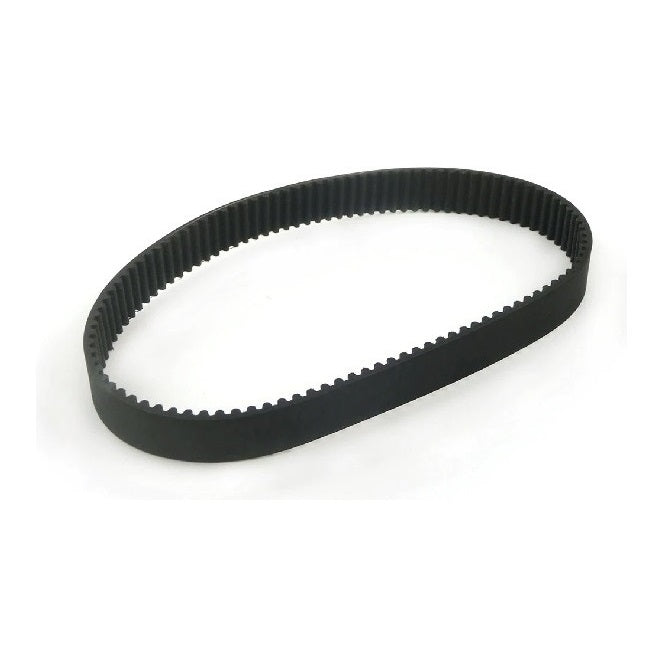

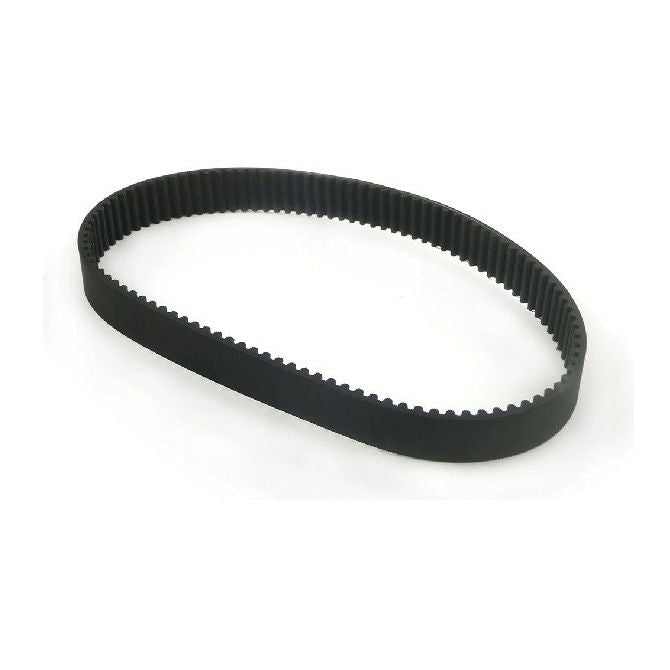

Timing 2mm Pitch Belts - 38 tooth - 76x3 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt

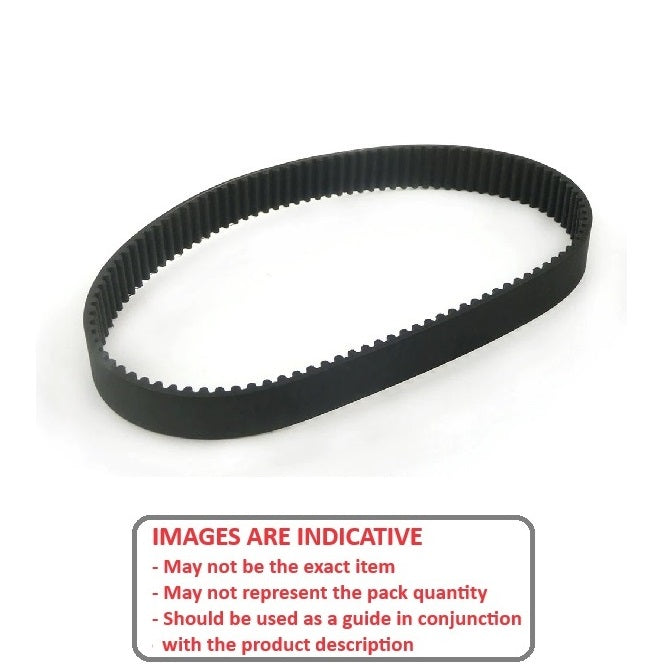

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Belts - Timing 2.000mm Pitch - GT - 3mm Wide

Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
2mm GT Timing Pulleys

Price:

$9.59 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $8.63 AUD

Product Details

Number of Teeth: 38

Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords

Number of Teeth: 38
Length: 76mm
_{(76mm is 2.992 in.)}
Width: 3.0mm
_{(3.0mm is 0.118 in.)}
Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance: Black
Breaking Strength: 258N
Min Temperature: -34Deg C
Max Temperature: 85Deg C

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Gates 2MR-76-03
Gates 76-2P-03
2MR7603
762P03
A6R51M038030

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
