G020B-038-D48-032-048-AB-B

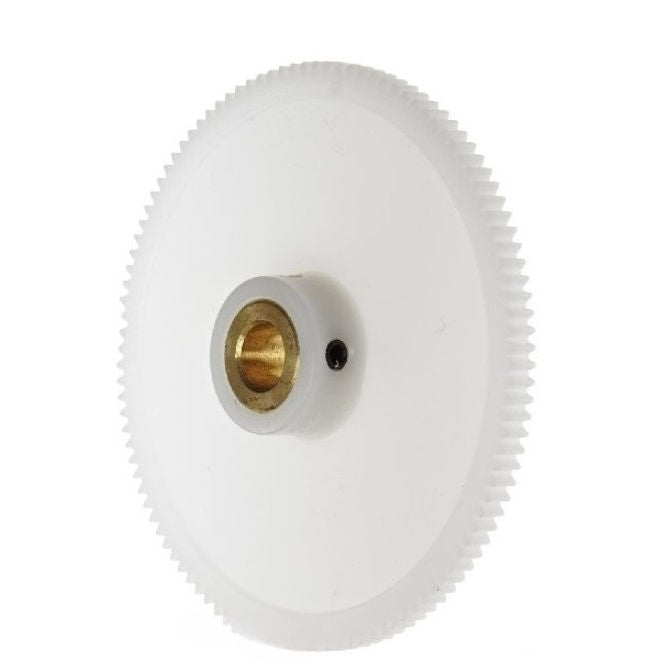

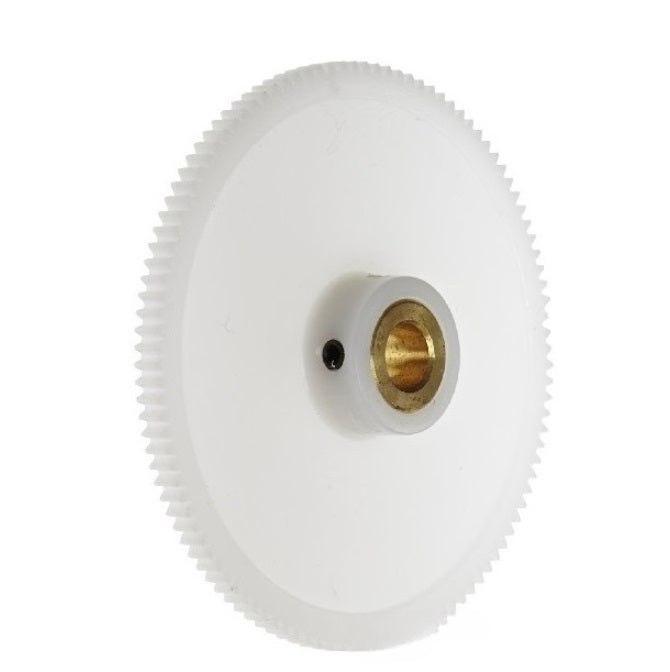

Spur Gears - 38 tooth - 20.12x4.762 mm Hubbed - Acetal - Brass insert Gear

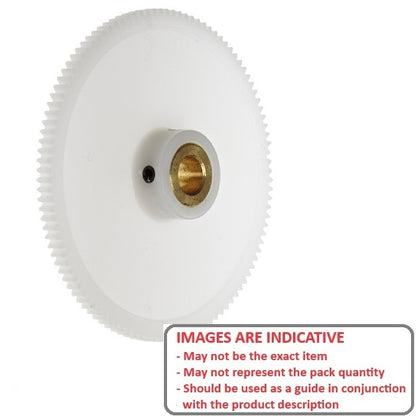

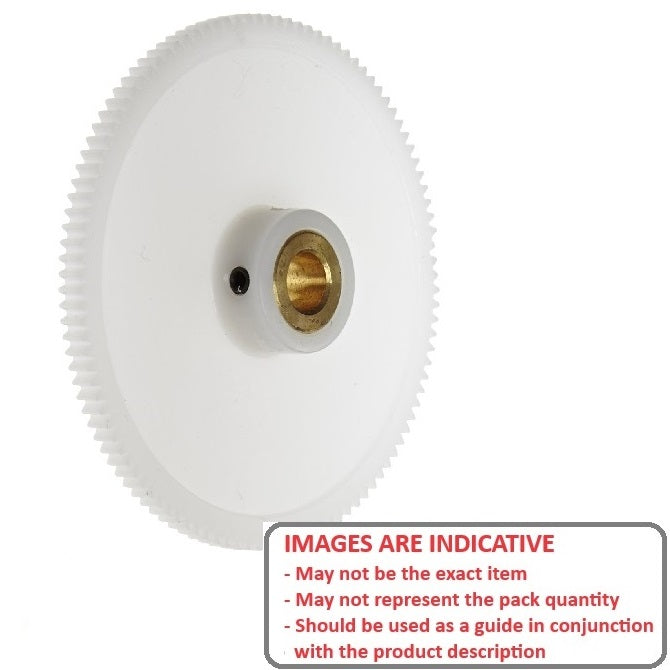

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spur Gears - 38 tooth - 20.12x4.762 mm Hubbed - Acetal - Brass insert Gear
1 3

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Backorder
Order 50 or more for $12.56 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Oct 05, 2025

Base Category: Gears - Spur

Top Level Category: Gears - Spur - Hubbed - 48DP - 20 Degree - Plastic - With Insert

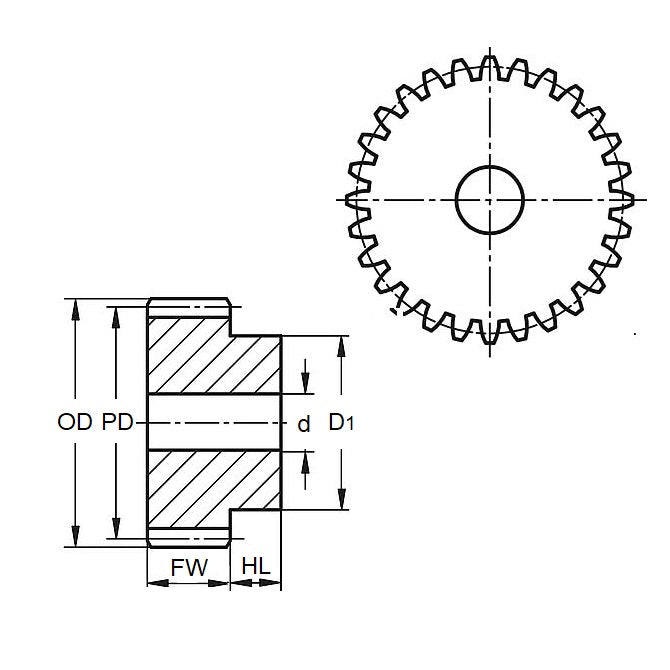

Product Details

Number of Teeth: 38

Acetal - Brass insert
  • Pitch Circle Diameter (PD): 20.12mm
    (20.12mm is 0.792 in.)
  • Bore (d): 4.762mm
    (4.762mm is 0.187 in.)
  • Outside Diameter (OD): 21.166mm
  • Face Width (FW): 3.18mm
  • Type: Hubbed
  • Hub Diameter (D1): 13.89mm
  • Hub Projection (HL): 6.35mm
  • Locking Method: Pin Hub - Set Screw
  • Quality: Commercial - Moulded

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • G020B38D48032048ABB

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
