W0381-T-053-033-W3-CZY (200 Pcs)

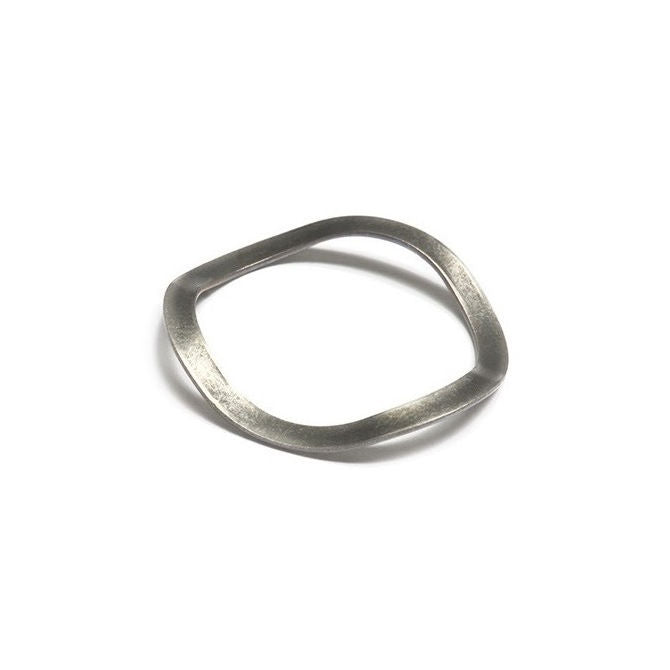

Spring Washers - 38.1x52.37x3.3 mm 3 Wave - Carbon Spring Steel Zinc Plated Washer

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 38.1x52.37x3.3 mm - Carbon Spring Steel Zinc Plated
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Screws
Price:
$576.95 AUD
$692.35 AUD $576.95 AUD
per 200
Backorder
Order 50 or more pack (10000 pcs) for $519.26 AUD per 200
Backorder now! Backorders for more than the stock quantity are expected before Oct 14, 2025

Base Category: Washers - Spring

Top Level Category: Washers - Spring - 3 Wave - Carbon Steel

Product Details


Additional stock available from USA subject to Prior Sale = 2983

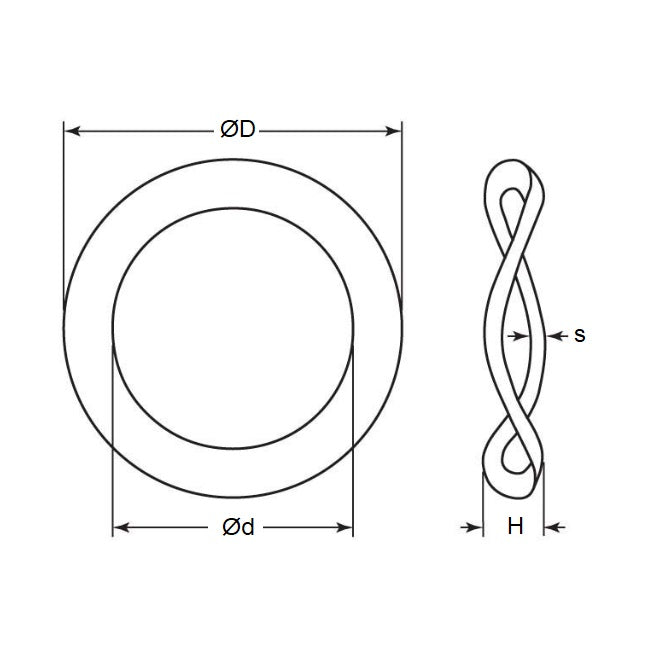

Nominal Inside Diameter (d): 38.10mm
(38.10mm is 1.5 in.)

Carbon Spring Steel Zinc Plated
  • Nominal Outside Diameter (D): 52.37mm
    (52.37mm is 2.062 in.)
  • Nom. Height (H): 3.30mm
    (3.30mm is 0.13 in.)
  • Thickness (s): 0.56mm
  • Type: 3 Wave
  • Nominal Screw Size: M38, 1.1/2

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor WW3-2028-022-ZY
  • W0381T053006W3CZY
  • WW32028022ZY

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
