P-R14040A-KGL

Name: P-R14040A-KGL - Plastic Bearings - 31.75x63.5x12.7 mm - PVDF with Glass Balls
Brand: KMS
SKU: PR14040AKGL
Price: 239.50 AUD
Availability: BackOrder

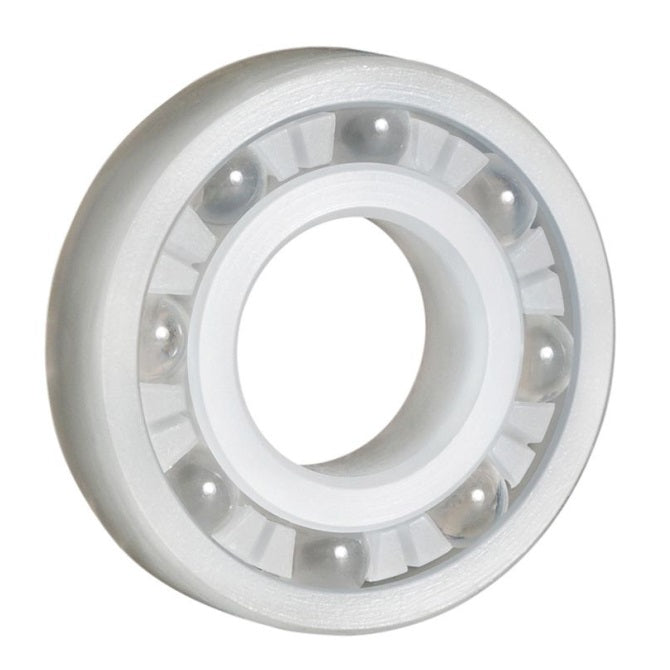

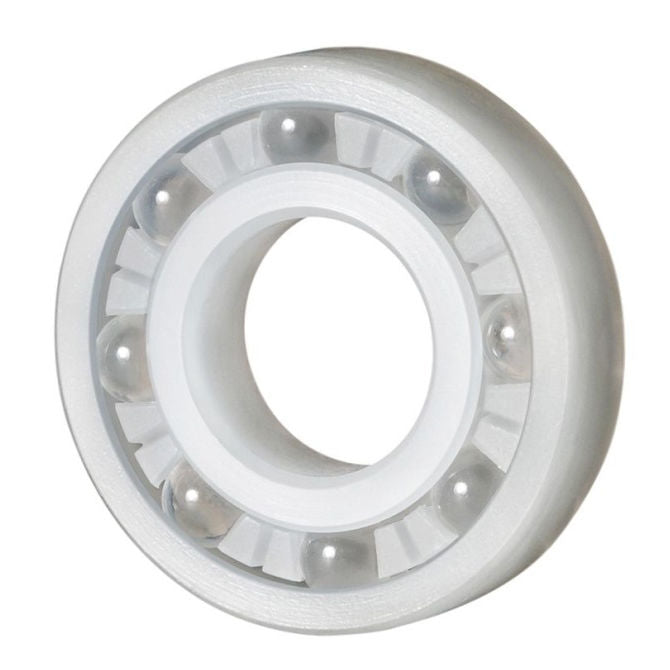

Plastic Bearings - 31.75x63.5x12.7 mm - PVDF with Glass Balls

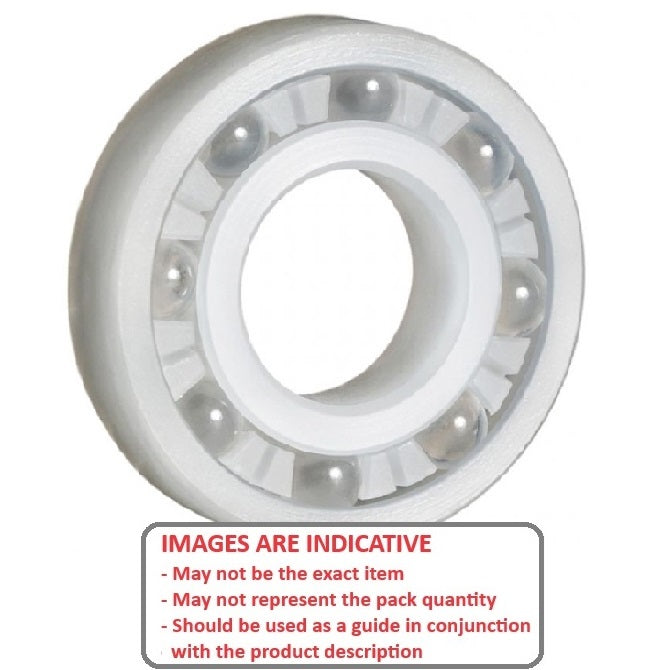

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale

Category: Bearings - Plastic - PVDF - Glass Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$239.50 AUD

~~$287.40 AUD~~ $239.50 AUD

Each
Backorder
Order 50 or more for $215.55 AUD Each

Product Details:

ID (d): 31.750mm
_{+ 0.076 / - 0.000}
_{(31.750mm is 1.25 in.)}

PVDF with Glass Balls

OD (D): 63.500mm
_{+ 0.000 / - 0.102}
_{(63.500mm is 2.5 in.)}
Width (B): 12.700mm
_{+ 0.127 / - 0.000}
_{(12.700mm is 0.5 in.)}
Max RPM in Air: 350
Notes: Unlubricated
Type: Radial
Dynamic Load Rating: 43.0Kg
Static Load Rating: 28.5Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

KMS KR16-1-1/4B-G
R14040A
KR1611/4BG

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
