TMF-603-ARS (Each)
Levelling Bonded Neoprene Mounts - 31.0 to 81.5 Kg 2.032x5.08 mm With Stud
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $32.19 AUD Each
31.0 to 81.5 Kg 2.032x5.08 mm Levelling Bonded Neoprene Mounts - - Sold per Each:
Base Category: Mounts - Levelling Bonded Neoprene
Top Level Category: Mounts - Levelling Bonded Neoprene - With Stud

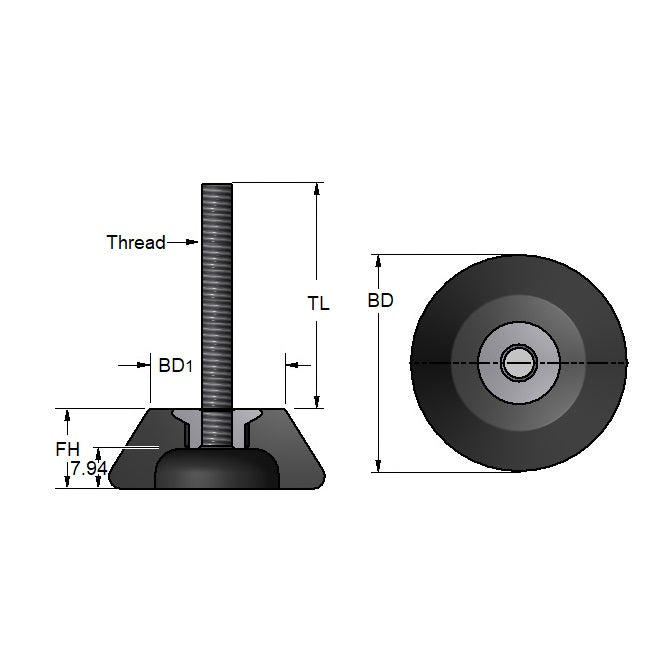

Product Details
Load Capacity: 31.0 to 81.5Kg- Load Capacity: 31.0 to 81.5Kg
- Min Load Deflection: 2.032mm
(2.032mm is 0.08 in.)
- Max Load Deflection: 5.080mm
(5.080mm is 0.2 in.)
- Thread: 1/2-13
- Thread Length: 63.5mm
- Base Diameter: 55.6mm
- Foot Height: 20.6mm
- Top Diameter: 34.9mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
TMF603ARS, TMF603
