P-6006A-AGL

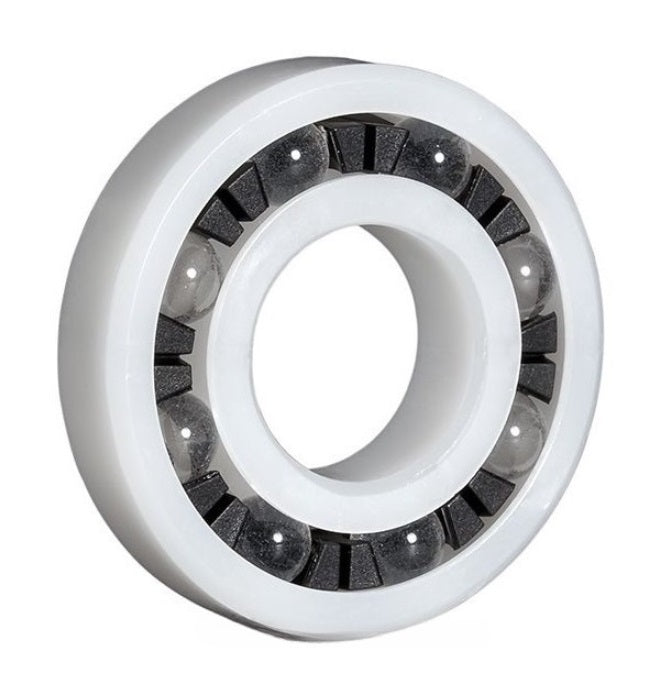

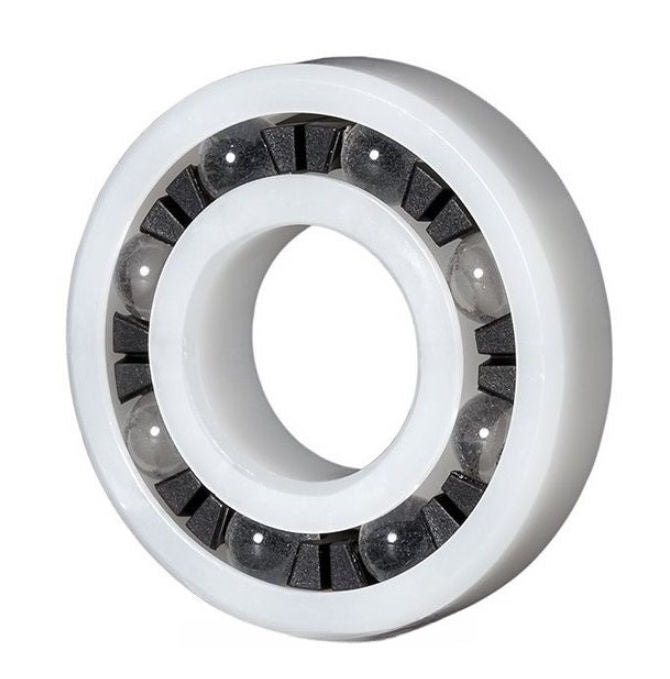

Plastic Bearings - 30x55x9 mm - Acetal with Glass Balls

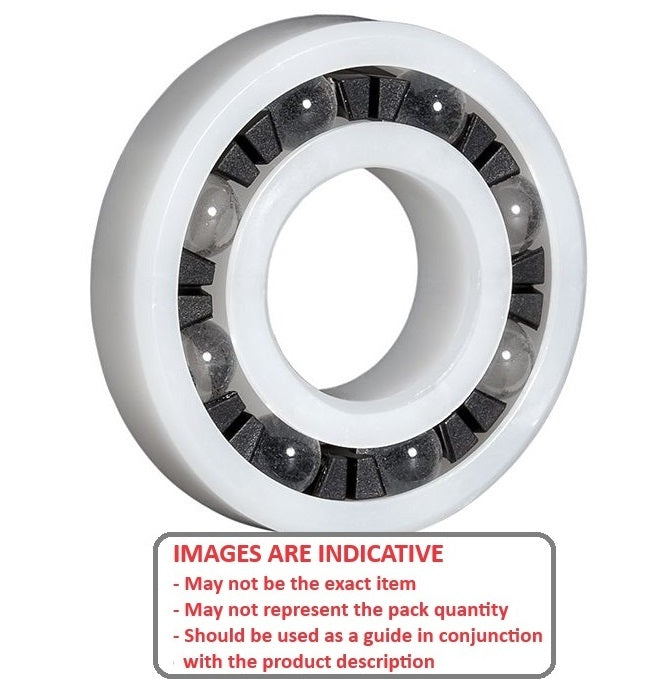

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Plastic Bearings - 30x55x9 mm - Acetal with Glass Balls
1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting
Price:
$76.77 AUD
$92.13 AUD $76.77 AUD
Each
Backorder
Order 50 or more for $69.09 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Aug 24, 2025

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal - Single Row - Glass Balls

Product Details:

ID (d): 30.000mm
+ 0.102 / - 0.000
(30.000mm is 1.181 in.)

Acetal with Glass Balls
  • OD (D): 55.000mm
    + 0.000 / - 0.152
    (55.000mm is 2.165 in.)
  • Width (B): 9.000mm
    + 0.127 / - 0.000
    (9.000mm is 0.354 in.)
  • Max RPM in Air: 729
  • Notes: Unlubricated
  • Type: Radial
  • Dynamic Load Rating: 41.7Kg
  • Static Load Rating: 27.7Kg

Brand: KMS
Country of Origin: US

Alternative Parts Include: PB16006-GL, PB16006GL, A16006G, A16006-G, AGL6006A, 6006A, KMS, RINO

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
