W0300-FP-042-0030-CL (20 Pcs)

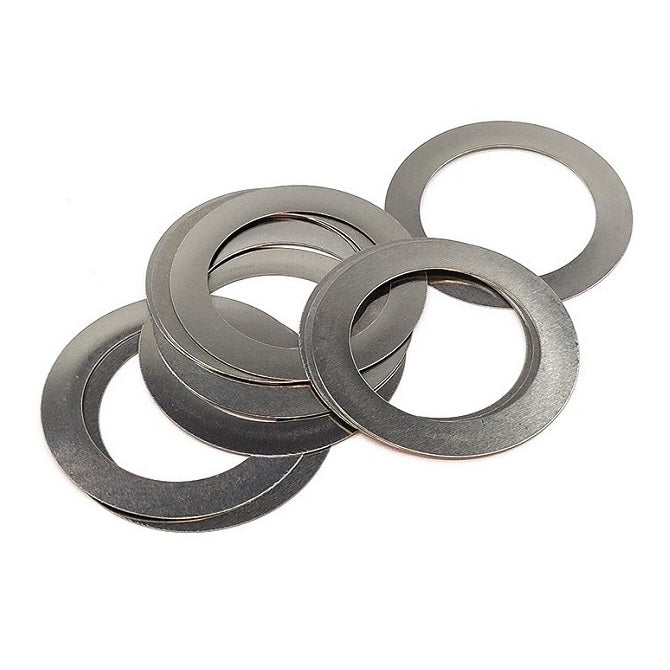

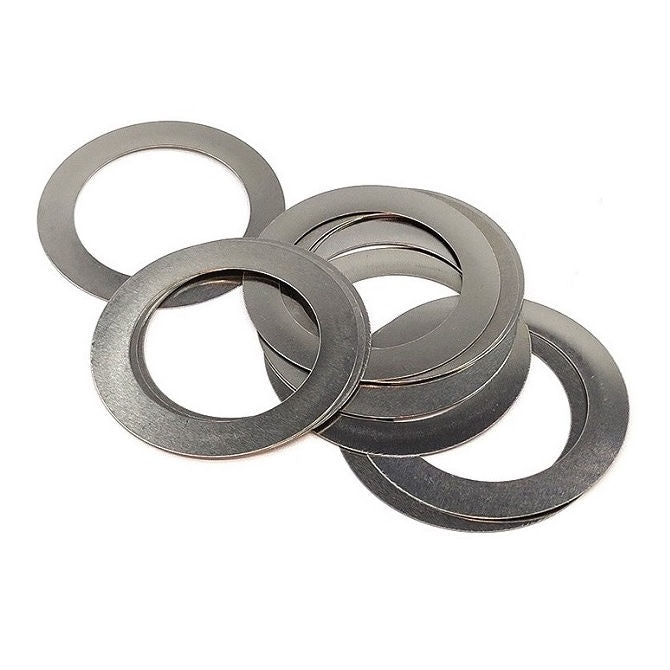

Flat Washers - 30x42x0.3 mm Precision Shim - Carbon Spring Steel Self Finish Washer

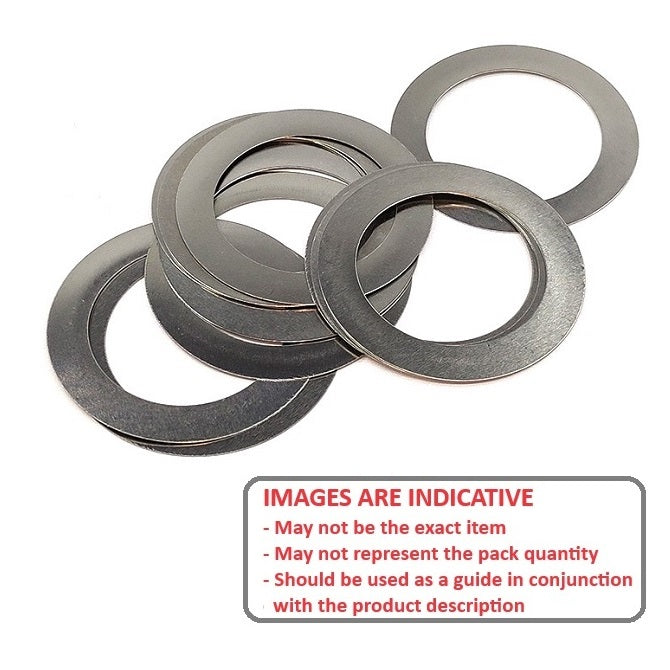

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flat Washers - 30x42x0.3 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Price:
$5.77 AUD
$5.77 AUD
per 20
Qty: 21 packs (420 pcs) available now
Order 50 or more packs (1000 pcs) for $5.19 AUD per 20
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 22, 2025

Base Category: Washers - Flat

Top Level Category: Washers - Flat - Precision Shim - Carbon Spring Steel

Product Details


Additional stock available from USA subject to Prior Sale = 2277

Nominal Inside Diameter (d): 30.000mm
+ 0.065 / + 0.275
(30.000mm is 1.181 in.)

Carbon Spring Steel Self Finish
  • Nominal Outside Diameter (D): 42.000mm
    - 0.080 / - 0.330
    (42.000mm is 1.654 in.)
  • Thickness (T): 0.300mm
    + 0.000 / - 0.050
    (0.300mm is 0.012 in.)
  • Other: Rockwell B 80 Min
  • Grade: Precision
  • Min. Actual ID (Ref): 30.065mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 98055A323
  • ExaktKey S77010
  • NoCor S77010
  • Springmaster S77010
  • XOSpring S77010
  • W0300FP042003C
  • W0300FP042003CL
  • P30x42x0.3
  • CPS30X42X0.3

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
