P-UC206-19-AS6 (PK-5)

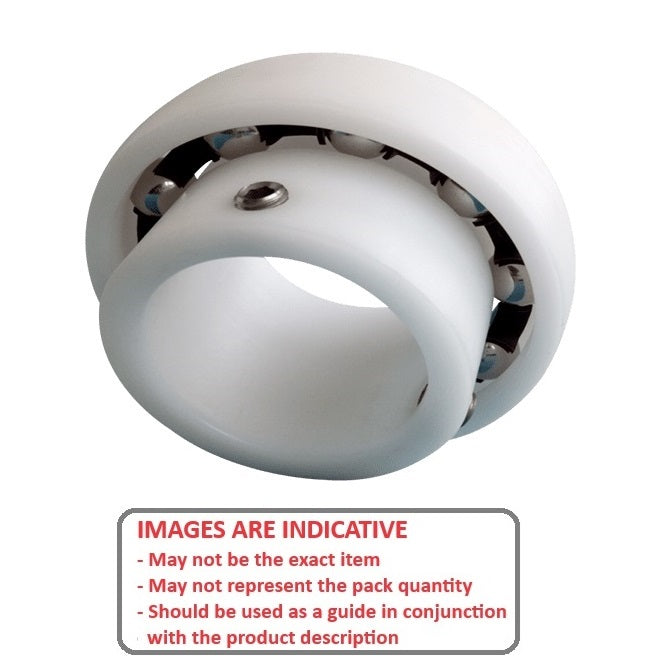

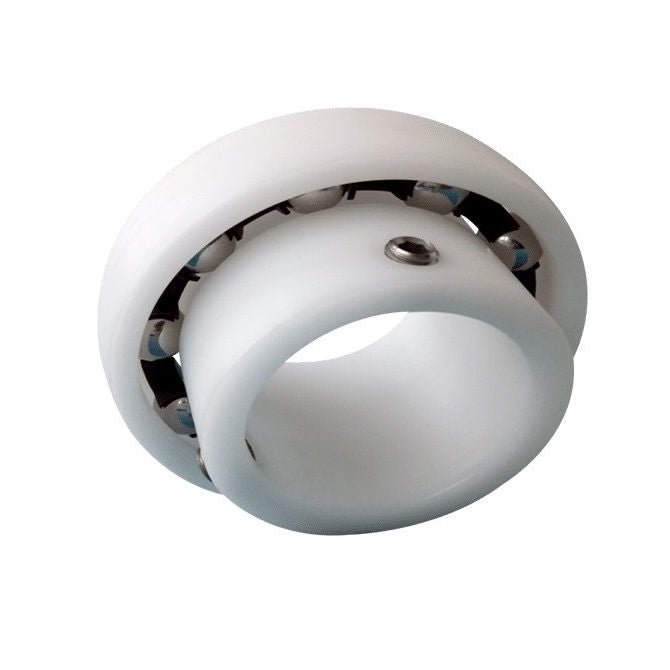

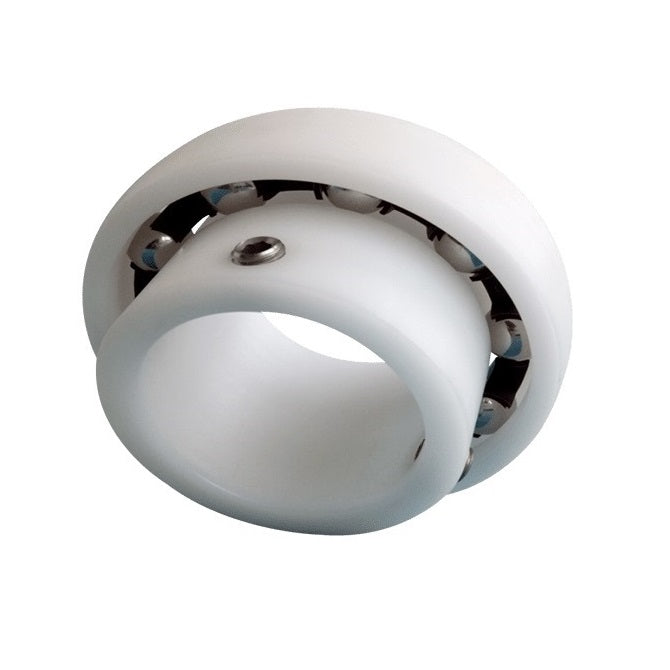

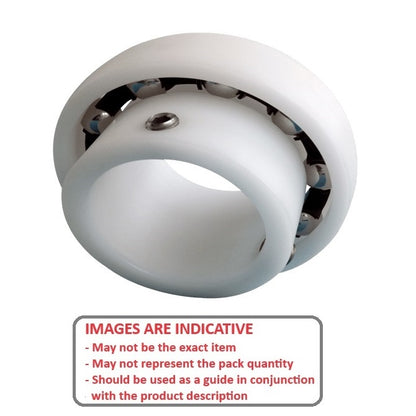

Spherical OD Bearings - 30.162x62x38.1 mm Suits Plastic Housings - Acetal with Stainless 316 Balls Bearing
KMS
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 5 (250 pcs)
for $656.96 AUD per 5 pack
1-3/16x1-1/2 inch Bearing - 30.162x62x38.1 mm Spherical OD Bearings - Acetal with Stainless 316 Balls - Sold per pack of 5:
Base Category: Bearings - Spherical OD
Top Level Category: Bearings - Spherical OD - Suits Plastic Housings - Acetal - Stainless Balls

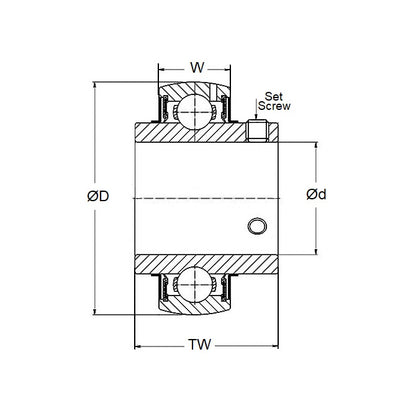

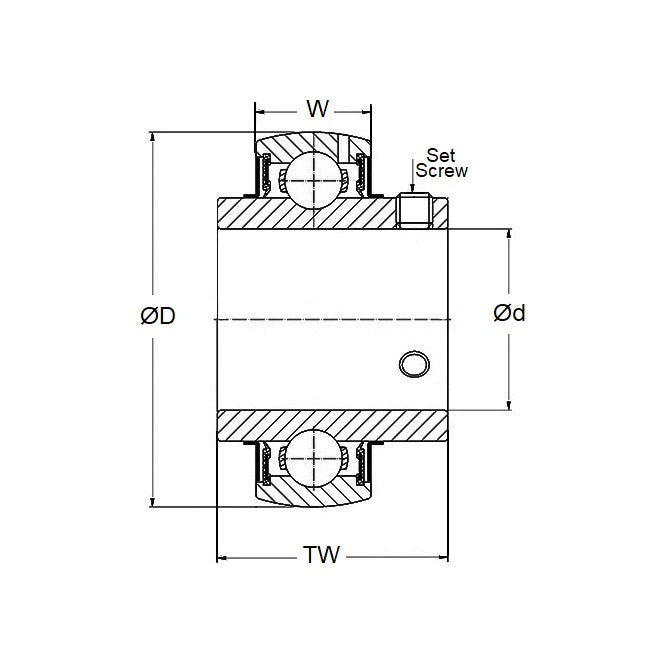

Product Details
Inside Diameter: 30.162mm(30.162mm is 1.187 in.)
Acetal with Stainless 316 Balls
- Inside Diameter: 30.162mm
(30.162mm is 1.187 in.)
- Outside Diameter: 62.000mm
(62.000mm is 2.441 in.)
- Bearing Width: 38.100mm
(38.100mm is 1.5 in.)
- Suits Housing: P206PE / F206PE / FL206PE / FB206PE
- Type: Single Row Ball
- Max RPM: 840
- Load Capacity (Dynamic): 34.8Kg
- Load Capacity (Static): 23.2Kg
Brand: KMS
Country of Origin: US
Product Compliance and Data
Similar to
- KMS AIB-1-3-16-6
- KMS AIB206-1-3/16-6
- AS6UC20619
- AIB13166
- AIB20613/166
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PUC20619AS6, PUC206
