RPO-039-041-C (10 Pcs)

Push On Retaining Rings - 3.86x4.06x10.08 mm - Carbon Steel Ring

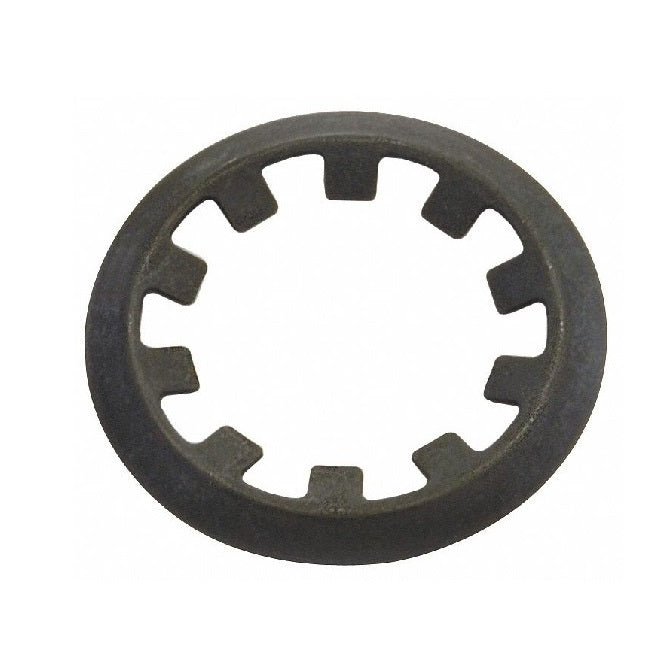

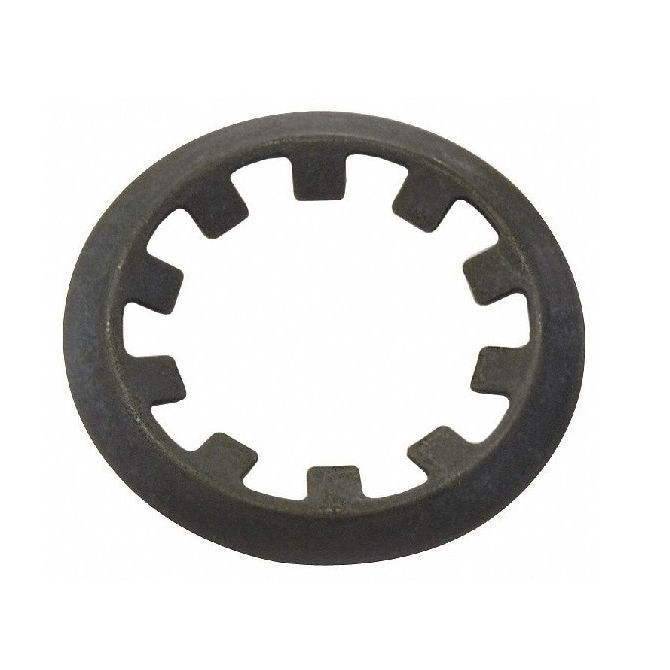

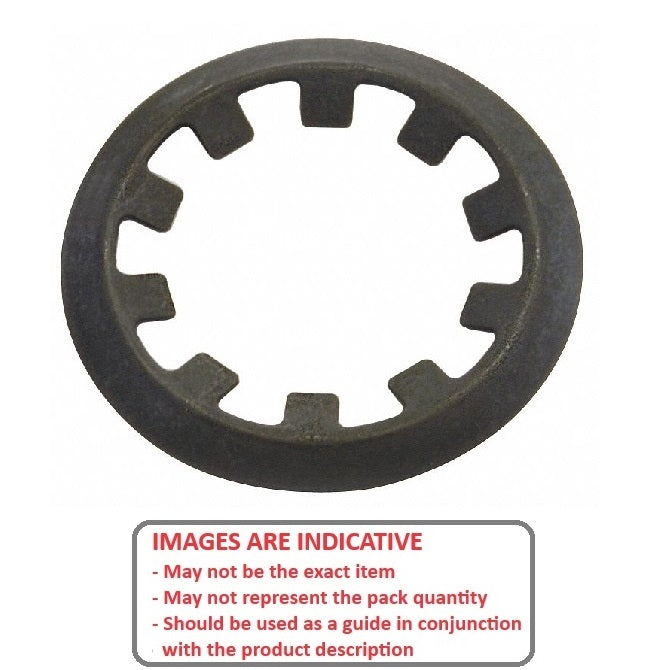

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Push On Retaining Rings - 3.86x4.06x10.08 mm - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$3.41 AUD
$3.41 AUD
per 10
Qty: 16 packs (160 pcs) available now
Order 50 or more packs (500 pcs) for $3.07 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 23, 2025

Base Category: Retaining Rings - Push On

Top Level Category: Retaining Rings - Push On - Carbon Steel

Product Details


Additional stock available from USA subject to Prior Sale = 5086

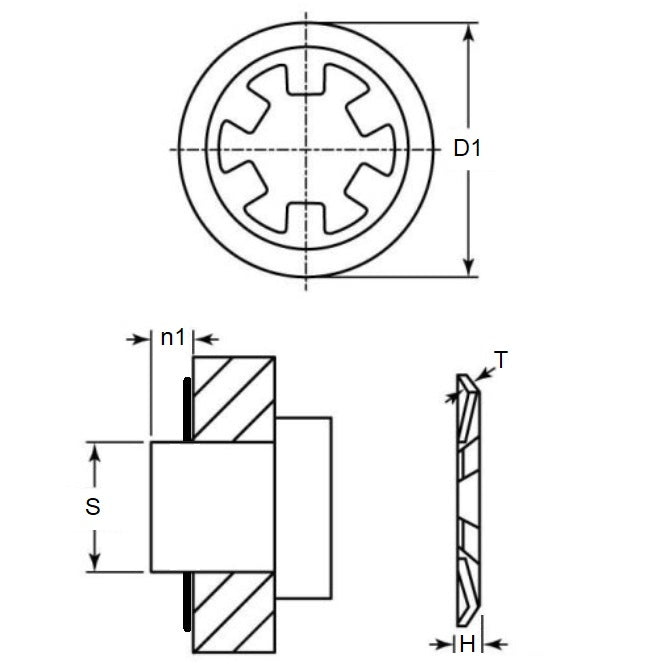

Min shaft size (s1): 3.86mm
(3.86mm is 0.152 in.)

Carbon Steel
  • Max Shaft Size (s2): 4.06mm
    (4.06mm is 0.16 in.)
  • Outside diameter (D1): 10.08mm
    (10.08mm is 0.397 in.)
  • Min shaft extension (n1): 1.47mm
  • Height (H) Max.: 1.09mm
  • Material Thickness (t): 0.25mm
  • Approx. Thrust Load: 20kg

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Waldes 5115-015
  • ALTPART
  • 98430A119
  • NoCor TX-015
  • Rotor Clip TX-015
  • 5115015
  • TX015
  • N14650015
  • N1465015
  • N1465-015
  • N1465-0015APP
  • N14650015APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
