AR212RS (PK-4)

Nuts Leadscrew - 9.525 mm - 12 - 1 Imperial - Bronze

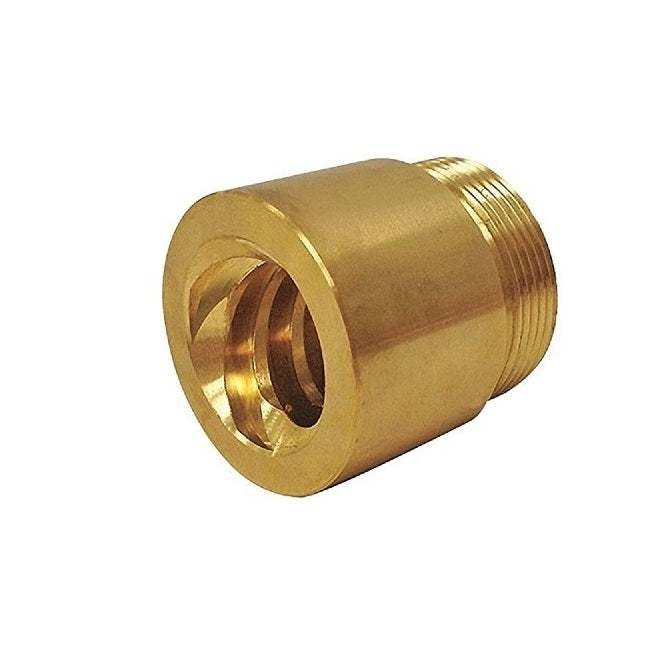

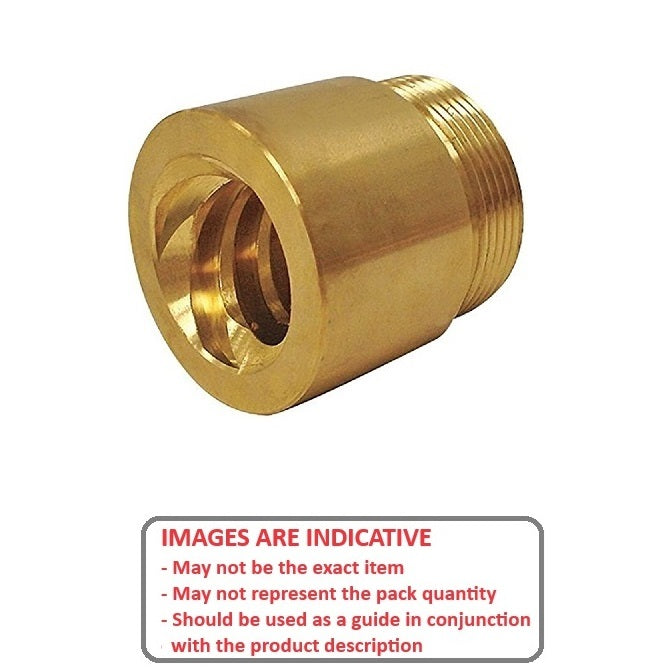

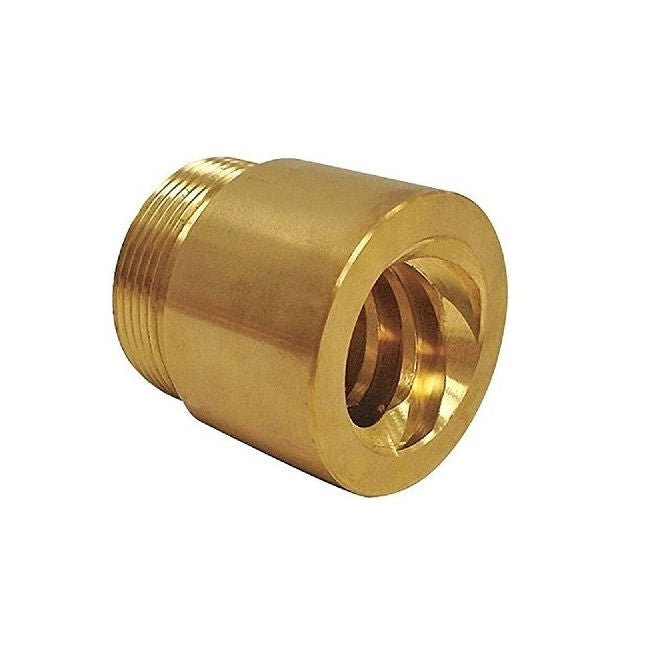

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Nuts Leadscrew - 9.525 mm - 12 - 1 - Bronze
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$884.32 AUD
$884.32 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more pack (200 pcs)
for $795.89 AUD per 4
Backorder now! Backorders are expected before May 09, 2026

Base Category: Leadscrew - Nuts

Top Level Category: Leadscrew - Nuts - Imperial - Acme - Bronze

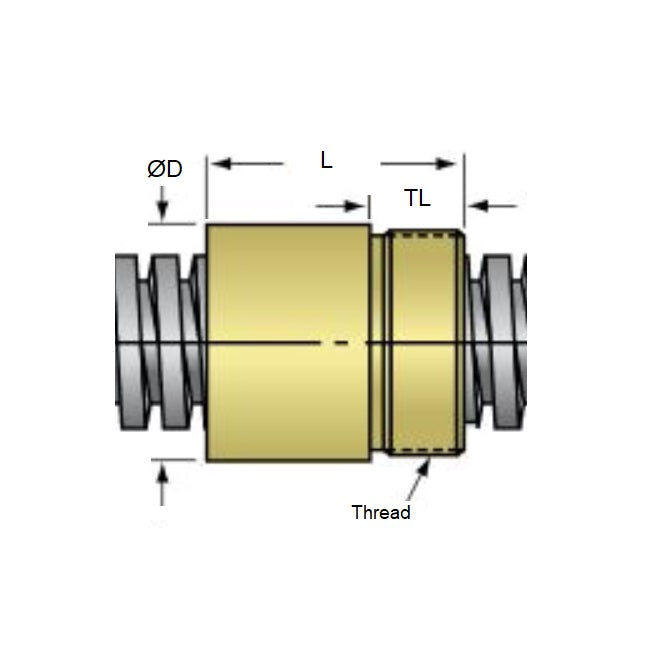

Product Details

Screw Outside Diameter: 9.525mm
(9.525mm is 0.375 in.)

Bronze
  • Screw Outside Diameter: 9.525mm
    (9.525mm is 0.375 in.)
  • Number of Threads Per Inch: 12
  • Number of Starts: 1
  • Lead: 2.1167mm
  • External Nut Mounting Thread: 9/16-18
  • Direction: Left Hand
  • Overall Length: 15.75mm
  • Thread Length: 9.65mm
  • Nut Diameter: 21.59mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Reid Tool® AR-212
  • AR212

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
