PSP-035-026-C (PK-50)

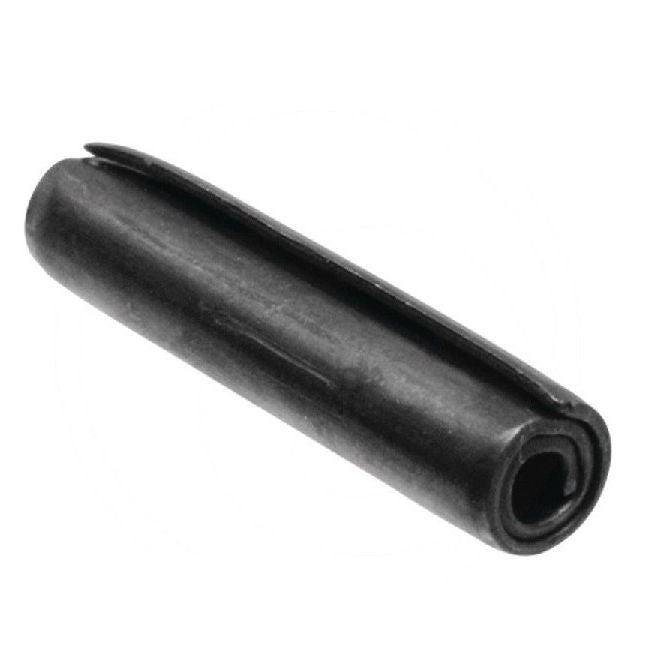

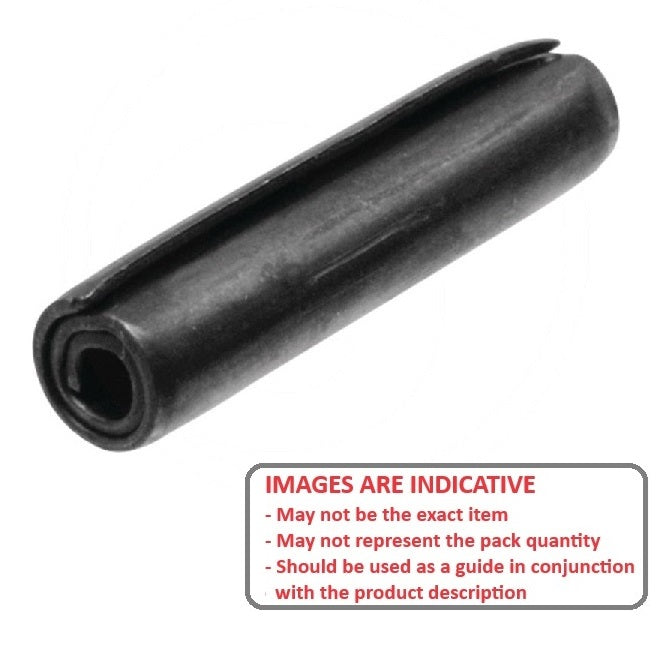

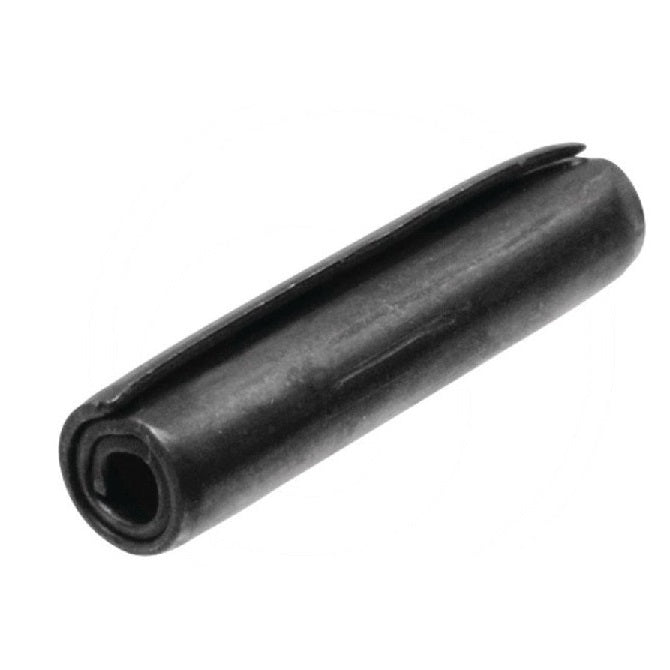

Coiled Pins - 3.5x26 - 3.50 - 3.62 - High Carbon Steel Pin
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins
Couldn't load pickup availability
3.5x26 - 3.50 - 3.62 Coiled Pins - High Carbon Steel - Sold per pack of 50:
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Steel - Standard Duty
Product Details
Deleted Item. Available while stocks last.
Nominal Hole Diameter: 3.50mm
(3.50mm is 0.138 in.)
High Carbon Steel
- Nominal Hole Diameter: 3.50mm
(3.50mm is 0.138 in.)
- Length: 26.00mm
+/- 0.50
(26.00mm is 1.024 in.)
- Drill Size: 3.50 - 3.62mm
(3.50 - 3.62mm is 0.138 in.)
- Loose Diameter: 3.67 - 3.84mm
- ISO: Standard Duty ISO8750 / ASME B18.8.3M
- Hardness: RC 46-53 (HV 420 to 545)
- Double Shear Strength Min.: 7Kn
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- SEP3526
- SEP3.5-26
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PSP035026C, PSP035
