CC-034-040-C (PK-10)
Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 10 (500 pcs)
for $1.43 AUD per 10 pack
Couldn't load pickup availability
3.43x3.96x0.38 mm Crescent Retaining Rings - Carbon Spring Steel Self Finish - Sold per pack of 10:
Base Category: Retaining Rings - Crescent
Top Level Category: Retaining Rings - Crescent
Product Details

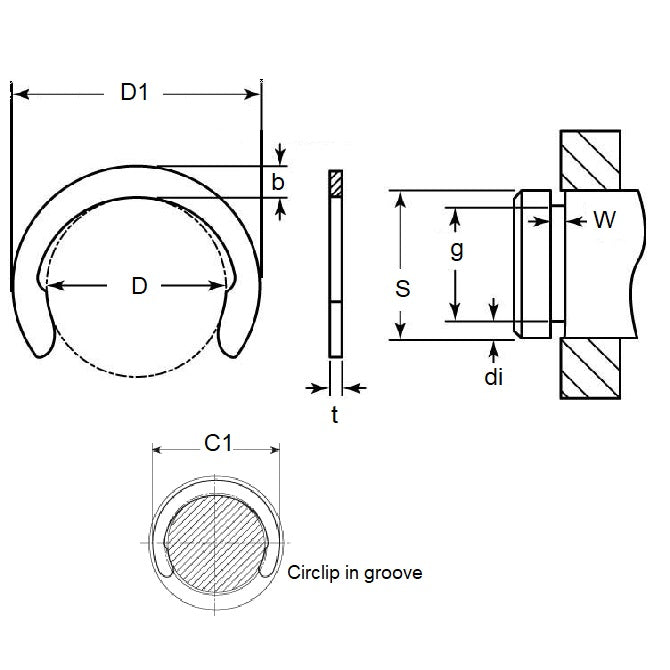

Groove Diameter (G): 3.43mm(3.43mm is 0.135 in.)
Carbon Spring Steel Self Finish
- Groove Diameter (G): 3.43mm
(3.43mm is 0.135 in.)
- Shaft Diameter (S): 3.96mm
(3.96mm is 0.156 in.)
- Thickness (t): 0.38mm
(0.38mm is 0.015 in.)
- Clip OD in groove (C1): 5.59mm
- Clip OD Loose (D1): 5.21mm
- Groove Width (W): 0.46
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Military 16632-015
- Waldes® 5103-015
- Ellison® 9103-015
- NoCor® C-015
- Rotor Clip® C-015
- Huyett® C-015/B
- C015
- N1800015
- N1800-0015APP
- N18000015APP
- N1800-015
- 16632015
- 9103015
- 5103015
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CC034040C, CC034
