PSP-032-006H-C (PK-50)

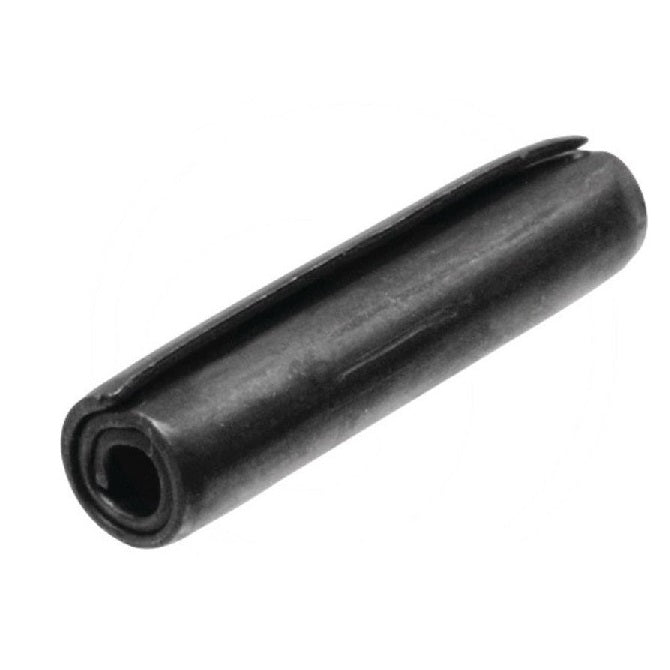

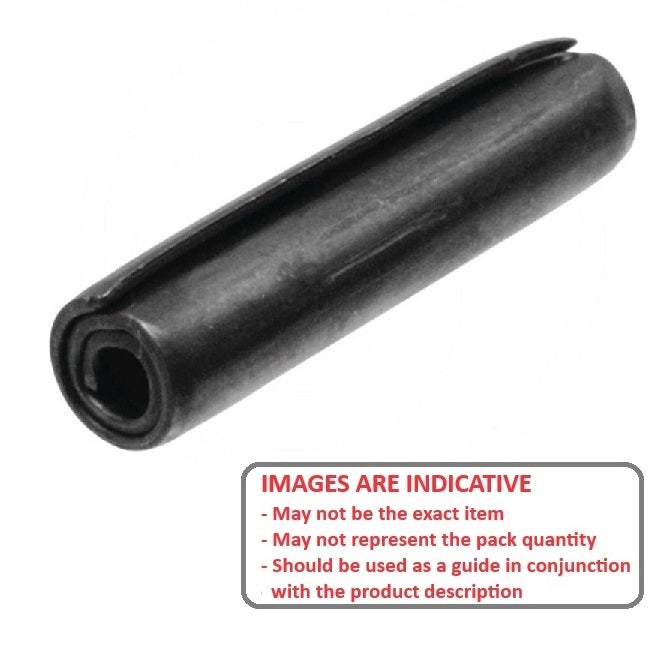

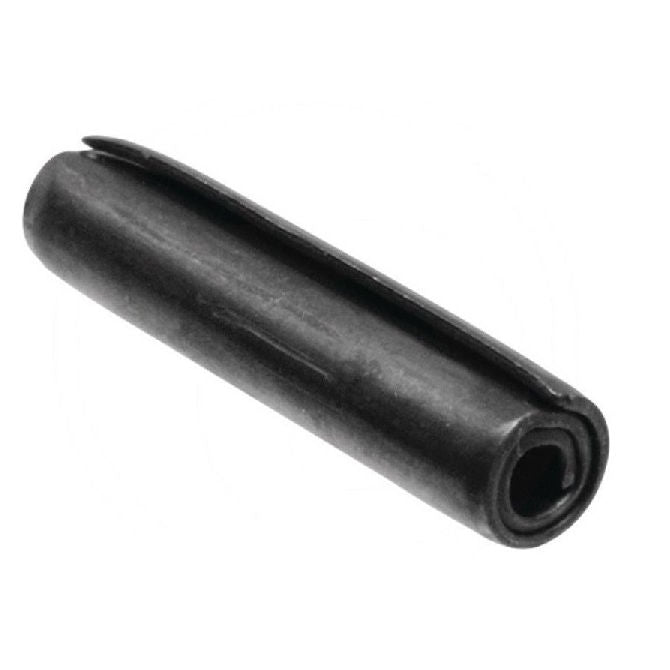

Coiled Pins - 3.18x6.35 - 3.18 - 3.28 - High Carbon Steel Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins
Order 50 or more packs of 50 (2500 pcs)
for $28.51 AUD per 50 pack
1/8x1/4 inch Pin - 3.18x6.35 - 3.18 - 3.28 Coiled Pins - High Carbon Steel - Sold per pack of 50:
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Steel - Heavy Duty
Product Details
Additional stock available from USA subject to Prior Sale = 28759
Nominal Hole Diameter: 3.18mm
(3.18mm is 0.125 in.)
High Carbon Steel
- Nominal Hole Diameter: 3.18mm
(3.18mm is 0.125 in.)
- Length: 6.35mm
+/- 0.25
(6.35mm is 0.25 in.)
- Drill Size: 3.18 - 3.28mm
(3.18 - 3.28mm is 0.125 in.)
- Loose Diameter: 3.30 - 3.45mm
- ISO: Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness: RC 46-53 (HV 420 to 545)
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 95755A210
- Huyett® SPC-125-0250H
- NoCor® SPC-125-0250H
- SPC1250250H
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PSP032006HC, PSP032
