RP032-0111-C (PK-100)

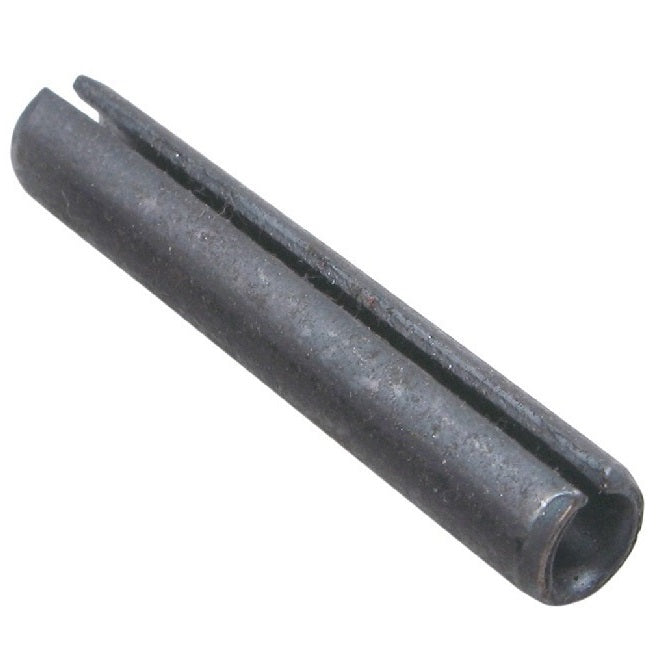

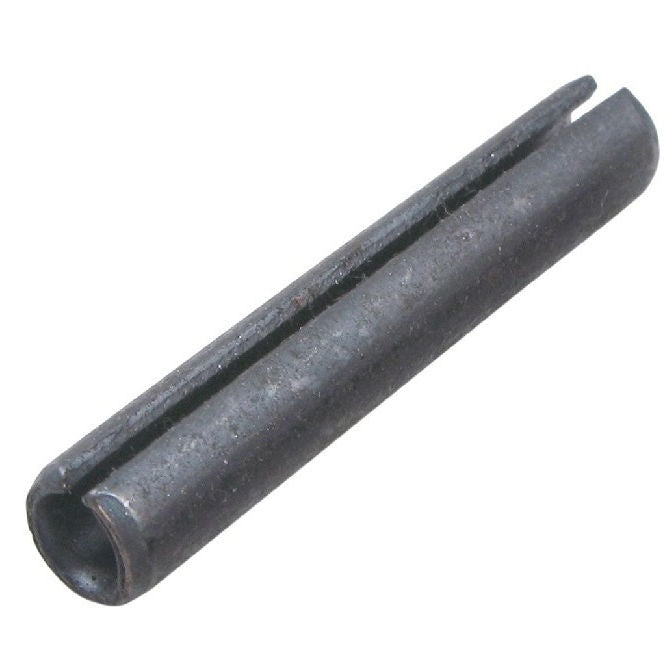

Roll Pins - 3.18x11.1x3.5 mm Carbon Steel - Carbon Spring Steel Self Finish Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Order 50 or more packs of 100 (5000 pcs)
for $18.13 AUD per 100 pack
1/8x7/16 inch Pin - 3.18x11.1x3.5 mm Roll Pins - Carbon Spring Steel Self Finish - Sold per pack of 100:
Base Category: Pins - Roll
Top Level Category: Pins - Roll - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 5605
Nominal Diameter (D): 3.18mm
(3.18mm is 0.125 in.)
Carbon Spring Steel Self Finish
- Nominal Diameter (D): 3.18mm
(3.18mm is 0.125 in.)
- Length (L): 11.10mm
(11.10mm is 0.437 in.)
- Free Diameter: 3.50mm
(3.50mm is 0.138 in.)
- Thickness (S): 0.71mm
- Chamfer Length (cL): 0.20-1.12mm
- Chamfer Diameter (cD): 3.1mm
- Standard: DIN1481 / ISO8752
- Type: Standard
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Brighton Best® 801064
- ALTPART
- 98296A960
- Huyett® SPP-125-0437
- NoCor® SPP-125-0437
- SPP1250437
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RP0320111C, RP0320111
