SR144A-D650-CSN-ZS-TO (Each)

Dental Applications Bearings - 3.175 6.350 / 5.979 2.778 mm - Stainless Steel AISI 440C - Dental Special Bearing

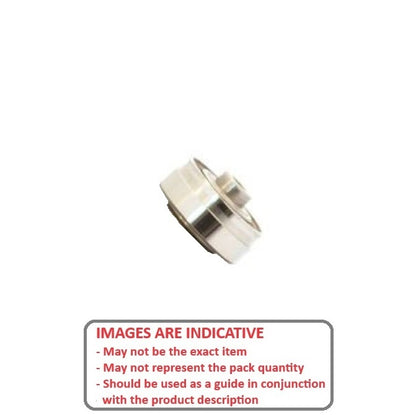

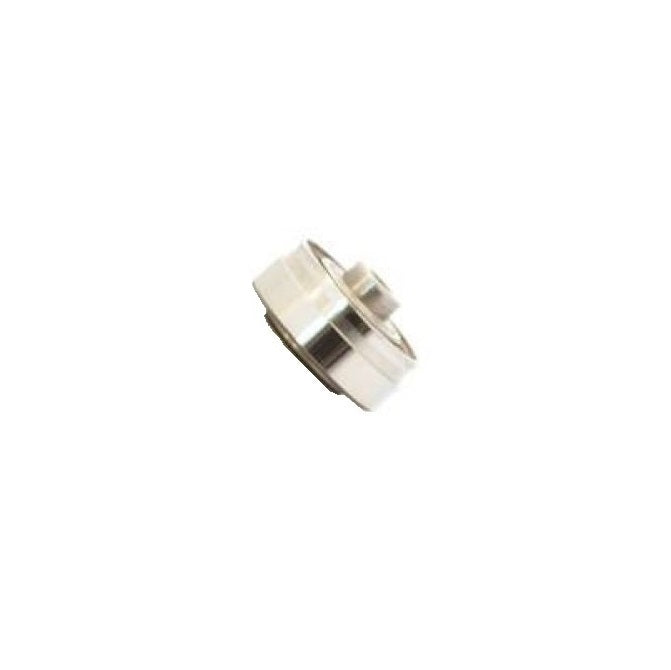

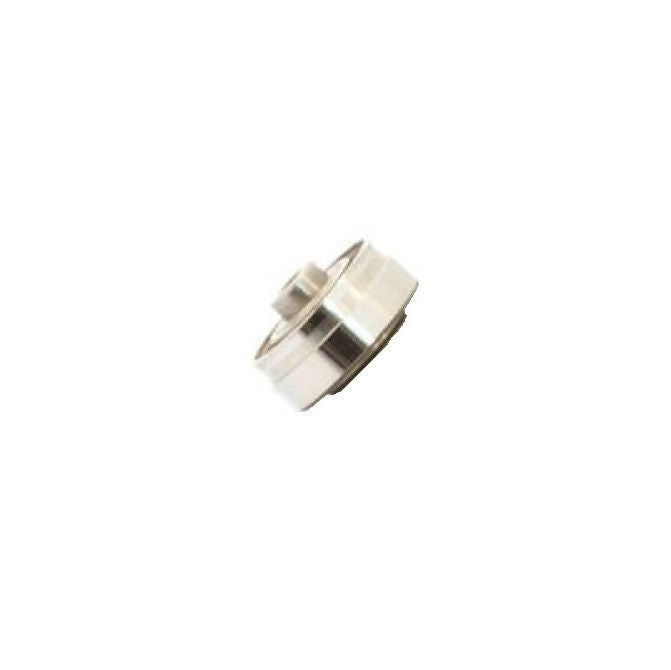

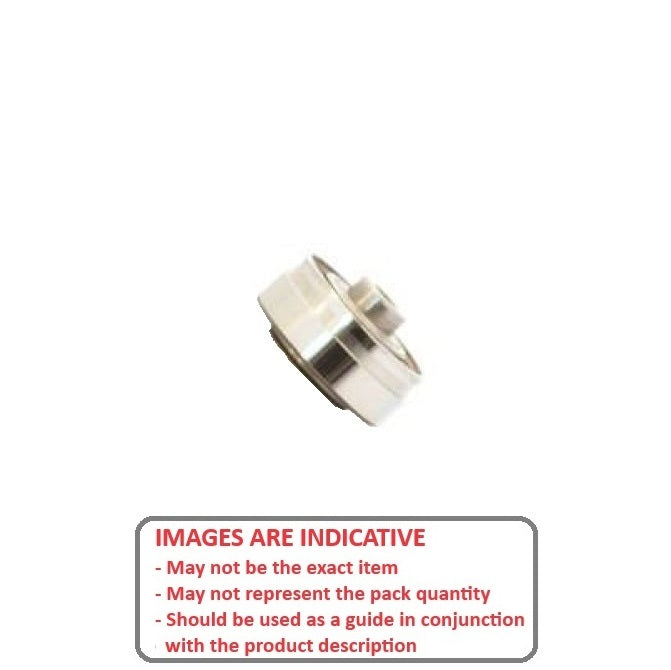

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dental Applications Bearings - 3.175 6.350 / 5.979 - 3.200 / 4.200 - Stainless Steel AISI 440C - Dental Special Bearing
1 2

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Dental Replacement Parts _ Turbines, Gears, O-Rings etc
Price:
$44.51 AUD
$44.51 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now

Order 50 or more
for $40.06 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 16, 2026

Base Category: Bearings - Dental Applications

Top Level Category: Bearings - Dental Applications

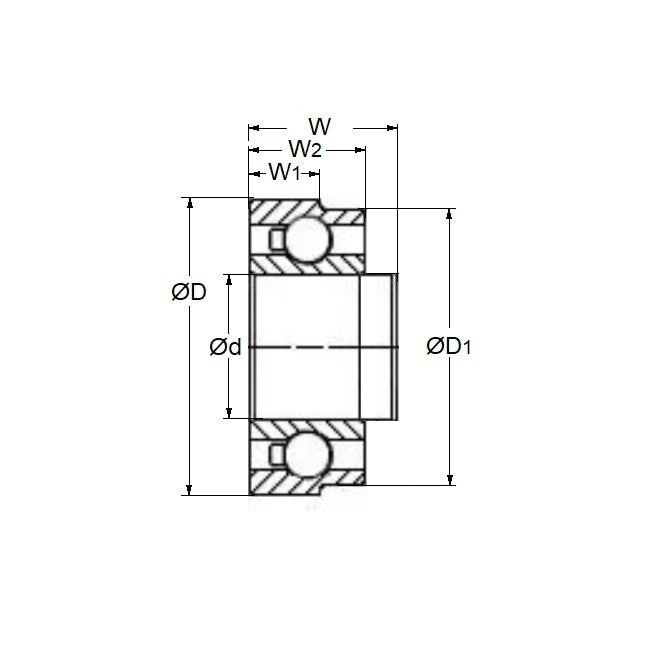

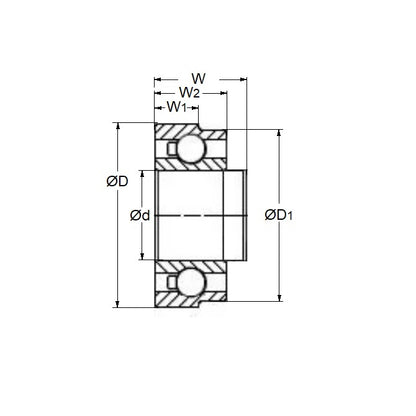

Product Details


Deleted Item. Available while stocks last.

ID (d): 3.175mm
+ 0.000 / - 0.004
(3.175mm is 0.125 in.)

Stainless Steel AISI 440C - Dental Special
  • ID (d): 3.175mm
    + 0.000 / - 0.004
    (3.175mm is 0.125 in.)
  • O.D. (D): 6.350 / 5.979mm
    + 0.000 / - 0.005
    (6.350 / 5.979mm is 0.25 in.)
  • Width (B): 2.778mm
    + 0.000 / - 0.040
    (2.778mm is 0.109 in.)
  • Inner Ring Width (Bn): 3.778 (Special)mm
  • Precision Grade: Abec 7
  • Closure Type: ZS
  • Bearing Type: D650 (Extended Shroud)
  • Lubricant: Oil - Undisclosed
  • Additional Information: Outer ring is stepped from 6.35mm to 5.979mm. Inner ring is wider than outer ring.

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • SR144AD650CSNTOZS
  • R144AD650BASIC

Used for

  • Dental Handpiece Parts
  • KaVo® - 637B Mini Lux 3 BellaTorque - Bearing for Cap End
  • KaVo® - 650 - Bearing for Rotor Cartridge
  • KaVo® - 650A FG - Bearing for Chuck End
  • KaVo® - 650B PB - 650C PB - Bearing for Chuck End
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
