DP032-016-CH-1 (PK-20)

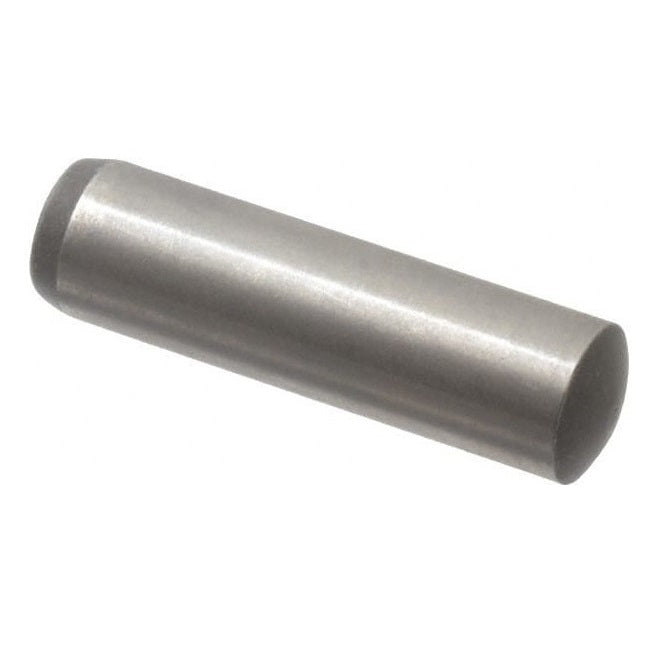

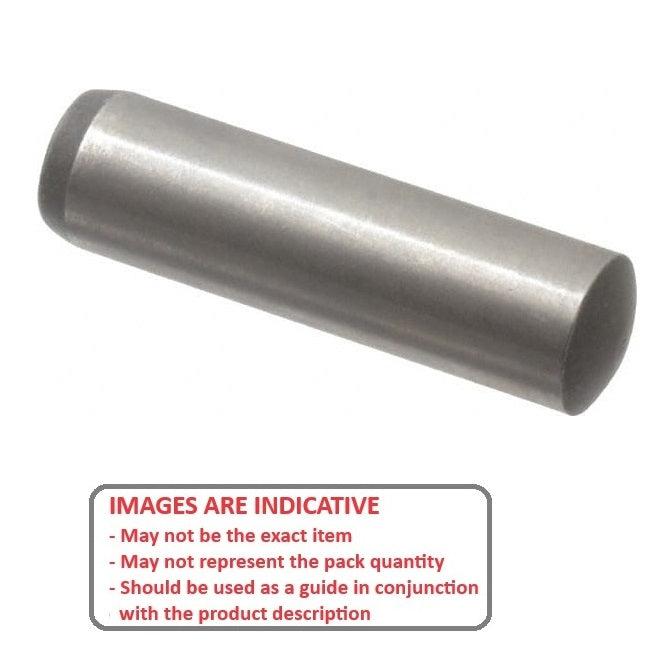

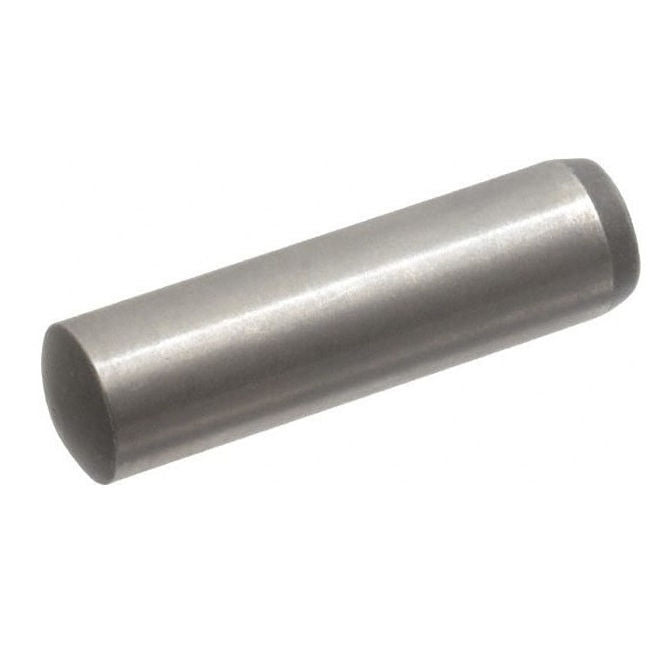

Dowel Pins - 3.175x15.88 Standard - Steel Alloy - Heat Treated and Ground Rc 58-62 Pin
NoCor
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Order 50 or more packs of 20 (1000 pcs)
for $5.85 AUD per 20 pack
Couldn't load pickup availability
1/8x5/8x5/8 inch Pin - 3.175x15.88 Dowel Pins - Steel Alloy - Heat Treated and Ground Rc 58-62 - Sold per pack of 20:
Base Category: Pins - Dowel
Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 92307
Diameter (D): 3.175mm
+ 0.004 / + 0.012
(3.175mm is 0.125 in.)
Steel Alloy - Heat Treated and Ground Rc 58-62
- Diameter (D): 3.175mm
+ 0.004 / + 0.012
(3.175mm is 0.125 in.)
- Length (L): 15.88mm
+/- 0.350
(15.88mm is 0.625 in.)
- Approx. Overall Length: 15.88mm
+/- 0.350
(15.88mm is 0.625 in.)

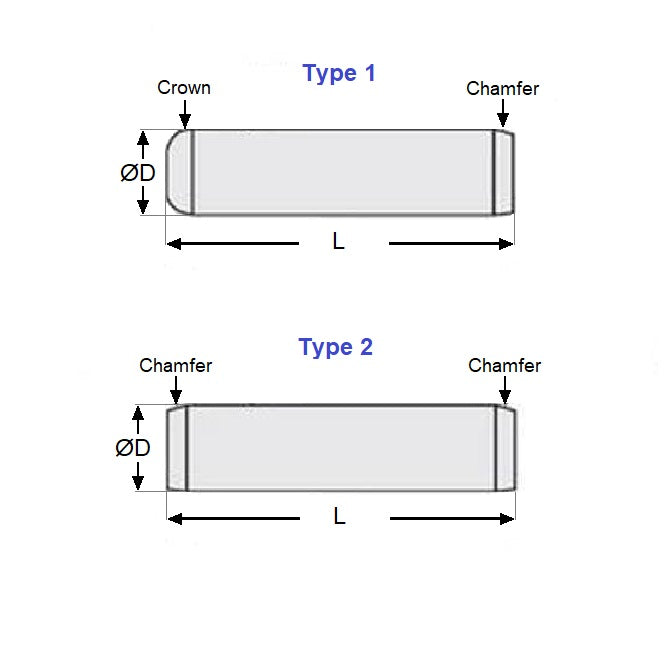

- Type: 1 (Chamfer One End)
- Standard: Based on DIN 6325
Brand: NoCor
Country of Origin: US
Product Compliance and Data
Similar to
- Brighton Best® 241091-PR
- Reid Tool® BRB-241091P
- Huyett® DOW-125-0625
- NoCor® DOW-125-0625
- BRB241091P
- 241091PR
- DOW1250625
- A9Q320420
- A9Q32-0420
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DP032016CH1, DP032016
