PSP-020-020-C (5 Pcs)

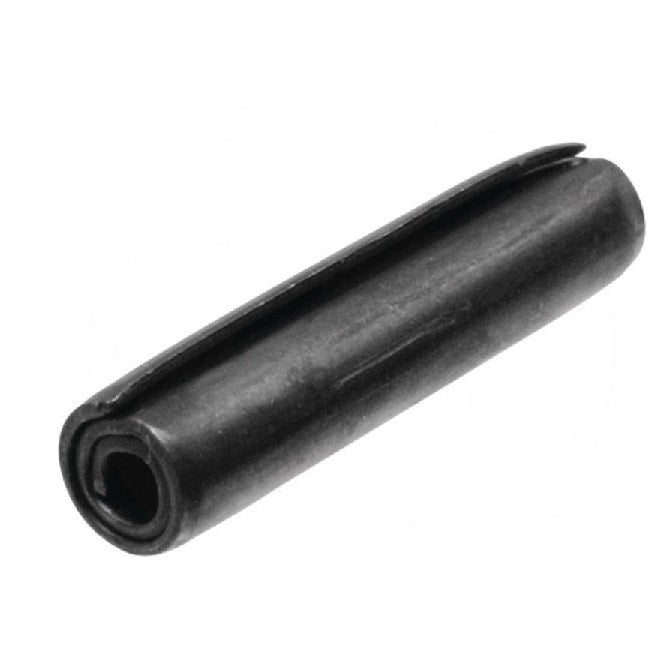

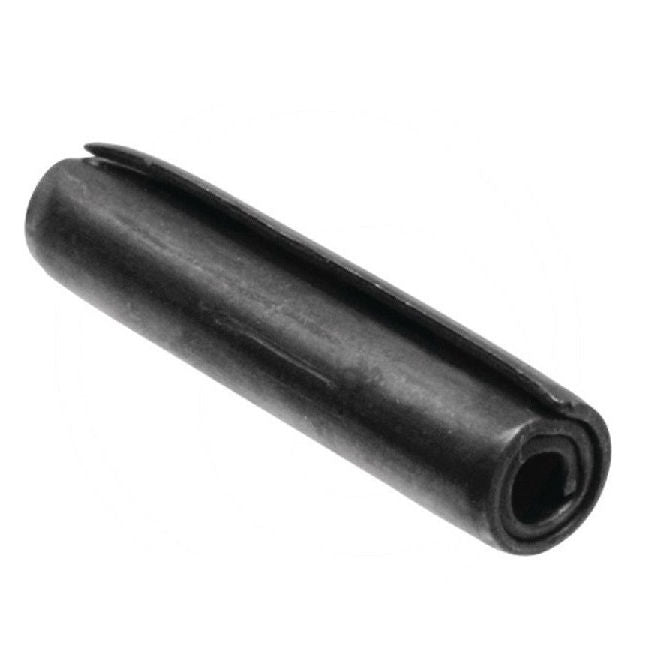

Coiled Pins - 2x20 - 2.00 - 2.10 - High Carbon Steel Pin

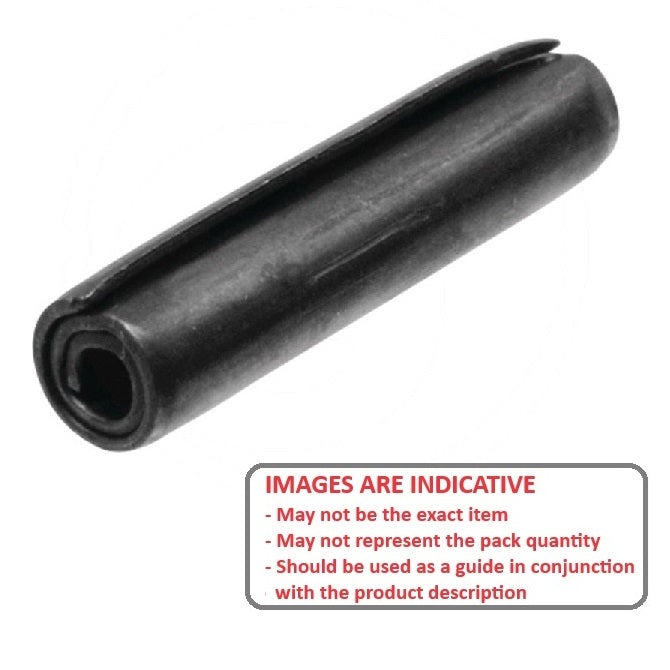

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 2x20 - 2.00 - 2.10 - Carbon Steel - High Carbon
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$2.05 AUD
$3.70 AUD $2.05 AUD
Excludes GST and overseas Taxes & Duties
 per 5
Qty: 200 packs (1000 pcs) available now
Order 50 or more packs (250 pcs) for $1.85 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Nov 25, 2025

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Standard Duty

Product Details

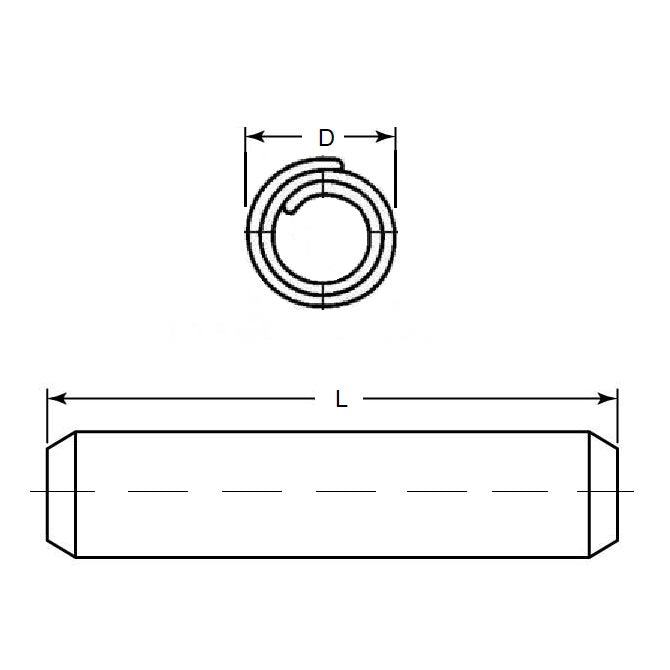

Nominal Hole Diameter: 2.00mm
(2.00mm is 0.079 in.)

High Carbon Steel
  • Nominal Hole Diameter: 2.00mm
    (2.00mm is 0.079 in.)
  • Length: 20.00mm
    +/- 0.50
    (20.00mm is 0.787 in.)
  • Drill Size: 2.00 - 2.10mm
    (2.00 - 2.10mm is 0.079 in.)
  • Loose Diameter: 2.13 - 2.25mm
  • ISO: Standard Duty ISO8750 / ASME B18.8.3M
  • Hardness: RC 46-53 (HV 420 to 545)
  • Double Shear Strength Min.: 3Kn

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • SEP2-20
  • SEP220

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
