W0290-T-037-027-W3-C (2 Pcs)

Name: W0290-T-037-027-W3-C (2 Pack) - Spring Washers - 29x37x2.7 mm 3 Wave - Carbon Spring Steel Self Finish Washer
Brand: MBA
SKU: W0290T037027W3C
Price: 4.05 AUD
Availability: InStock

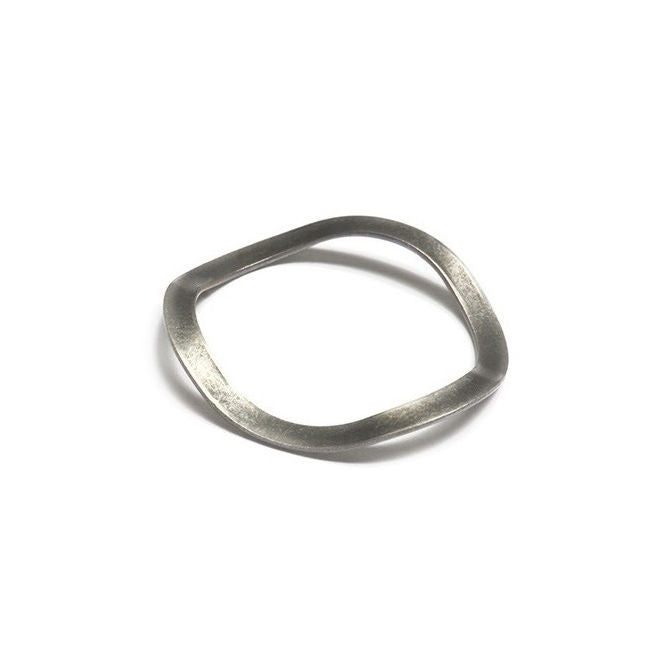

Spring Washers - 29x37x2.7 mm 3 Wave - Carbon Spring Steel Self Finish Washer

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Washers - Spring - 3 Wave - Carbon Steel

Additional resources:
Assortment Kits
Screws

Price:

$4.05 AUD

~~$4.85 AUD~~ $4.05 AUD

Excludes GST and overseas Taxes & Duties

per 2
Qty: 92 packs (184 pcs) available now
Order 50 or more packs (100 pcs) for $3.65 AUD per 2

Product Details

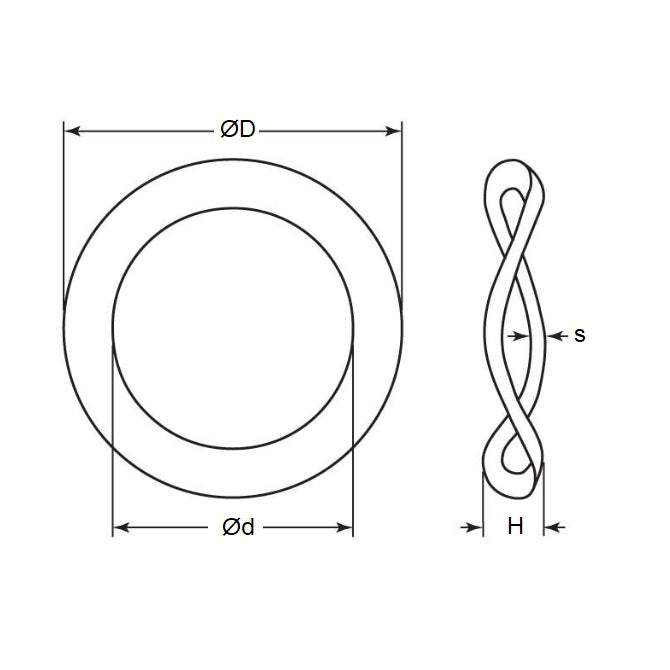

Nominal Inside Diameter (d): 29.00mm
_{+ 0.7 / + 1.0}
_{(29.00mm is 1.142 in.)}

Carbon Spring Steel Self Finish

Nominal Inside Diameter (d): 29.00mm
_{+ 0.7 / + 1.0}
_{(29.00mm is 1.142 in.)}
Nominal Outside Diameter (D): 37.00mm
_{- 0.7 / - 1.0}
_{(37.00mm is 1.457 in.)}
Nom. Height (H): 2.70mm
_{(2.70mm is 0.106 in.)}
Thickness (s): 0.40mm
Info: Suits OD of 6301 Bearings (Equiv EPL030)
Type: 3 Wave
Nominal Screw Size: M29
Spring Rate: 22N/mm
Max Kg at Yeld Point: 26.0Kg

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

ExaktKey EPL030
NoCor EPL030
Springmaster EPL030
XOSpring EPL030
W0290T038040W3C
EPL30

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
