B-L9-0029-0254-NFB

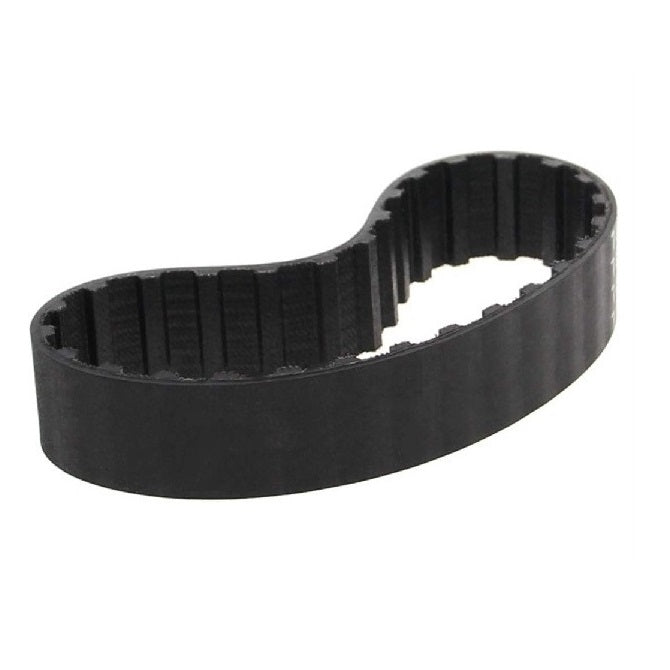

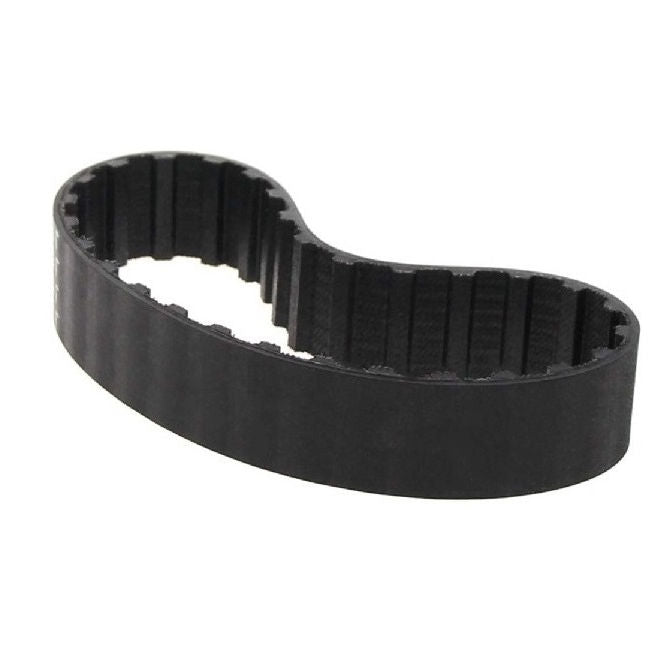

Inch Timing Belts - 29 tooth - 276.225x25.4 mm 9.525mm Pitch L - Nylon Covered Neoprene with Fibreglass Cords Belt

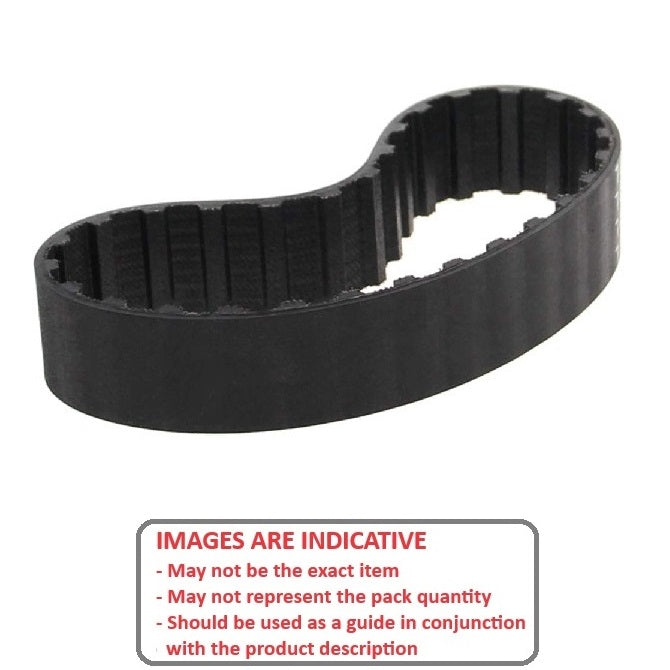

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Inch Timing Belts - 29 tooth - 276.225x25.4 mm - Nylon Covered Neoprene with Fibreglass Cords
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Price:
$8.68 AUD
$10.42 AUD $8.68 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $7.81 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 04, 2025

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Single Sided

Product Details

Number of Teeth: 29

Nylon Covered Neoprene with Fibreglass Cords
  • Number of Teeth: 29
  • Length: 276.225mm
    (276.225mm is 10.875 in.)
  • Width: 25.4mm
    (25.4mm is 1 in.)
  • Reinforcement: Fibreglass
  • Appearance: Black
  • Breaking Strength: 4444N
  • Min Temperature (C): -34Deg C
  • Max Temperature (C): 85Deg C
  • Tooth Angle (A): 40°

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Gates 109L100
  • Gates BL900290250NF
  • Misumi C-TBN109L100
  • CTBN109L100

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
