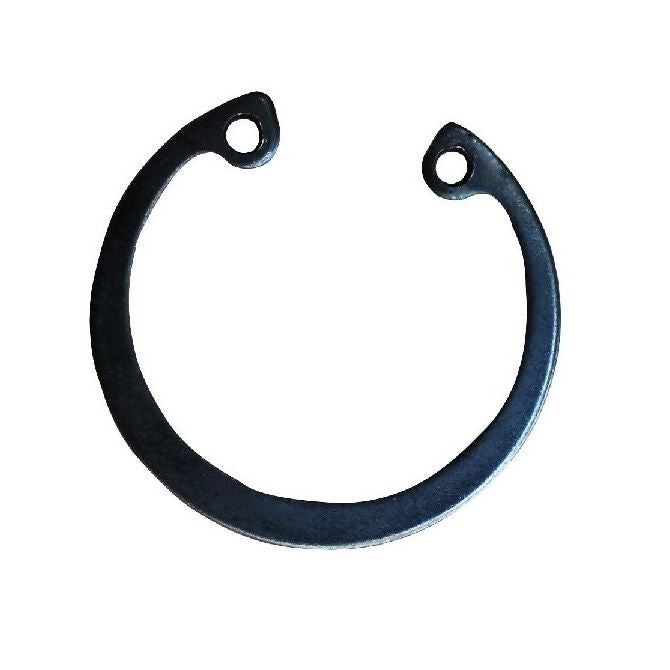

CCI-02700-C (PK-10)

1-1/16x1 inch Circlip - 27x1.2x28.4 mm Internal Retaining Rings - Carbon Steel - Sold per pack of 10:

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Product Details

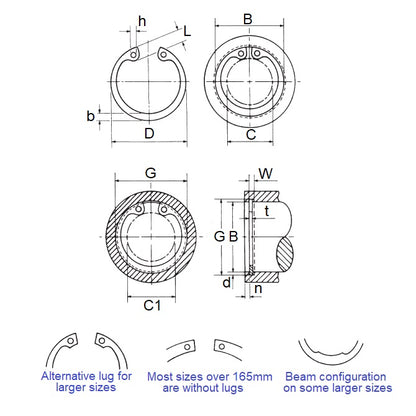

• Housing Bore (B): 27.00mm
  _{(27.00mm is 1.063 in.)}

• Clip Thickness (T): 1.20mm
  _{+ 0.00 / - 0.06
  (1.20mm is 0.047 in.)}

• Groove Dia. (Dg): 28.40mm
  _{+ 0.21 / - 0.00
  (28.40mm is 1.118 in.)}

• Approx. Loose Circlip OD (Dr): 29.10mm
  _{+ 0.50 / - 0.25}

• Groove Width (W): 1.30mm
  _{+ 0.10 / - 0.00}

• Clearance in Bore (C): 17.10mm
• Clearance in Groove (C1): 19.00mm
• Min. Lug Diameter (h): 2.00mm
• Min. Extension (n): 2.10
• Standard: DIN472

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Ellison® 472-027
• ALTPART
• 98455A135
• Bossard® BN-822-027
• Waldes® D1300-027
• Huyett® DHO-027
• NoCor® DHO-027
• Rotor Clip® DHO-027
• Seeger® J-027
• Seeger® J27
• Seeger® J27-BLS
• Seeger® J27X1.2
• Seeger® NZT.J27
• BN822027
• J027
• J27BLS
• DHO027
• D1300-0270APP
• D13000270APP
• 472027
