P-XL-026-095P-AL-G-064 (Each)

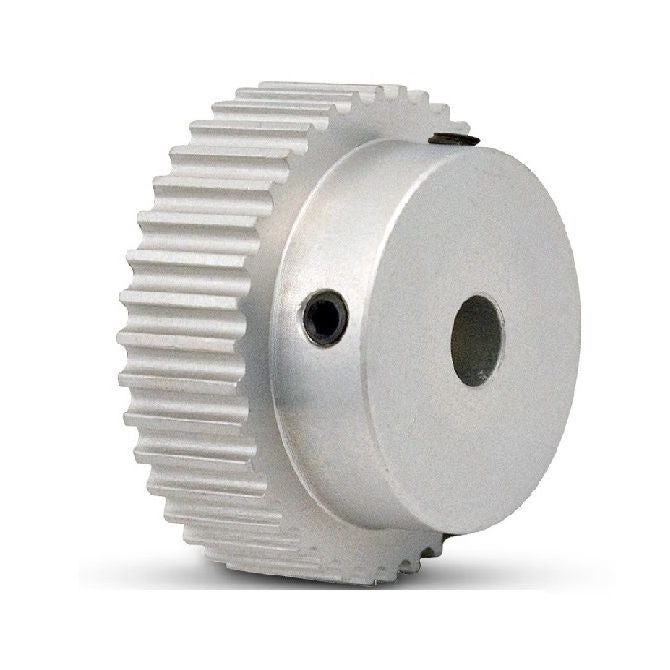

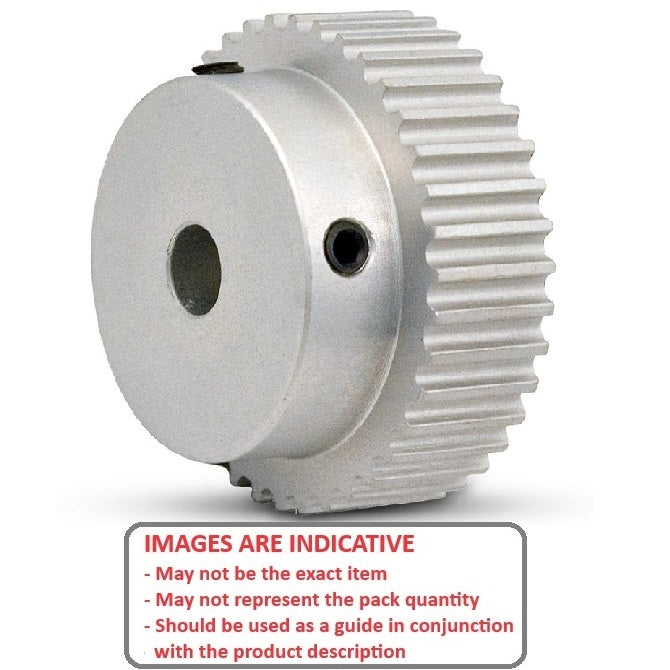

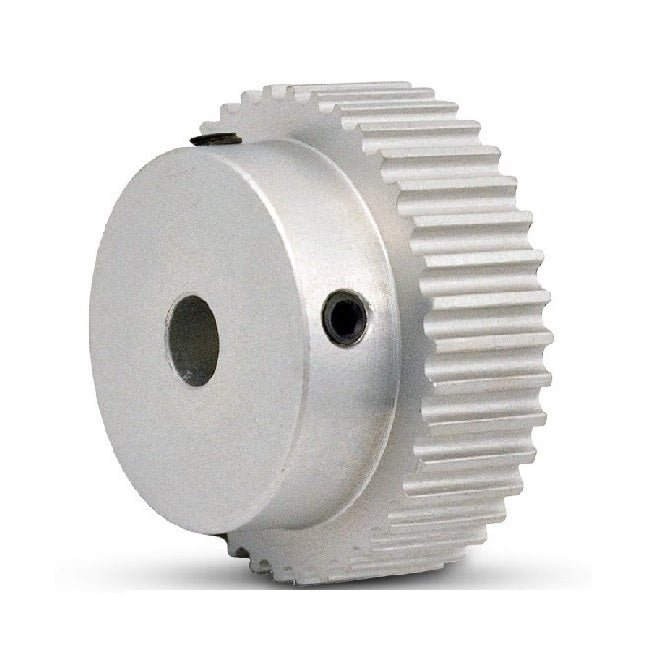

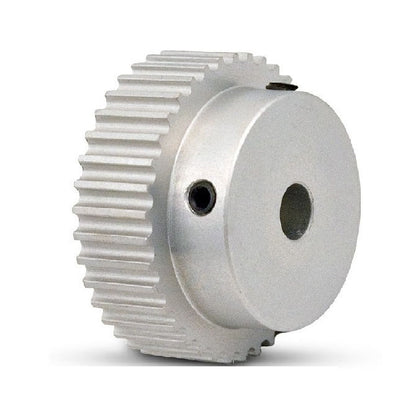

Inch Timing Pulleys - 26 tooth - 9.5x6.35 mm 5.080mm Pitch XL - Aluminium Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Pulleys Catalogue PDF
XL Timing Belts
Order 50 or more
for $30.97 AUD Each
26 tooth - 9.5x6.35 mm Inch Timing Pulleys - Aluminium - Sold per Each:
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Metallic
Product Details
Number of Teeth: 26Aluminium
- Number of Teeth: 26
- Max Belt Width: 9.50mm
(9.50mm is 0.374 in.)
- Bore (d): 6.350mm
(6.350mm is 0.25 in.)
- Bore Type: Finished

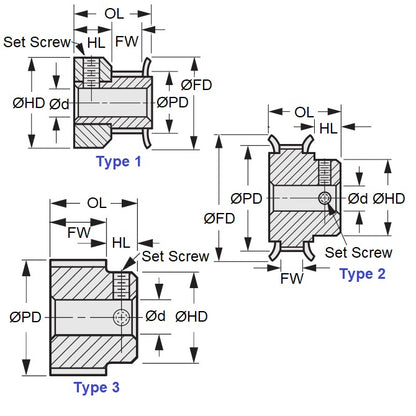

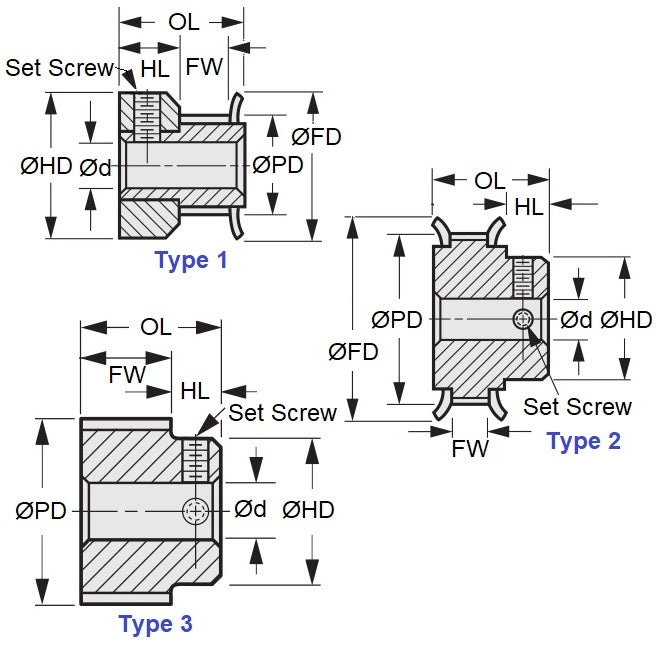

- Type: 3
- Pitch Dia. (PD): 42.02mm
- Flange Diameter (FD): 47.6mm
- Overall Length (OL): 19.8mm
- Hub Diameter (HD): 30.2
- Locking Type: Set Screw
Brand: MBA
Country of Origin: IN
Product Compliance and Data
Similar to
- Gates® 26XL037-6A3
- 26XL0376A3
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PXL026095PALG064, PXL026
