WRE-0260-RD (PK-50)
External Retaining Rings - 26x2x24 mm Round Wire - Carbon Spring Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAnderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Order 50 or more packs of 50 (2500 pcs)
for $15.43 AUD per 50 pack
Couldn't load pickup availability
26x2x24 mm External Retaining Rings - Carbon Spring Steel - Sold per pack of 50:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Round Wire
Product Details
Additional stock available from USA subject to Prior Sale = 1105

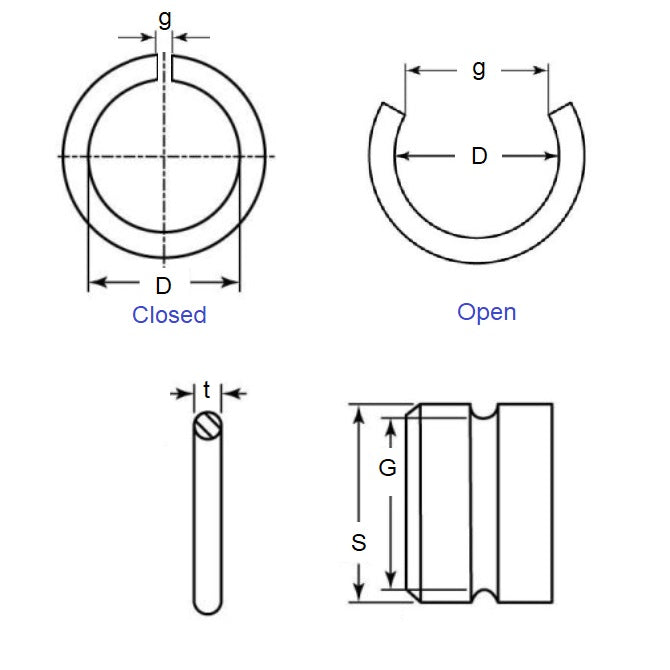

Shaft Diameter (Ds): 26.00mm
(26.00mm is 1.024 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 26.00mm
(26.00mm is 1.024 in.)
- Clip Thickness (T): 2.00mm
(2.00mm is 0.079 in.)
- Groove Dia. (Dg): 24.0mm
+ 0 / - 0.50
(24.0mm is 0.945 in.)
- Approx. Loose Circlip ID (A): 23.7mm
- Radial Wall (S) Approx.: 24.0mm
+/- 0.10
- Groove Width (W): 2.2mm
Min.
- Free Outside Dia (Dr): 27.7
- Section Profile: Round Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® DRP-026
- NoCor® DRP-026
- DRP026
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0260RD, WRE0260
