S6-UC206-17

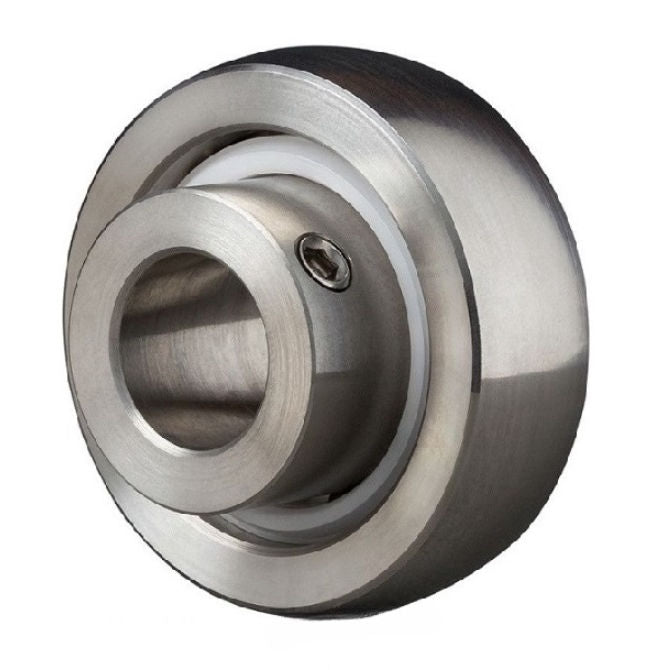

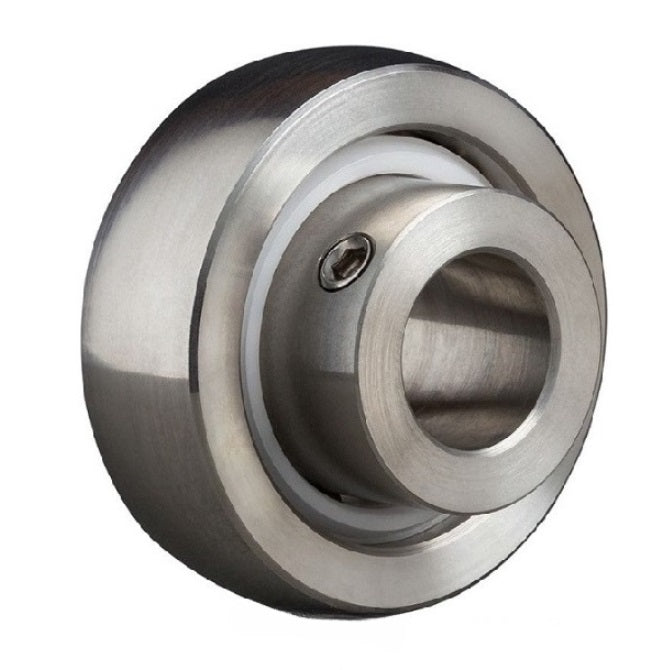

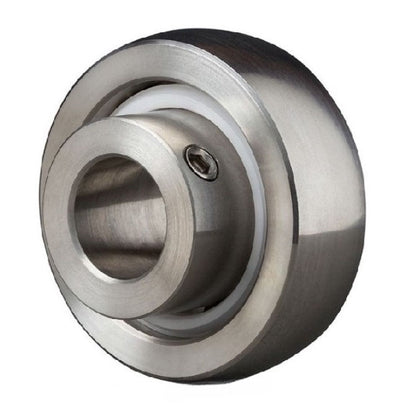

Spherical OD Bearings - 26.987x62x38.1 mm Suits Plastic Housings - Stainless Steel 316 Similar to A4, 18-10 Bearing

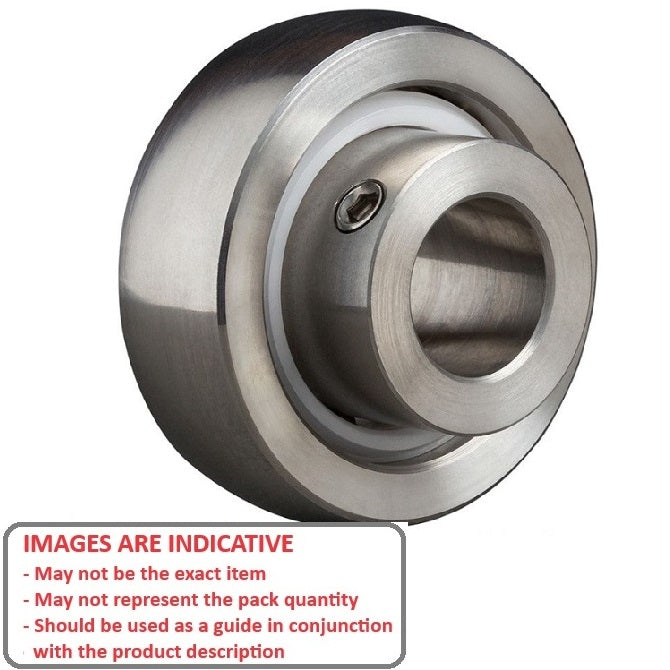

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spherical OD Bearings - 26.987x62x38.1 mm - Stainless Steel 316 Similar to A4, 18-10
1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$256.59 AUD
$307.91 AUD $256.59 AUD
Each
Backorder
Order 50 or more for $230.93 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Oct 16, 2025

Base Category: Bearings - Spherical OD

Top Level Category: Bearings - Spherical OD - Suits Plastic Housings - 316 Stainless

Product Details

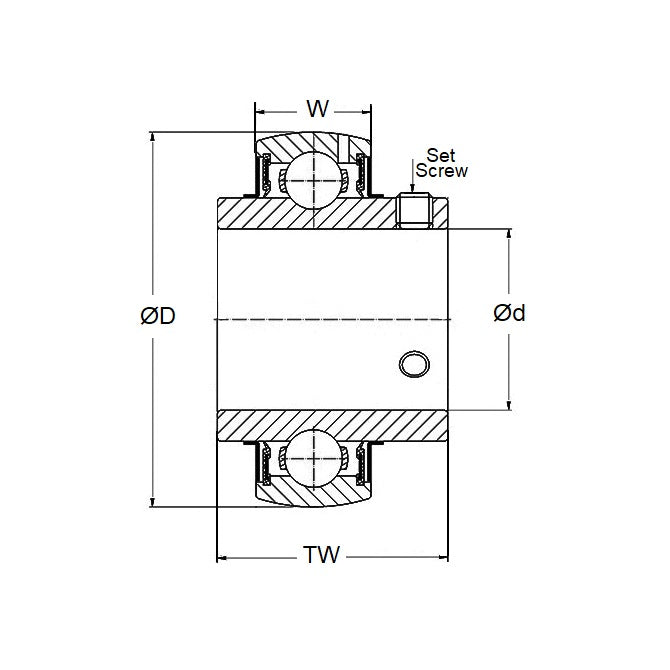

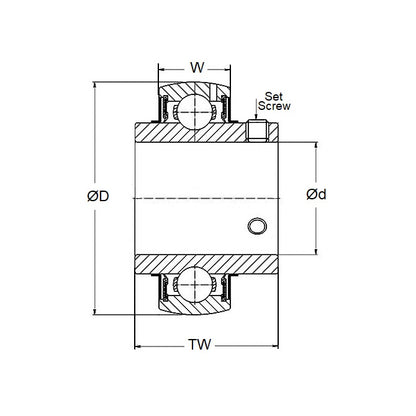

Inside Diameter: 26.987mm
(26.987mm is 1.062 in.)

Stainless Steel 316 (Similar to A4, 18-10)
  • Inside Diameter: 26.987mm
    (26.987mm is 1.062 in.)
  • Outside Diameter: 62.000mm
    (62.000mm is 2.441 in.)
  • Bearing Width: 38.100mm
    (38.100mm is 1.5 in.)
  • Suits Housing: P206PE / F206PE / FL206PE / FB206PE
  • Type: Single Row Ball
  • Max RPM: 840
  • Load Capacity (Dynamic): 104.5Kg
  • Load Capacity (Static): 69.6Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

  • KMS SSIB206-1-1/16
  • KMS SSIB206-1-1-16
  • SSIB20611/16
  • SSIB2061116

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
