PCS-BU-301RS (Each)

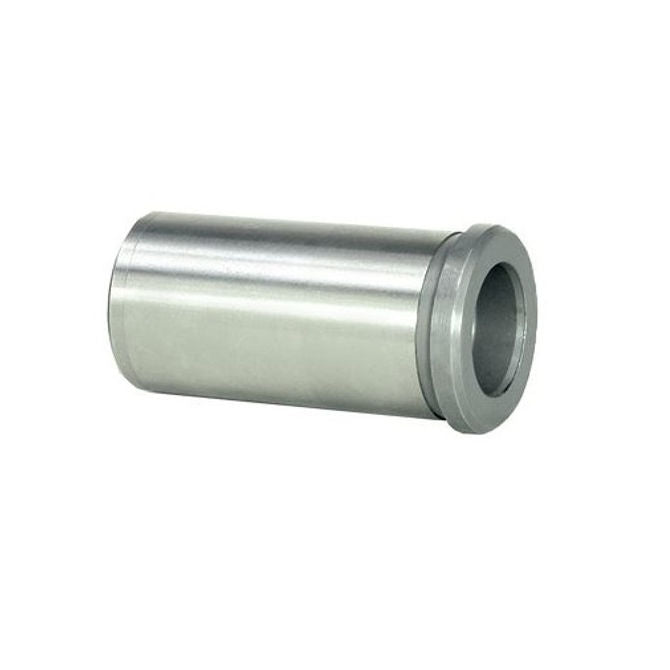

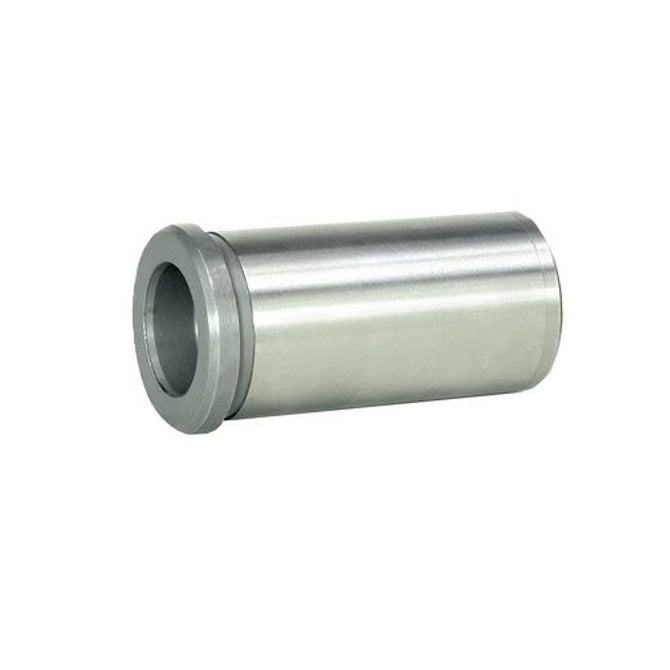

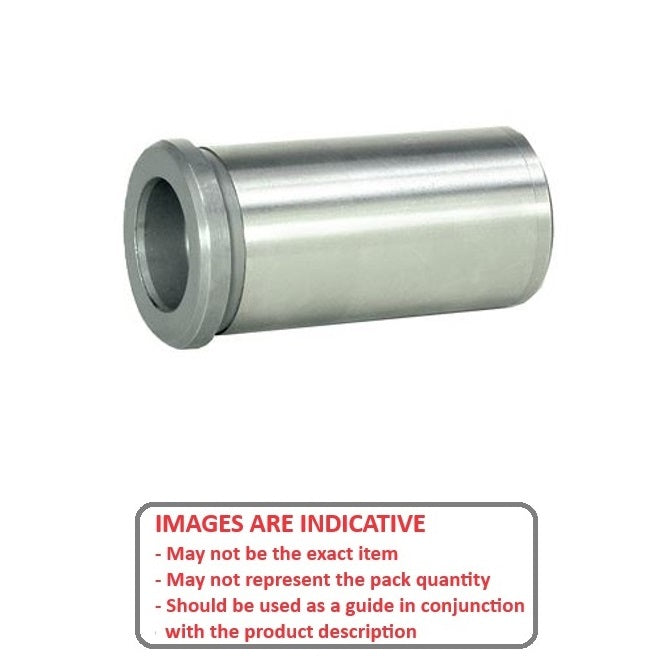

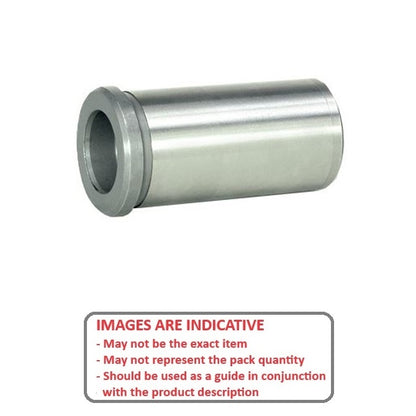

Shoulder Bushings - 25.4x34.925x34.925 mm - Hardened Steel Bushing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $71.96 AUD Each
1x1-3/8x1-3/8 inch Bushing - 25.4x34.925x34.925 mm Shoulder Bushings - Hardened Steel - Sold per Each:
Base Category: Bushings - Shoulder
Top Level Category: Bushings - Shoulder
Product Details

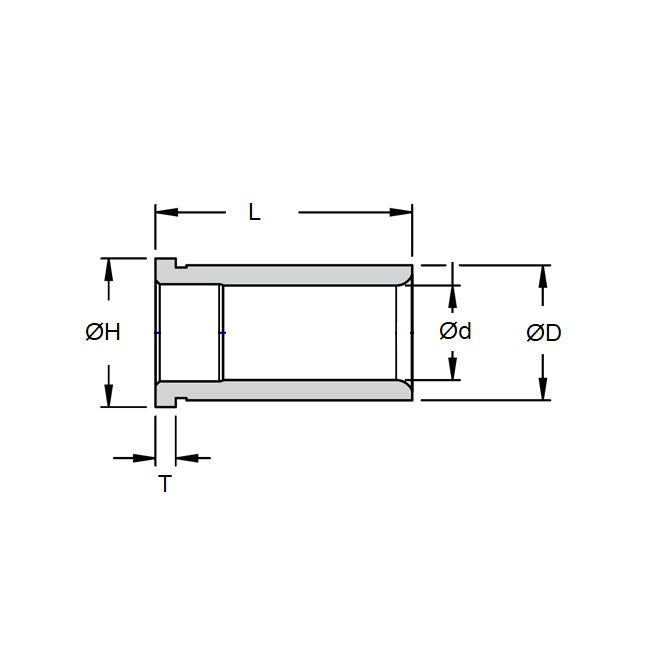

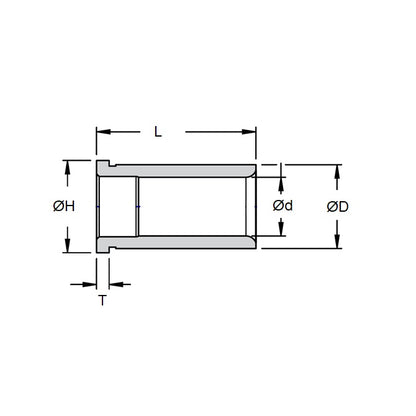

Inside Diameter (ID): 25.400mm+ 0.0125 / - 0.0000
(25.400mm is 1 in.)
Hardened Steel
- Inside Diameter (ID): 25.400mm
+ 0.0125 / - 0.0000
(25.400mm is 1 in.)
- Outside Diameter (OD): 34.925mm
+ 0.0125 / - 0.0000
(34.925mm is 1.375 in.)
- Length (L): 34.925mm
(34.925mm is 1.375 in.)
- Shoulder Diameter (H): 38.100mm
- Shoulder Thickness (T): 4.763mm
Brand: MBA
Country of Origin: US
