W0254-FP-038-0318-CH (5 Pcs)

Name: W0254-FP-038-0318-CH (5 Pack) - Flat Washers - 25.4x38.1x3.175 mm Precision Shim - Carbon Spring Steel AISI C1074-1095 Washer
Brand: MBA
SKU: W0254FP0380318CH
Price: 47.95 AUD
Availability: BackOrder

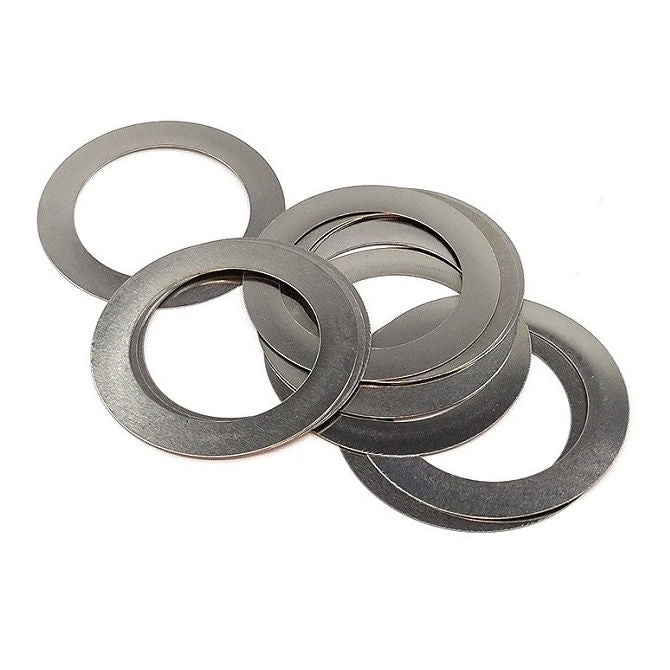

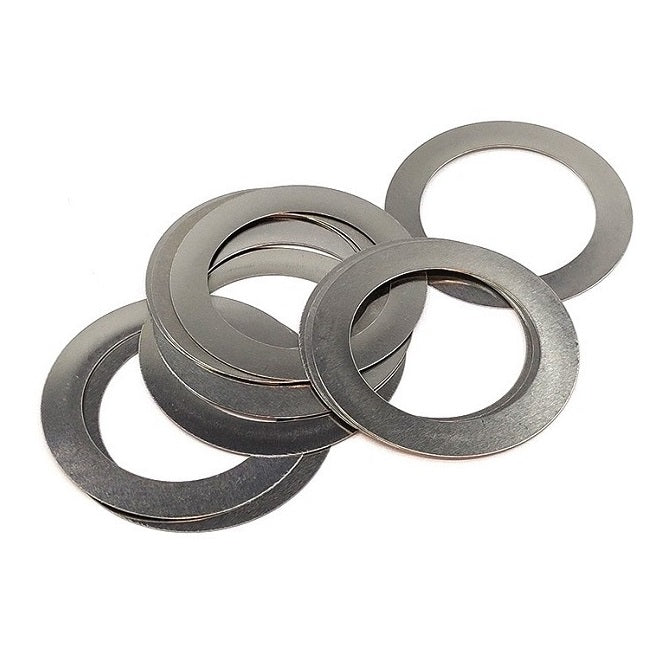

Flat Washers - 25.4x38.1x3.175 mm Precision Shim - Carbon Spring Steel AISI C1074-1095 Washer

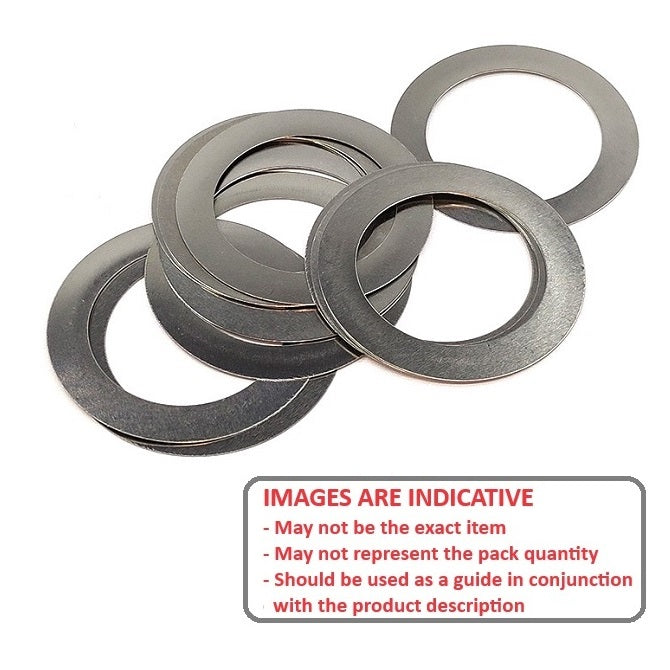

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Washers - Flat - Precision Shim - Carbon Spring Steel

Additional resources:
Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws

Price:

$47.95 AUD

~~$57.55 AUD~~ $47.95 AUD

5 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $43.16 AUD

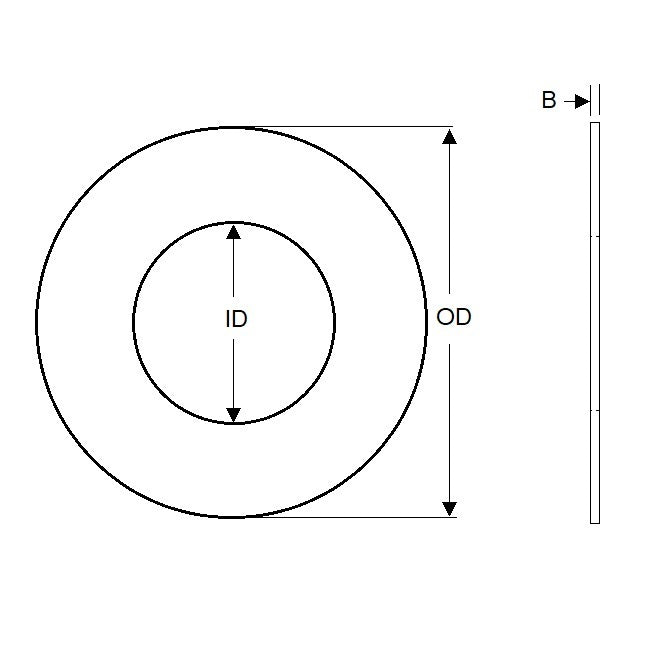

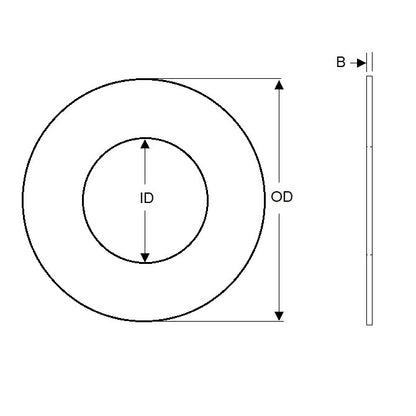

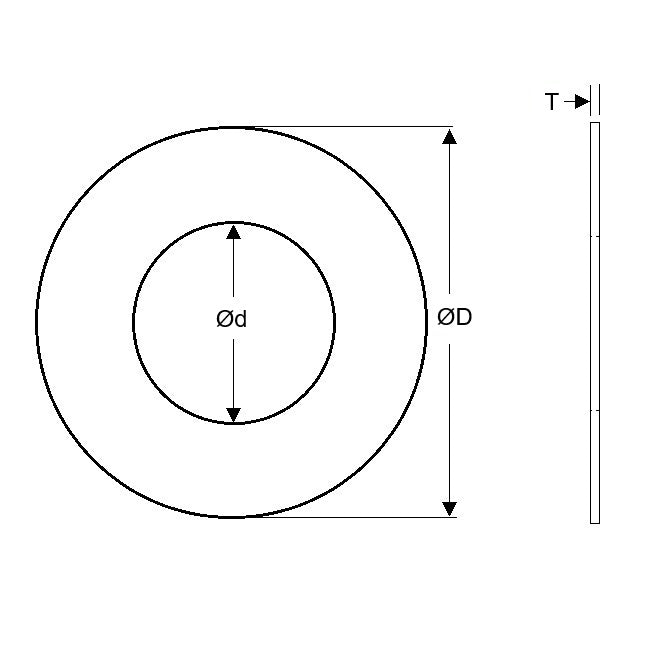

Product Details

Nominal Inside Diameter (d): 25.400mm
_{+ 0.000 / + 0.279}
_{(25.400mm is 1 in.)}

Carbon Spring Steel AISI C1074-1095

Nominal Outside Diameter (D): 38.100mm
_{+/- 0.051}
_{(38.100mm is 1.5 in.)}
Thickness (T): 3.175mm
_{+ 0.076 / - 0.076}
_{(3.175mm is 0.125 in.)}
Other: Rockwell C44 Min.
Grade: Precision
Min. Actual ID (Ref): 25.4mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

KaVo 90482A741

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
