W0254-FP-038-0013-BR (PK-10)

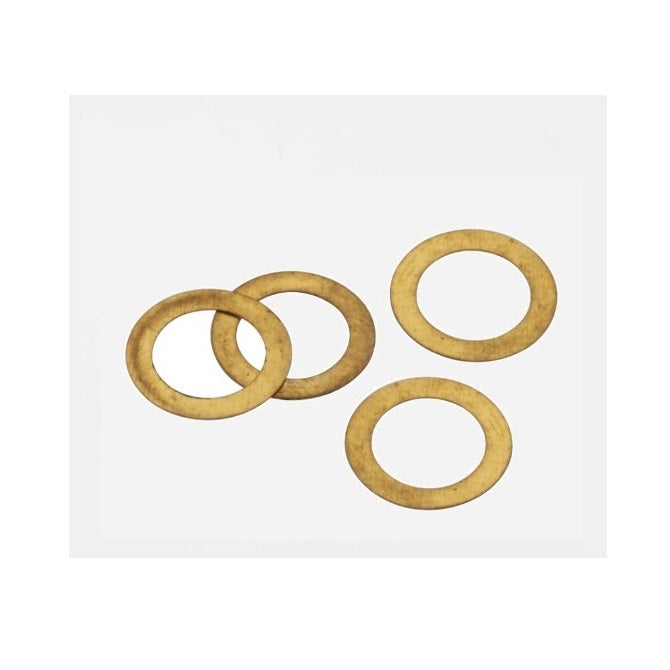

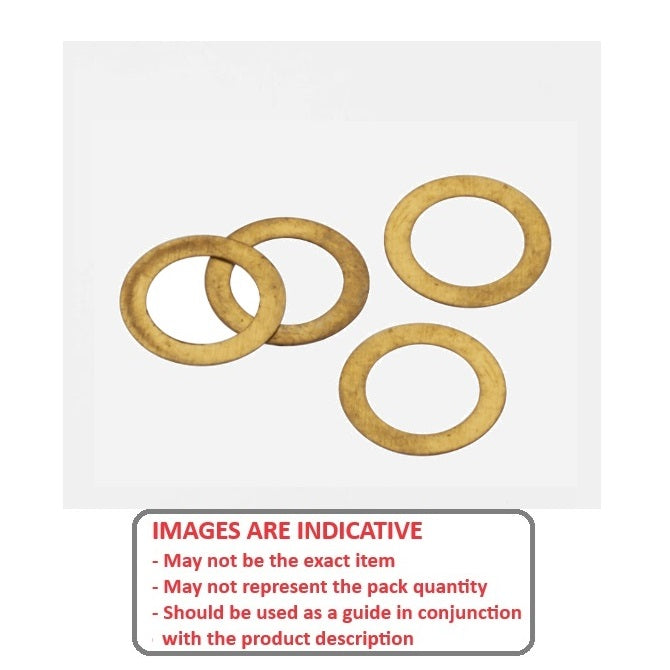

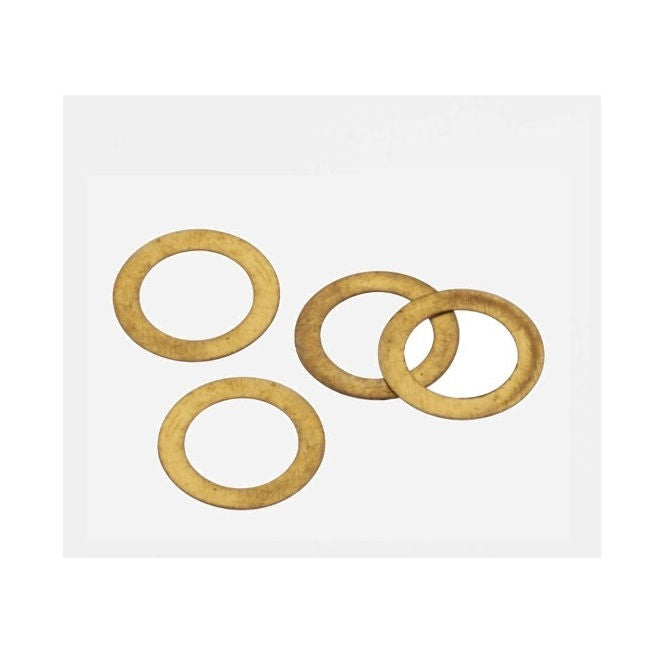

Flat Washers - 25.4x38.1x0.127 mm Precision Shim - Brass 260-360 Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePrecision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Order 50 or more packs of 10 (500 pcs)
for $45.77 AUD per 10 pack
1x1-1/2 inch Washer - 25.4x38.1x0.127 mm Flat Washers - Brass 260-360 - Sold per pack of 10:
Base Category: Washers - Flat
Top Level Category: Washers - Flat - Precision Shim - Brass
Product Details
Nominal Inside Diameter (d): 25.400mm+ 0.000 / + 0.279
(25.400mm is 1 in.)
Brass 260-360
- Nominal Inside Diameter (d): 25.400mm
+ 0.000 / + 0.279
(25.400mm is 1 in.)
- Nominal Outside Diameter (D): 38.100mm
+/- 0.051
(38.100mm is 1.5 in.)
- Thickness (T): 0.127mm
+ 0.020 / - 0.020
(0.127mm is 0.005 in.)
- Other: Rockwell B60
- Grade: Precision
- Actual ID (Ref): 25.4mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 92678A241
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0254FP0380013BR, W0254FP038
