B-MXL-0245-0064-NFB (Each)

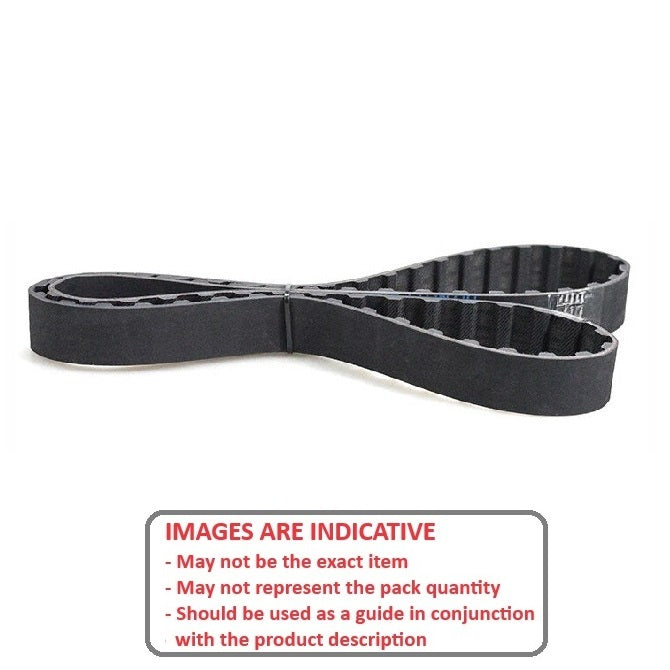

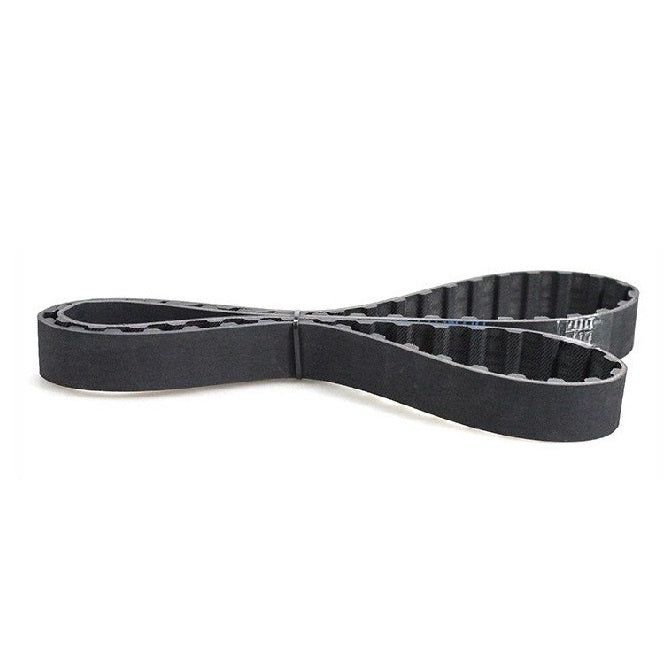

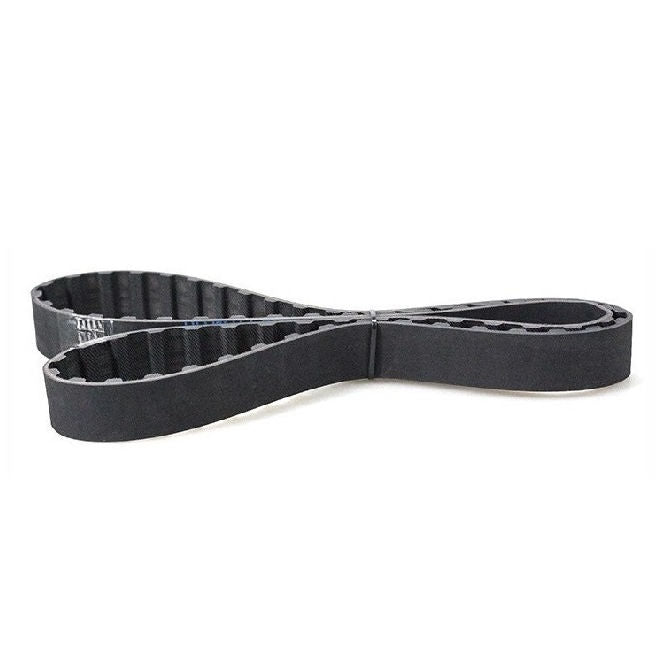

Inch Timing Belts - 245 tooth - 497.84x6.4 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Order 50 or more
for $3.07 AUD Each
Couldn't load pickup availability
245 tooth - 497.84x6.4 mm Inch Timing Belts - Nylon Covered Neoprene with Fibreglass Cords - Sold per Each:
Base Category: Belts - Inch Timing
Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Single Sided
Product Details
Number of Teeth: 245Nylon Covered Neoprene with Fibreglass Cords
- Number of Teeth: 245
- Length: 497.84mm
(497.84mm is 19.6 in.)
- Width: 6.4mm
(6.4mm is 0.252 in.)
- Reinforcement: Fibreglass
- Appearance: Black
- Breaking Strength: 457N
- Min Temperature (C): -34Deg C
- Max Temperature (C): 85Deg C
- Tooth Angle (A): 40°
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Gates® 245MXL025
- Gates® BMXL02450060NF
- Misumi® C-TBN245MXL025
- CTBN245MXL025
- A6Z16245025
- A6Z16-245025
- A6Z16M245060
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BMXL02450064NFB, BMXL0245
