W0246-T-035-023-W3-C (2 Pcs)

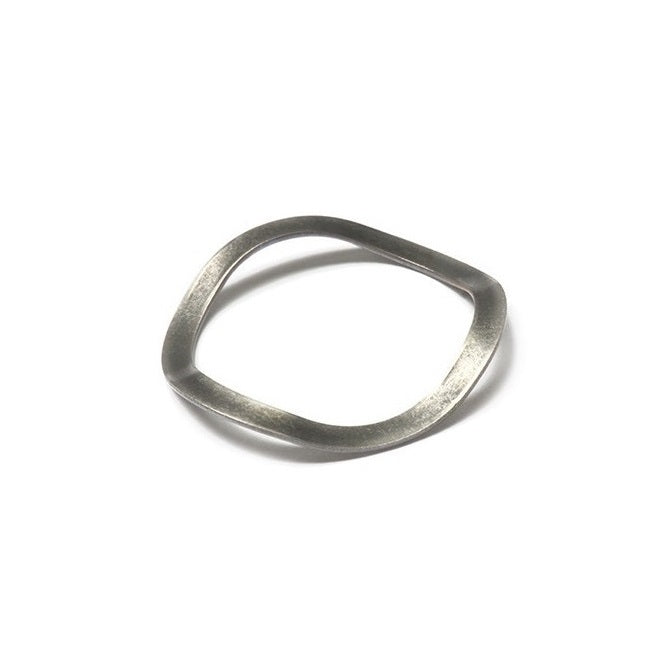

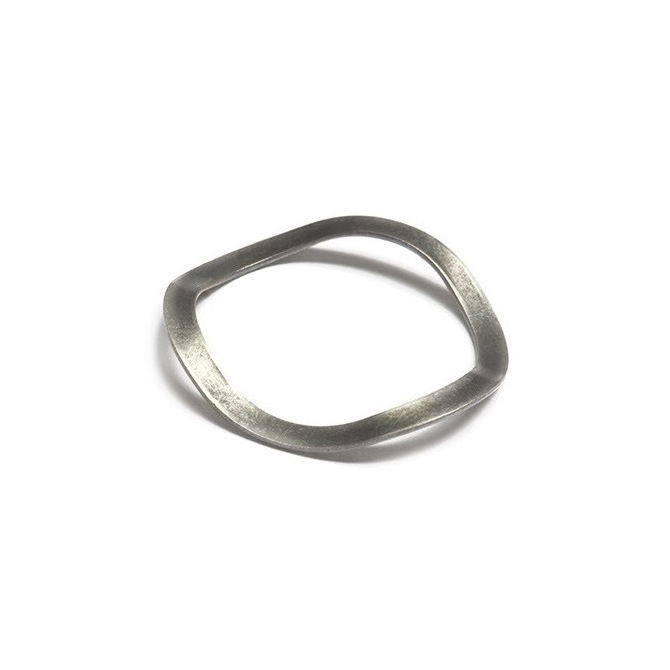

Spring Washers - 24.6x34.93x2.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer

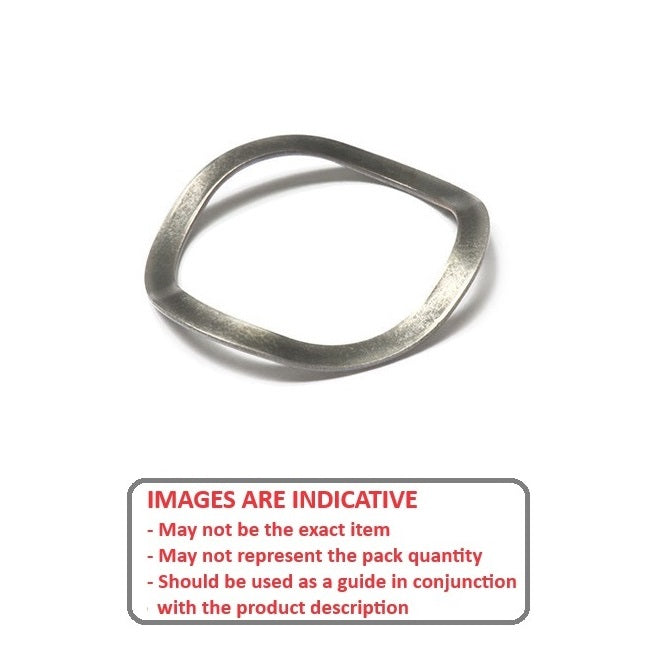

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 24.6x34.93x2.3 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Screws
Price:
$1.41 AUD
$1.69 AUD $1.41 AUD
per 2
Qty: 125 packs (250 pcs) available now
Order 50 or more packs (100 pcs) for $1.27 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 14, 2025

Base Category: Washers - Spring

Top Level Category: Washers - Spring - 3 Wave - Carbon Steel

Product Details


Additional stock available from USA subject to Prior Sale = 134895

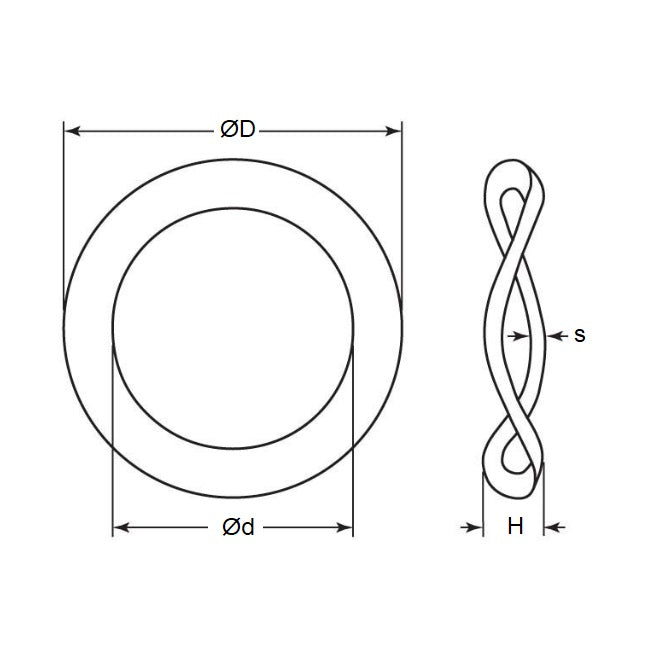

Nominal Inside Diameter (d): 24.60mm
(24.60mm is 0.969 in.)

Carbon Spring Steel Self Finish
  • Nominal Outside Diameter (D): 34.93mm
    (34.93mm is 1.375 in.)
  • Nom. Height (H): 2.30mm
    (2.30mm is 0.091 in.)
  • Thickness (s): 0.48mm
  • Type: 3 Wave
  • Nominal Screw Size: 31/32

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor WW3-1348-019
  • W0246T035005W3C
  • WW31348019

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
