BF0220-0250-0150-DU (2 Pcs)

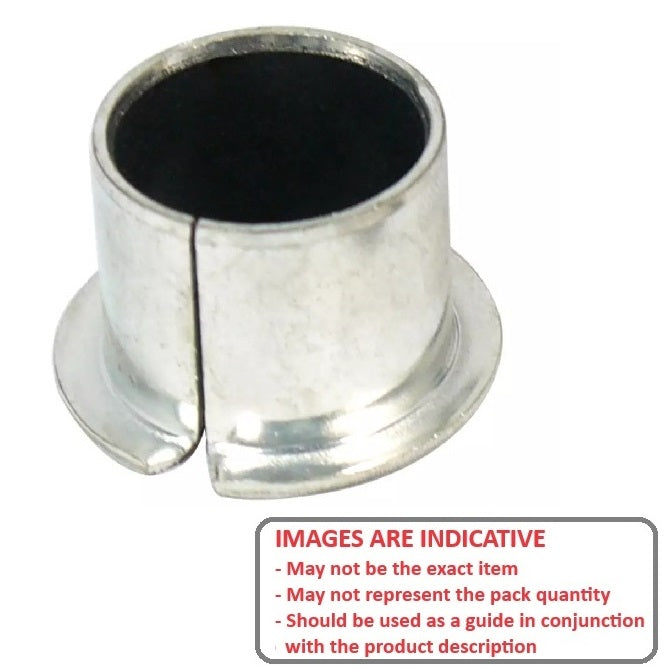

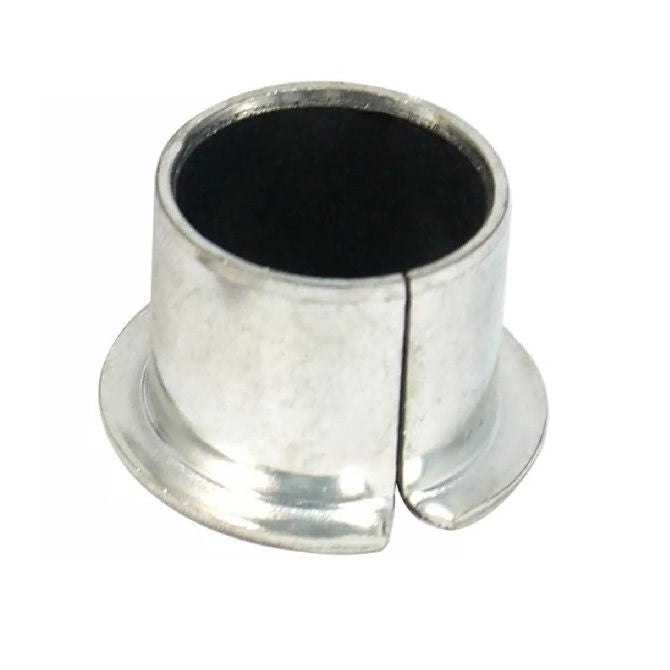

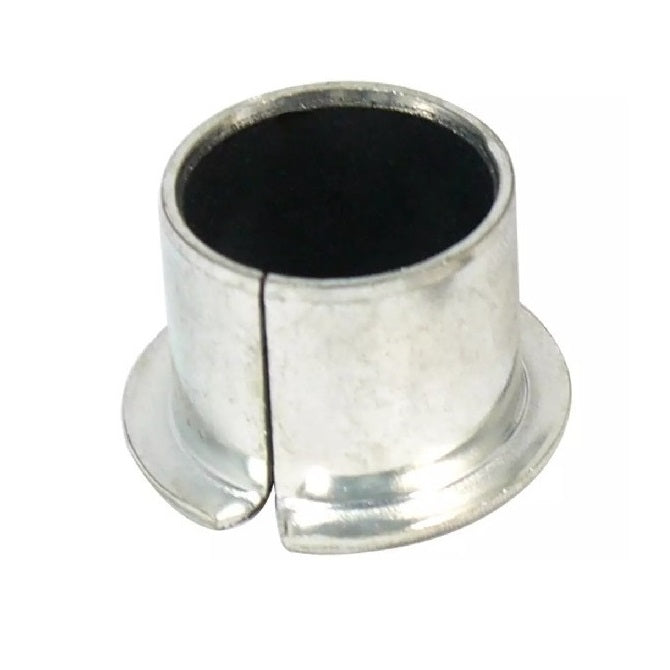

Flanged Bushes - 22x25x15 mm Split - Steel DU with PTFE Bush

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged Bushes - 22x25x15 mm - Steel DU with PTFE
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Bushes PDF Catalogue
Price:
$3.34 AUD
$17.09 AUD $3.34 AUD
per 2
Qty: 488 packs (976 pcs) available now
Order 50 or more packs (100 pcs) for $3.01 AUD per 2
Only 488 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bushes - Flanged

Top Level Category: Bushes - Flanged - Split - Steel - DU

Product Details

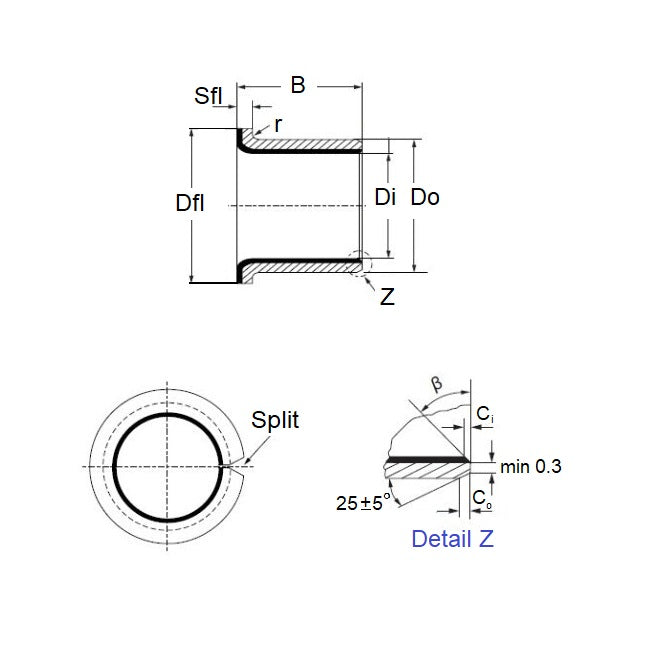

Nominal Inside Diameter (d): 22.000mm
- 0.000 / - 0.041
(22.000mm is 0.866 in.)

Steel DU with PTFE
  • Nominal Outside Diameter (D): 25.000mm
    + 0.075 / - 0.000
    (25.000mm is 0.984 in.)
  • Length (s): 15.000mm
    + 0.25 / - 0.25
    (15.000mm is 0.591 in.)
  • Flange OD (D1): 32.00mm
  • Flange Thickness (S1): 1.50mm

Brand: MBA
Country of Origin: CN

Product Compliance and Data

Similar to

  • Glacier FMB2215DU

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
