P-050G-022-150FF-SB-N-064U (Each)
Metric Timing Pulleys - 22 tooth - 15x6.35 mm 5mm Pitch - Steel - Black Oxide Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Pulleys Catalogue PDF
5mm GT Timing Belts
Order 50 or more
for $96.83 AUD Each
22 tooth - 15x6.35 mm Metric Timing Pulleys - Steel - Black Oxide - Sold per Each:
Base Category: Pulleys - Metric Timing
Top Level Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore
Product Details
Number of Teeth: 22Steel - Black Oxide
- Number of Teeth: 22
- Max Belt Width: 15.00mm
(15.00mm is 0.591 in.)
- Bore (d): 6.350mm
(6.350mm is 0.25 in.)
- Bore Type: Unfinished
- Locking Type: None

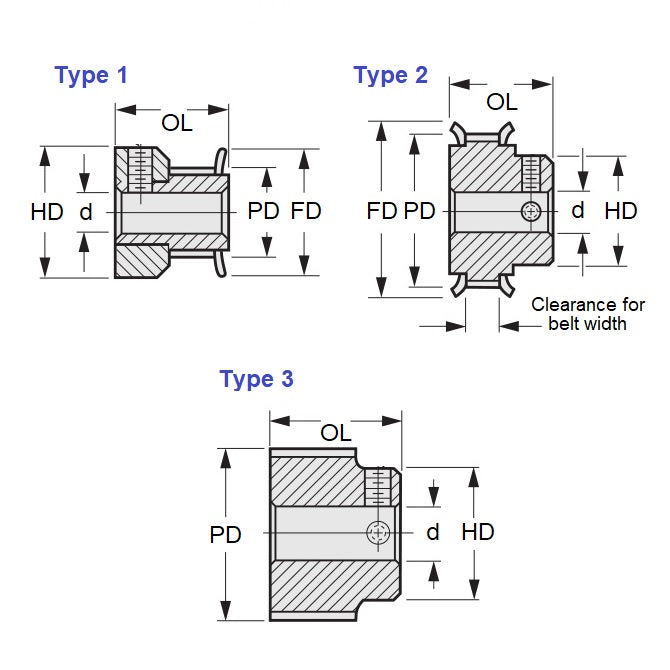

- Type: 2
- Pitch Dia. (PD): 35.00mm
- Flange Diameter (FD): 42.1mm
- Overall Length: 32.5mm
- Hub Diameter (HD): 23.8
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Gates® 22-5P15-6FS3
- 225P156FS3
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
P050G022150FFSBN064U, P050G022
