RR-086 (PK-6)
Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 6 (300 pcs)
for $11.09 AUD per 6 pack
22x0.79x22.94 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 6:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 188

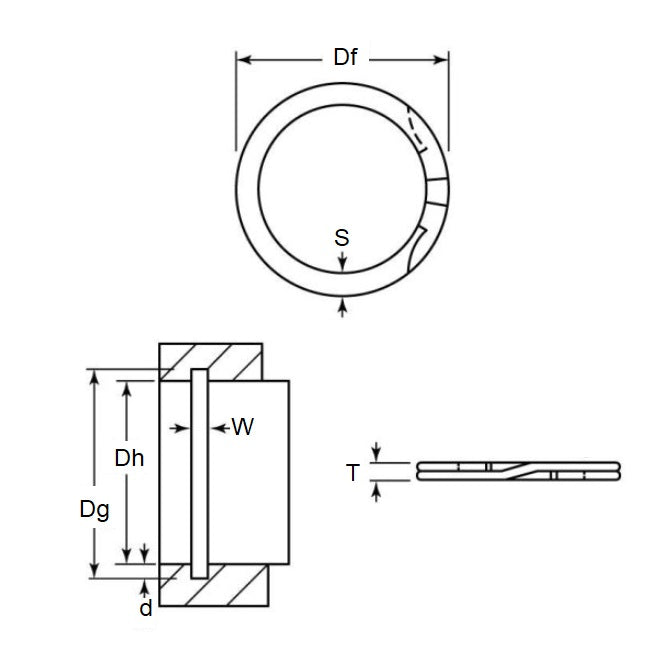

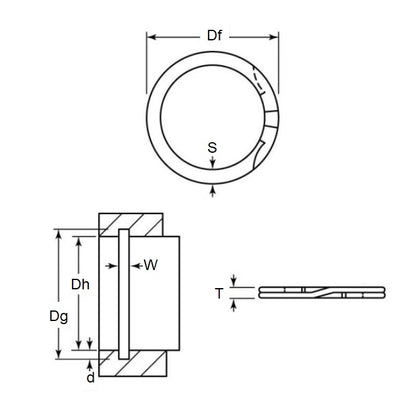

Housing Bore (B): 22.00mm
(22.00mm is 0.866 in.)
Carbon Spring Steel
- Housing Bore (B): 22.00mm
(22.00mm is 0.866 in.)
- Clip Thickness (T): 0.79mm
+/- 0.05
(0.79mm is 0.031 in.)
- Groove Dia. (Dg): 22.94mm
(22.94mm is 0.903 in.)
- Approx. Loose Circlip OD (Dr): 22.97mm
+ 0.33 / - 0.00
- Radial Wall (S) Approx.: 1.65mm
+/- 0.10
- Groove Width (W): 0.95mm
+/- 0.08
- Approx. Loose Clip ID: 19.67
+/- 0.04
- Groove Depth (d): 0.48
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Associated Spring® AI-086
- Huyett® RR-086
- Smalley® WH-086
- Spirolox® WH-086
- WH086
- AI086
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RR086,
