CC-229-254-CZ (PK-50)

Name: Crescent Retaining Rings - 22.86x25.4x1.07 mm - Carbon Spring Steel Zinc Plated (Sold Per PK-50) - - CC-229-254-CZ
Brand: MBA
SKU: CC229254CZ
Price: 26.77 AUD
Availability: BackOrder

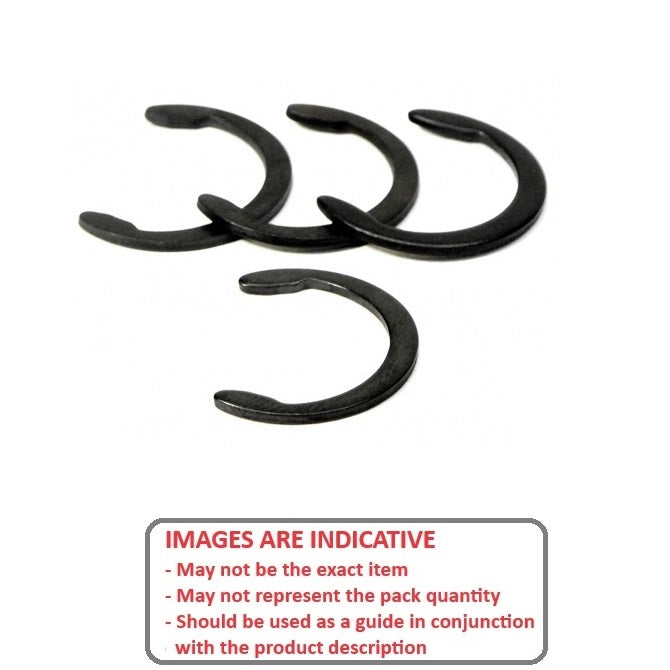

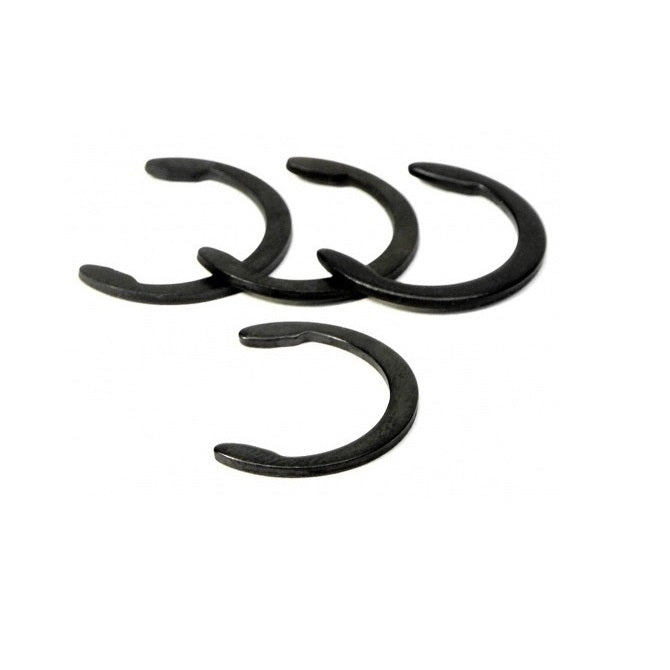

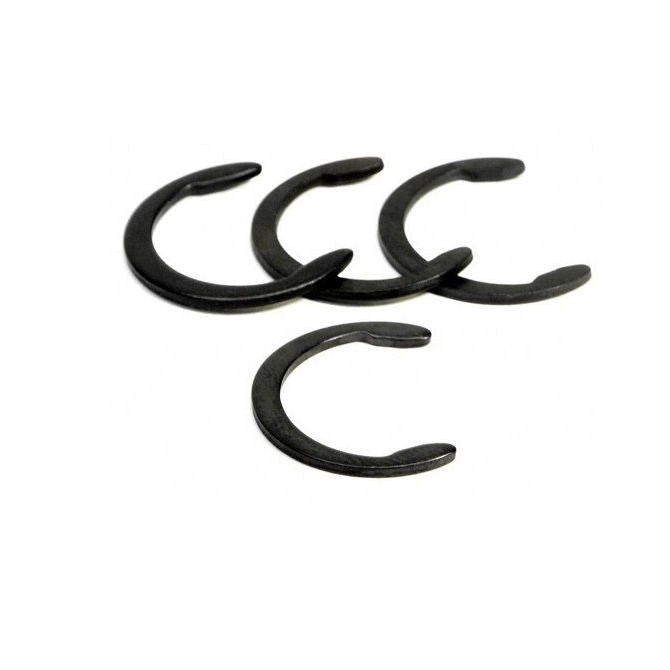

Crescent Retaining Rings - 22.86x25.4x1.07 mm - Carbon Spring Steel Zinc Plated

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Crescent

Price:

$26.77 AUD

~~$32.13 AUD~~ $26.77 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 50 (2500 pcs)
for $24.09 AUD per 50 pack

Product Details

Additional stock available from USA subject to Prior Sale = 504

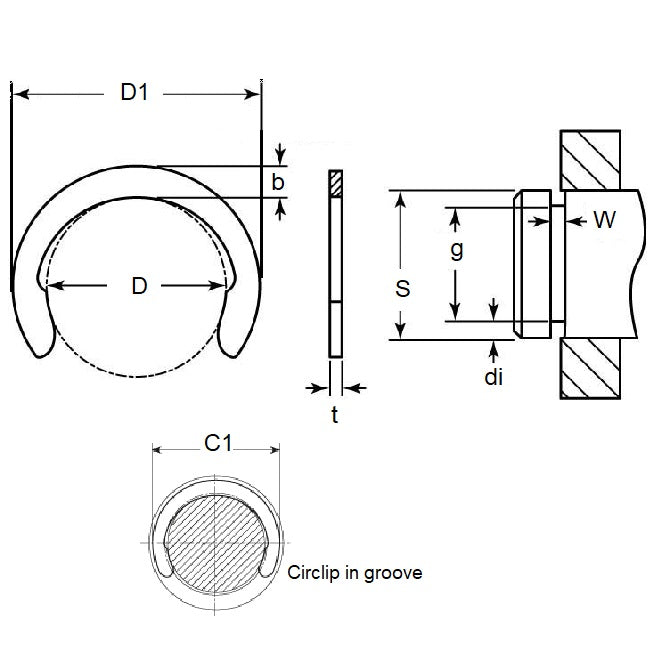

Groove Diameter (G): 22.86mm
_{(22.86mm is 0.9 in.)}

Carbon Spring Steel Zinc Plated

Groove Diameter (G): 22.86mm
_{(22.86mm is 0.9 in.)}
Shaft Diameter (S): 25.40mm
_{(25.40mm is 1 in.)}
Thickness (t): 1.07mm
_{(1.07mm is 0.042 in.)}
Clip OD in groove (C1): 29.21mm
Clip OD Loose (D1): 28.70mm
Groove Width (W): 1.17

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Military 16632-100-ZD/B
Military 16632-100-ZD-B
Waldes® 5103-100-ZD/B
Waldes® 5103-100-ZD-B
Ellison® 9103-100-ZD/B
Ellison® 9103-100-ZD-B
Huyett® C-100-ZD/B
NoCor® C-100-ZD/B
Rotor Clip® C-100-ZD/B
NoCor® C-100-ZD-B
Rotor Clip® C-100-ZD-B
C100ZD/B
C100ZDB
N1800100ZDB
N1800-100-ZD/B
N1800100ZD/B
N1800-100-ZD-B
16632100ZD/B
16632100ZDB
9103100ZDB
9103100ZD/B
5103100ZD/B
5103100ZDB

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CC229
