RR-087 (PK-6)

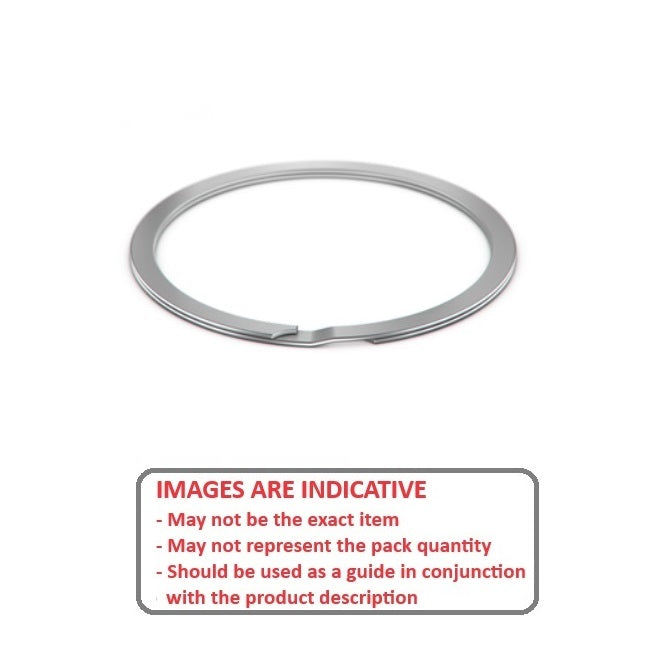

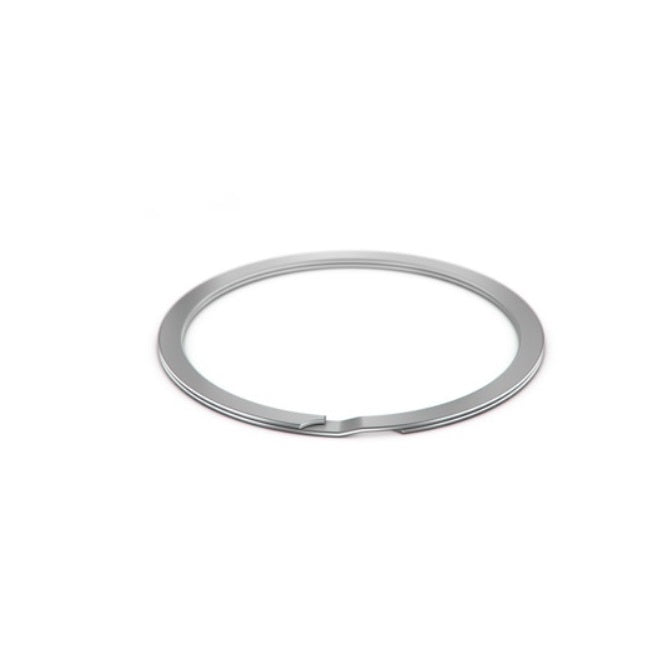

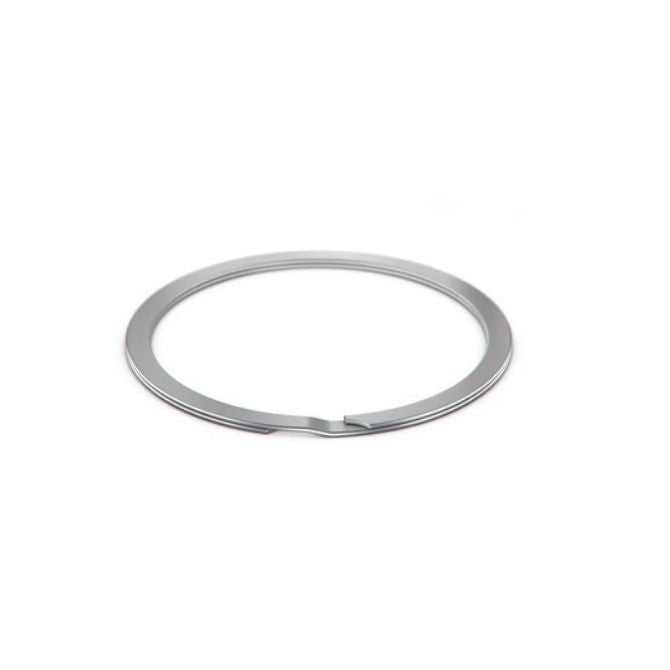

Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 6 (300 pcs)
for $11.09 AUD per 6 pack
7/8x1/32 inch Spiral Ring - 22.23x0.79x23.17 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 6:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 2402

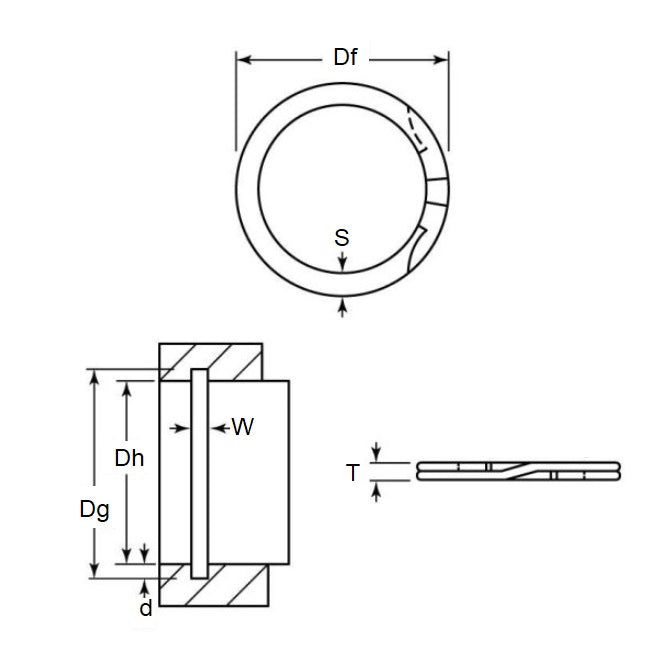

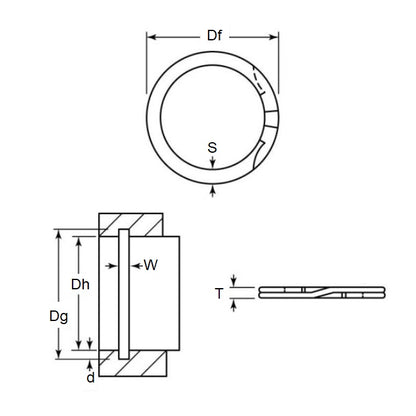

Housing Bore (B): 22.23mm
(22.23mm is 0.875 in.)
Carbon Spring Steel
- Housing Bore (B): 22.23mm
(22.23mm is 0.875 in.)
- Clip Thickness (T): 0.79mm
+/- 0.05
(0.79mm is 0.031 in.)
- Groove Dia. (Dg): 23.17mm
(23.17mm is 0.912 in.)
- Approx. Loose Circlip OD (Dr): 23.21mm
+ 0.33 / - 0.00
- Radial Wall (S) Approx.: 1.65mm
+/- 0.10
- Groove Width (W): 0.95mm
+/- 0.07
- Approx. Loose Clip ID: 19.91
+/- 0.04
- Groove Depth (d): 0.48
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 92602A140
- Associated Spring® AI-087
- Huyett® RR-087
- NoCor® WH-087
- Smalley® WH-087
- Spirolox® WH-087
- WH087
- AI087
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
