TMF-557-ARS (Each)

Levelling Bonded Neoprene Mounts - 22.0 to 59.0 Kg 1.27x6.35 mm With Stud

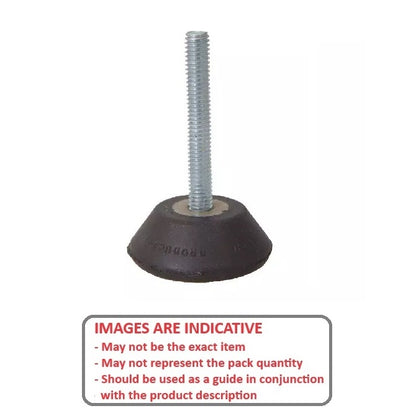

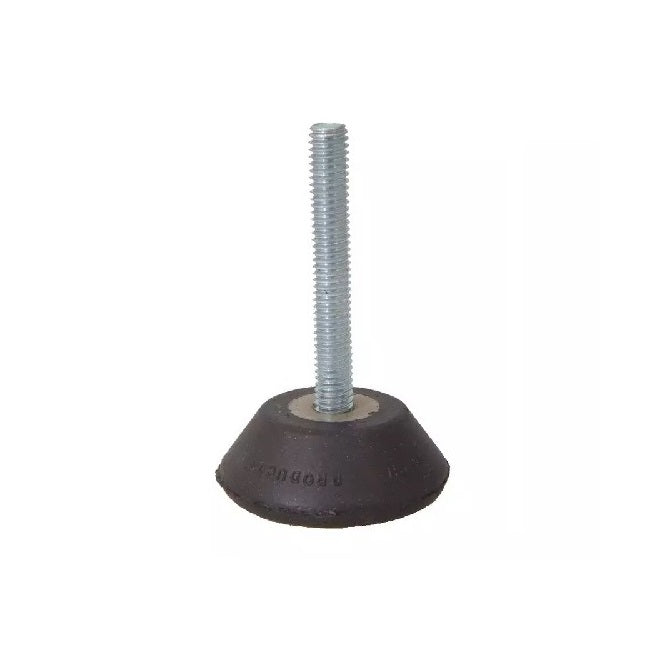

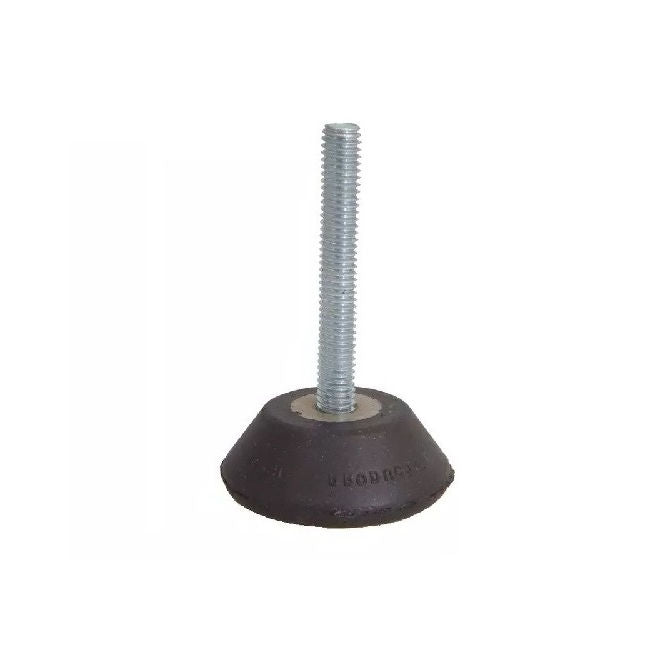

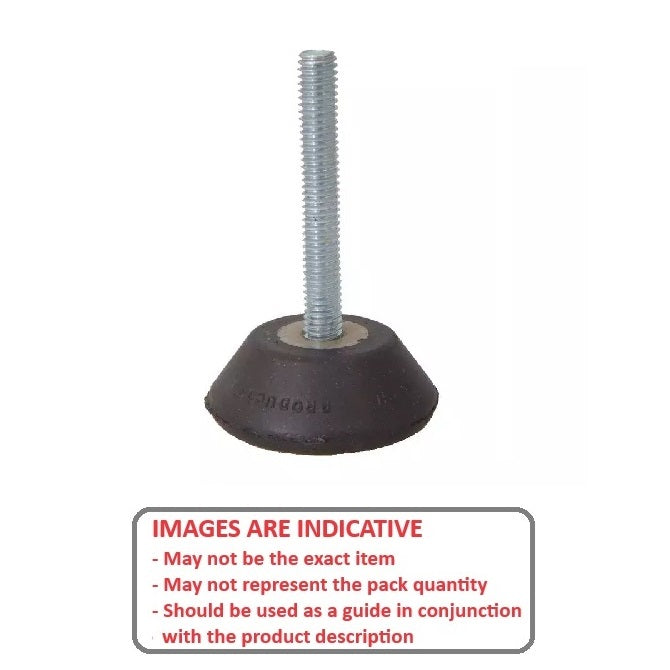

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Levelling Bonded Neoprene Mounts - 22.0 to 59.0 Kg 1.27x6.35 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$33.77 AUD
$40.53 AUD $33.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $30.39 AUD Each
Backorder now! Backorders are expected before May 30, 2026

Base Category: Mounts - Levelling Bonded Neoprene

Top Level Category: Mounts - Levelling Bonded Neoprene - With Stud

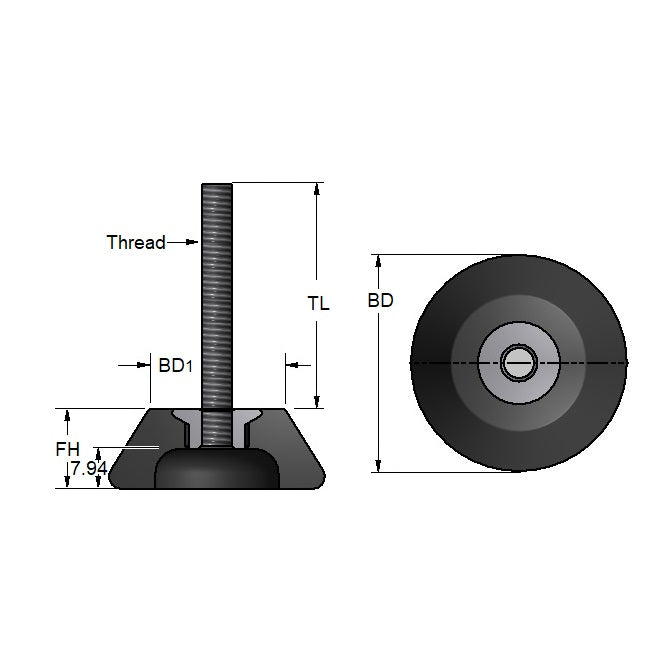

Product Details

Load Capacity: 22.0 to 59.0Kg
  • Load Capacity: 22.0 to 59.0Kg
  • Min Load Deflection: 1.270mm
    (1.270mm is 0.05 in.)
  • Max Load Deflection: 6.350mm
    (6.350mm is 0.25 in.)
  • Thread: 3/16-16
  • Thread Length: 66.7mm
  • Base Diameter: 55.6mm
  • Foot Height: 20.6mm
  • Top Diameter: 34.9mm

Brand: MBA
Country of Origin: US

Product Compliance and Data


We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
