CC-214-238-C (50 Pcs)

Name: CC-214-238-C (50 Pack) - Crescent Retaining Rings - 21.41x23.83x1.07 mm - Carbon Spring Steel Self Finish
Brand: MBA
SKU: CC214238C
Price: 32.77 AUD
Availability: BackOrder

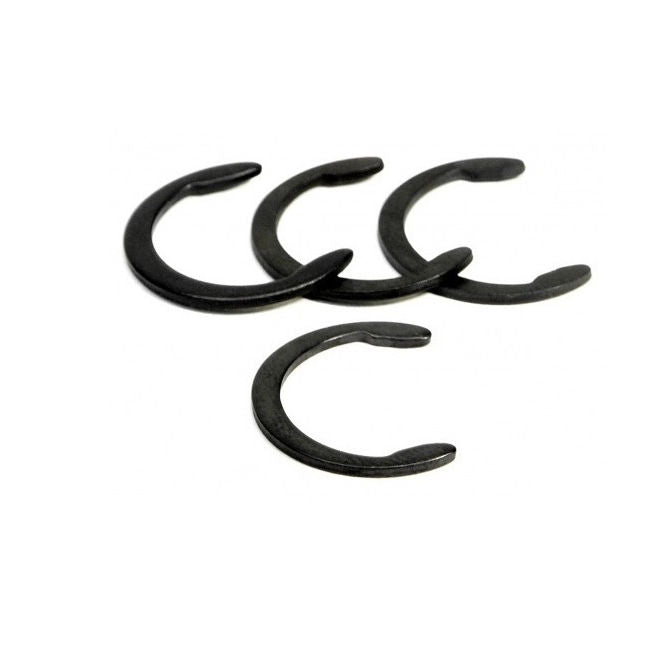

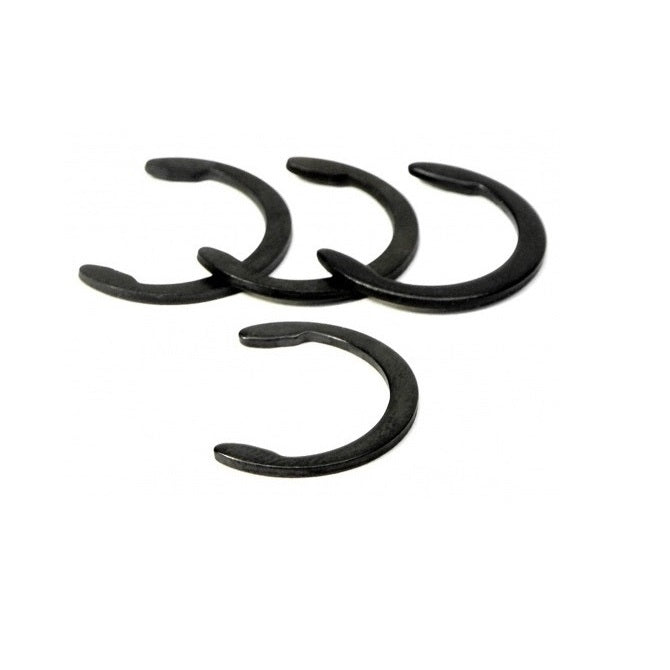

Crescent Retaining Rings - 21.41x23.83x1.07 mm - Carbon Spring Steel Self Finish

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Crescent

Price:

$32.77 AUD

~~$39.33 AUD~~ $32.77 AUD

50 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $29.49 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 4152

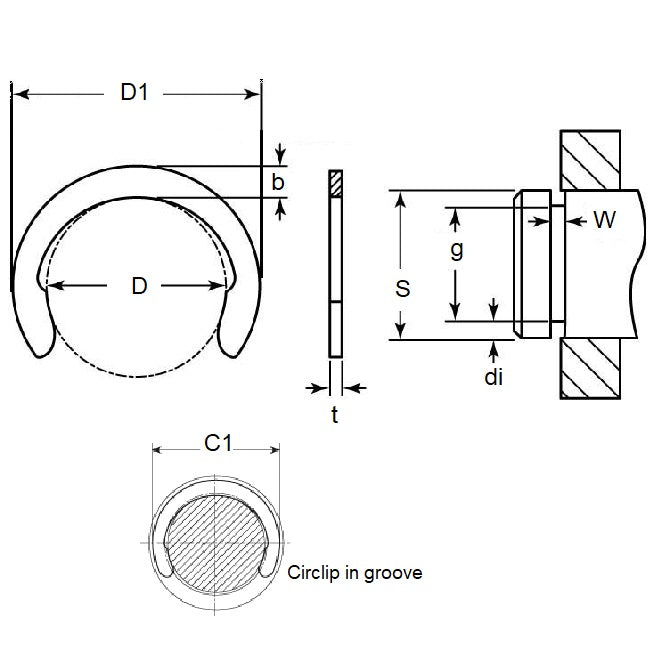

Groove Diameter (G): 21.41mm
_{(21.41mm is 0.843 in.)}

Carbon Spring Steel Self Finish

Groove Diameter (G): 21.41mm
_{(21.41mm is 0.843 in.)}
Shaft Diameter (S): 23.83mm
_{(23.83mm is 0.938 in.)}
Thickness (t): 1.07mm
_{(1.07mm is 0.042 in.)}
Clip OD in groove (C1): 27.43mm
Clip OD Loose (D1): 26.87mm
Groove Width (W): 1.17

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Military 16632-093
Military 16632-093/B
Military 16632-093-B
Waldes 5103-093
Waldes 5103-093/B
Waldes 5103-093-B
Ellison 9103-093
Ellison 9103-093/B
Ellison 9103-093-B
NoCor C-093
Rotor Clip C-093
NoCor C-093/B
Rotor Clip C-093/B
NoCor C-093-B
Rotor Clip C-093-B
N1800-093-B
N18000093APP
N1800093
N1800093/B
N1800-0093APP
N1800-093/B
N1800093B
16632093
16632093B
16632093/B
9103093B
9103093/B
5103093
5103093B
5103093/B
C093/B
C093B
