NC-0200-0280-0200-ST (Each)

Needle Roller without Inner Ring Bearings - 20x28x20 mm / 2320 Kgf Cage Type - CSteel Bearing

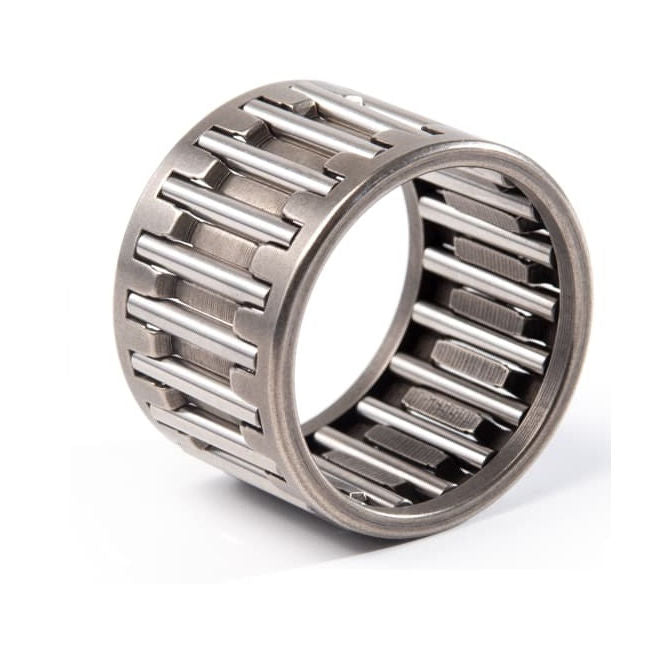

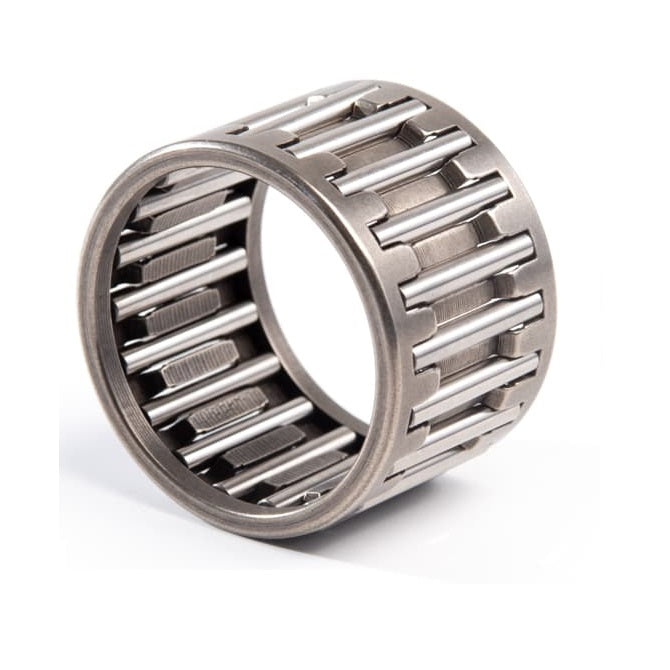

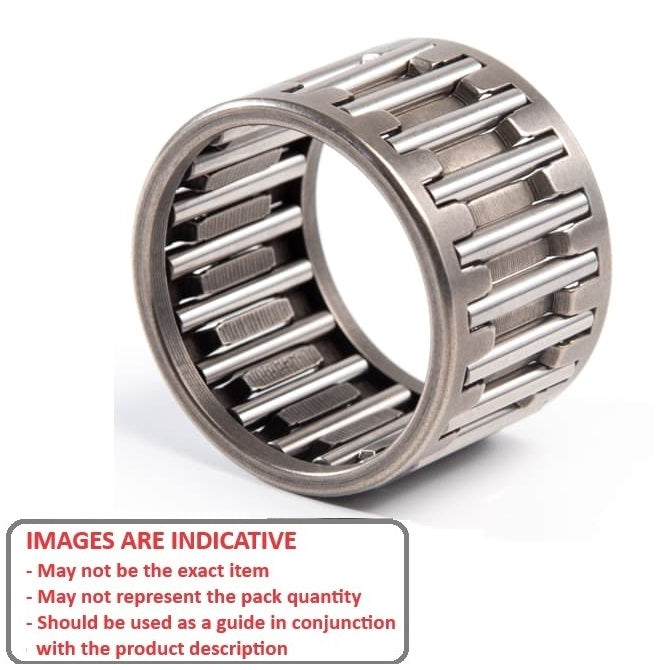

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Needle Roller without Inner Ring Bearings - 20x28x20 mm / 2320 mm - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Shafting
Price:
$11.41 AUD
$13.69 AUD $11.41 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $10.27 AUD Each
Backorder now! Backorders are expected before Apr 29, 2026

Base Category: Bearings - Needle Roller without Inner Ring

Top Level Category: Bearings - Needle Roller without Inner Ring - Cage Type

Product Details

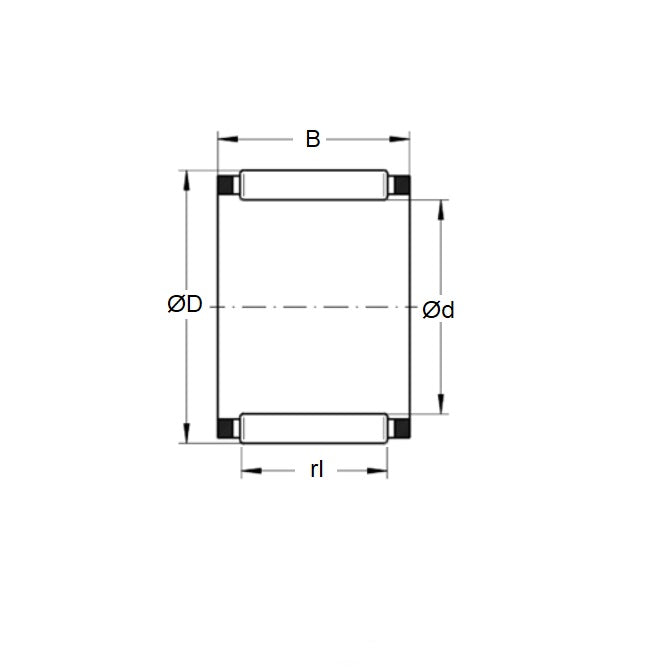

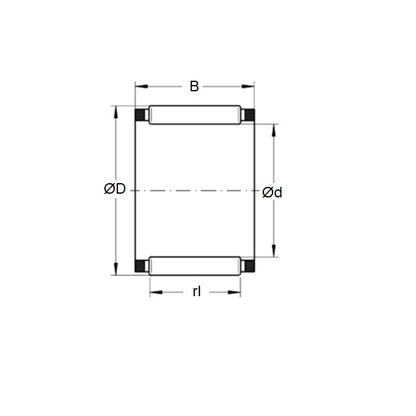

Shaft Diameter (d): 20.000mm
(20.000mm is 0.787 in.)

CSteel
  • Shaft Diameter (d): 20.000mm
    (20.000mm is 0.787 in.)
  • O.D. (D): 28.000mm
    (28.000mm is 1.102 in.)
  • Width (B): 20.000mm
    (20.000mm is 0.787 in.)
  • Basic Dynamic Load Rating: 2320Kgf
  • Basic Static Load Rating: 2900Kgf
  • Limiting Speed Grease: 13000RPM
  • Limiting Speed Oil: 20000RPM
  • Cage Type: Steel
  • Type: Single Rowrl
  • 17.300Roller Length (rl) Ref. Only

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • FAG® K20x28x20
  • FAG® K20x28x20H.ZB2

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
