BF0200-0260-0300-BS3230LT (PK-5)
Flanged Bushes - 20x26x30 mm - Bronze SAE 841 Sintered Bush
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleBushes PDF Catalogue
Order 50 or more packs of 5 (250 pcs)
for $101.91 AUD per 5 pack
20x26x30 mm Flanged Bushes - Bronze SAE 841 Sintered - Sold per pack of 5:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Bronze - Sintered
Product Details
Nominal Inside Diameter (d): 20.000mm+ 0.005 / + 0.030
(20.000mm is 0.787 in.)
Bronze SAE 841 Sintered

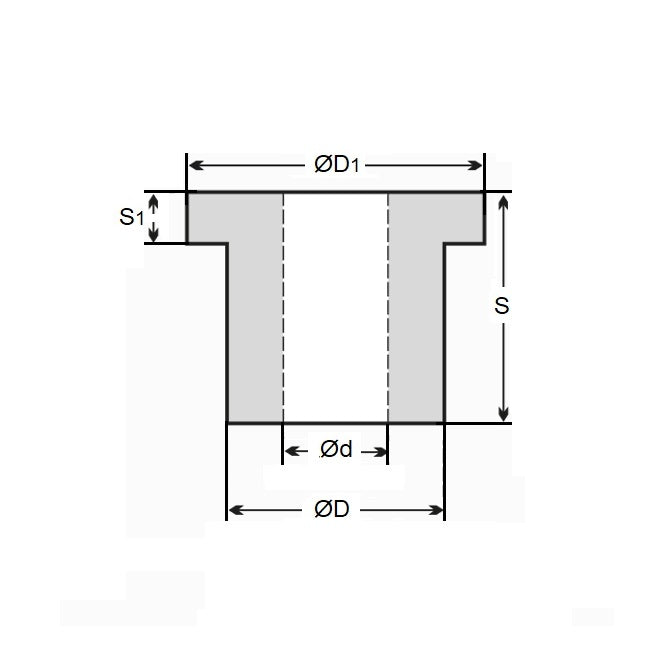

- Nominal Inside Diameter (d): 20.000mm
+ 0.005 / + 0.030
(20.000mm is 0.787 in.)
- Nominal Outside Diameter (D): 26.000mm
+ 0.035 / + 0.060
(26.000mm is 1.024 in.)
- Length (s): 30.000mm
+/- 0.127
(30.000mm is 1.181 in.)
- Flange OD (D1): 32.00mm
- Flange Thickness (S1): 3.00mm
- Comments: ISO2795
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Oilube® FM-2026-30
- FM202630
- BF020002600300BSTH
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF020002600300BS3230LT, BF020002600300
