W0200-FP-028-0050-CL (20 Pcs)

Name: W0200-FP-028-0050-CL (20 Pack) - Flat Washers - 20x28x0.5 mm Precision Shim - Carbon Spring Steel Self Finish Washer
Brand: MBA
SKU: W0200FP0280050CL
Price: 3.41 AUD
Availability: InStock

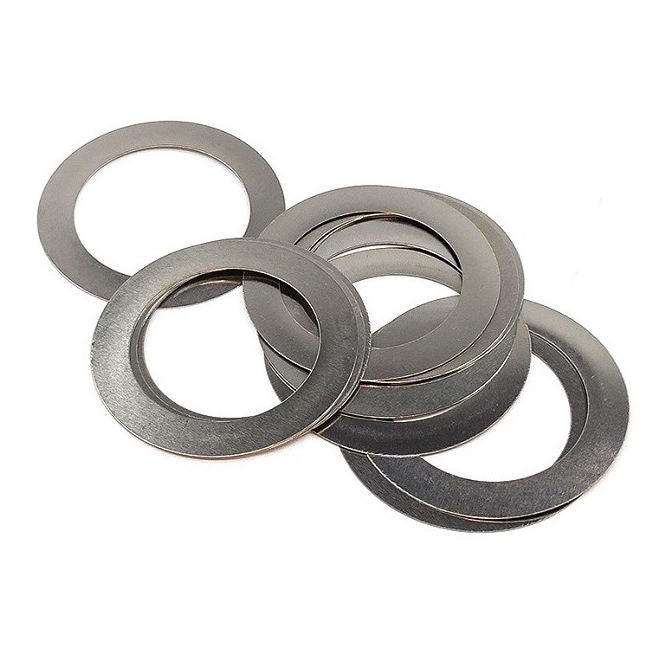

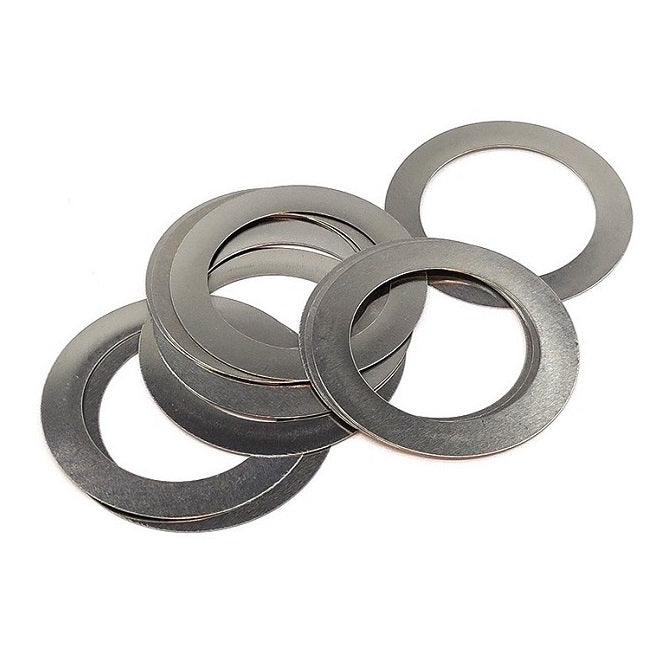

Flat Washers - 20x28x0.5 mm Precision Shim - Carbon Spring Steel Self Finish Washer

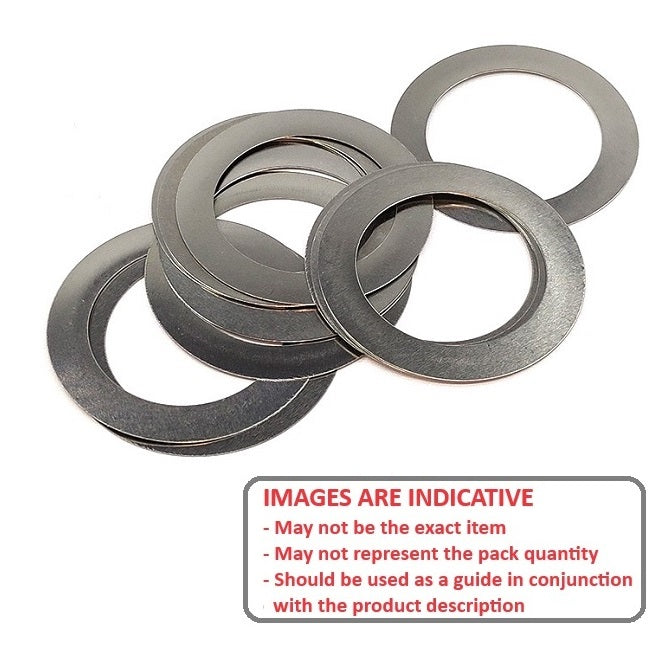

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Washers - Flat - Precision Shim - Carbon Spring Steel

Additional resources:
Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws

Price:

$3.41 AUD

per 20
Qty: 13 packs (260 pcs) available now
Order 50 or more packs (1000 pcs) for $3.07 AUD per 20

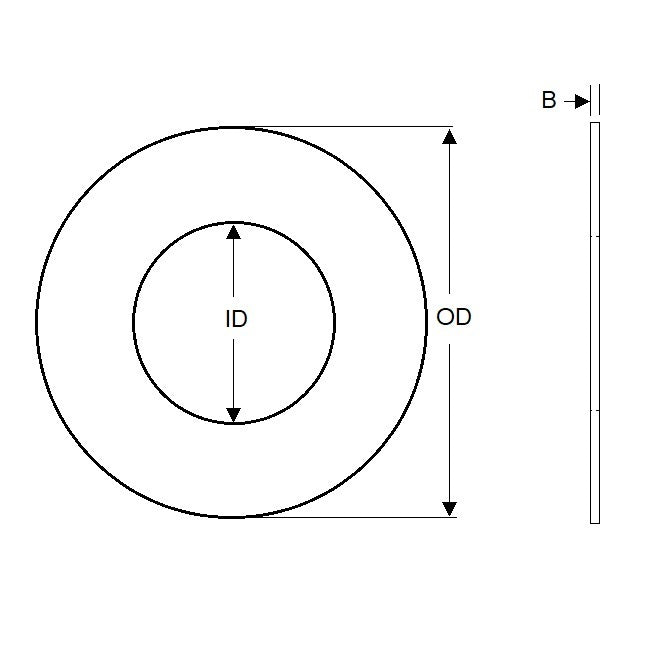

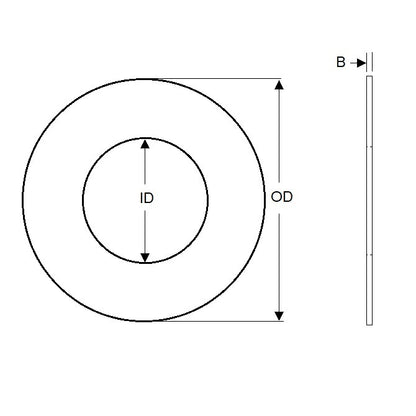

Product Details

Nominal Inside Diameter (d): 20.000mm
_{+ 0.065 / + 0.275}
_{(20.000mm is 0.787 in.)}

Carbon Spring Steel Self Finish

Nominal Outside Diameter (D): 28.000mm
_{- 0.065 / - 0.275}
_{(28.000mm is 1.102 in.)}
Thickness (T): 0.500mm
_{+ 0.000 / - 0.050}
_{(0.500mm is 0.02 in.)}
Other: Rockwell B 80 Min
Grade: Precision
Min. Actual ID (Ref): 20.065mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
98055A236
NoCor PS-020028-0.5
Seeger PS020028050-BLS
Seeger PS20028050-BLS
Seeger PS20X28X0.5
ExaktKey S76390
NoCor S76390
Springmaster S76390
XOSpring S76390
W0200FP028005C
W0200FP028005CL
P20x28x0.5
PS020028050BLS
PS20028050BLS
CPS20X28X0.5

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
