CC-200-222-SS (PK-5)

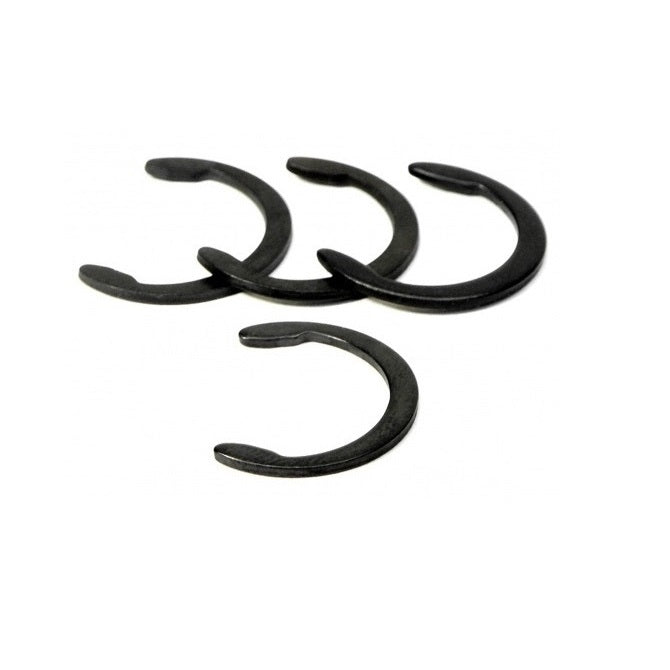

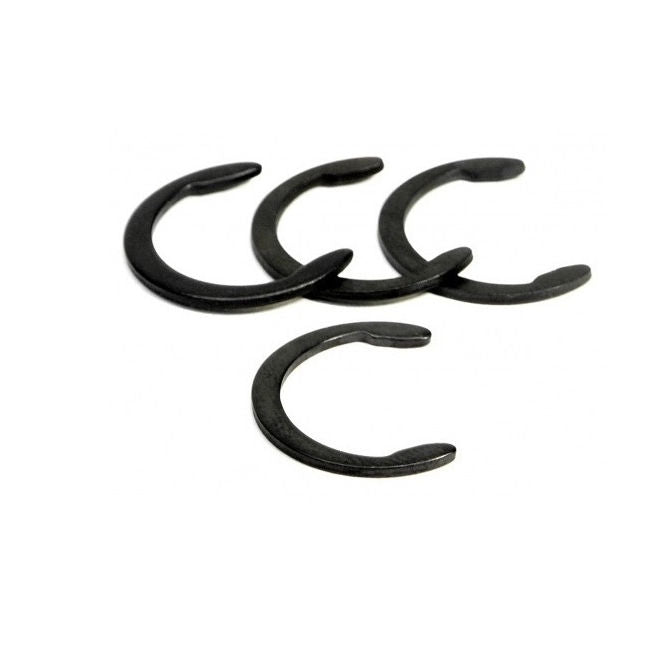

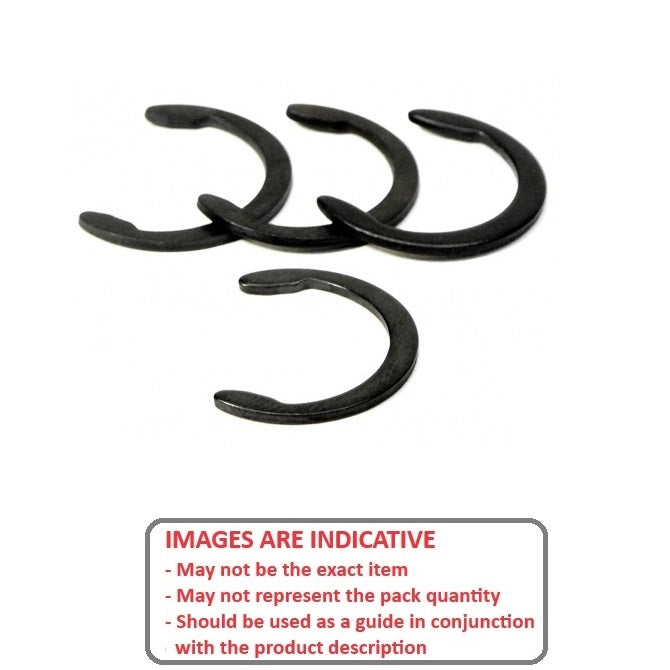

20.04x22.23x1.07 mm Crescent Retaining Rings - Stainless Steel Grade PH15-7-17 - Sold per pack of 5:

Base Category: Retaining Rings - Crescent

Top Level Category: Retaining Rings - Crescent

Product Details

Additional stock available from USA subject to Prior Sale = 1773

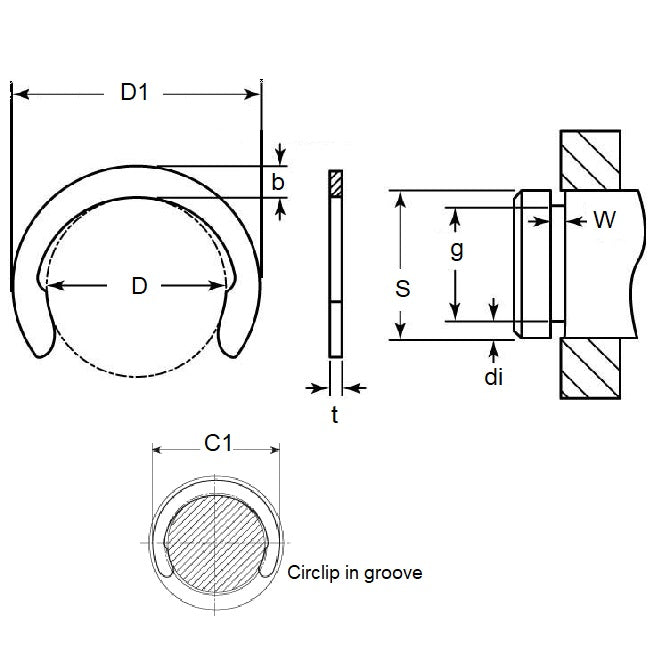

Groove Diameter (G): 20.04mm
_{(20.04mm is 0.789 in.)}

Stainless Steel Grade PH15-7-17

• Groove Diameter (G): 20.04mm
  _{(20.04mm is 0.789 in.)}

• Shaft Diameter (S): 22.23mm
  _{(22.23mm is 0.875 in.)}

• Thickness (t): 1.07mm
  _{(1.07mm is 0.042 in.)}

• Clip OD in groove (C1): 25.65mm
• Clip OD Loose (D1): 25.17mm
• Groove Width (W): 1.17

Brand: MBA
Country of Origin: US

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Military 16632-087-SS/B
• Military 16632-087-SS-B
• Waldes® 5103-087-SS/B
• Waldes® 5103-087-SS-B
• Ellison® 9103-087-SS/B
• Ellison® 9103-087-SS-B
• Huyett® C-087-SS/B
• NoCor® C-087-SS/B
• Rotor Clip® C-087-SS/B
• NoCor® C-087-SS-B
• Rotor Clip® C-087-SS-B
• C087SS/B
• C087SSB
• N1800-087-SS/B
• N1800087SSB
• N1800087SS/B
• N1800-087-SS-B
• 16632087SS/B
• 16632087SSB
• 9103087SS/B
• 9103087SSB
• 5103087SS/B
• 5103087SSB

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CC200222SS, CC200
