DVT2-0626-HCH (Each)

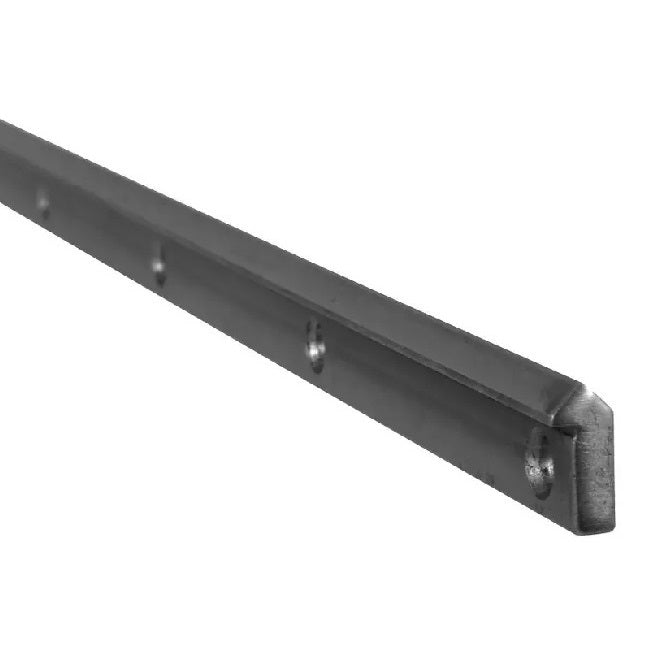

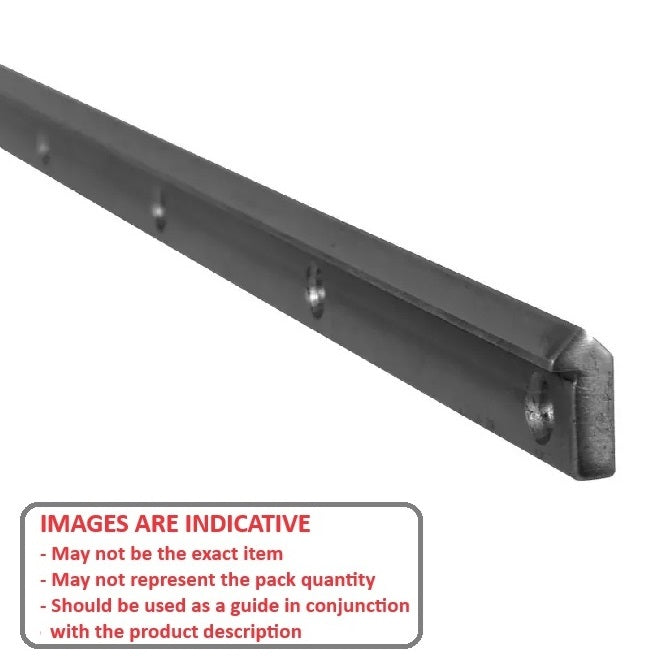

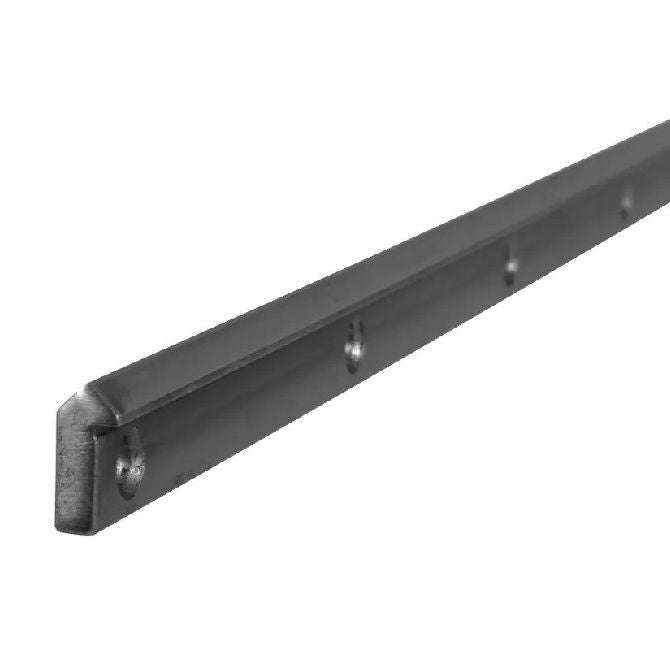

Tracks Dual Vee - Track Size 2 - 625.6x6.35 mm - Carbon Steel AISI 1045
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $149.93 AUD Each
Track Size 2 - 625.6x6.35 mm Tracks Dual Vee - Carbon Steel AISI 1045 - Sold per Each:
Base Category: Dual Vee - Tracks
Top Level Category: Dual Vee - Tracks - Steel
Product Details

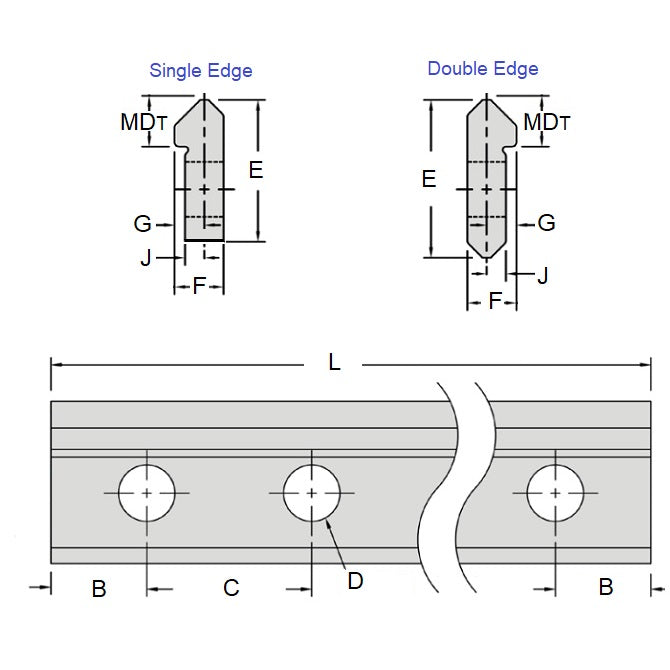

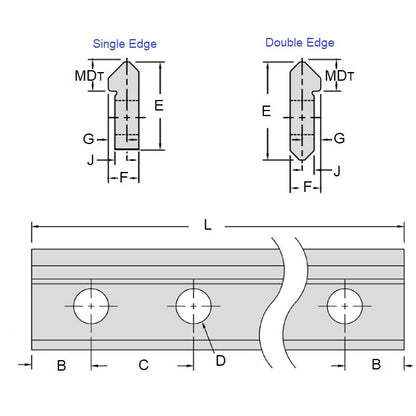

Track Size: 2Carbon Steel AISI 1045
- Track Size: 2
- Overall Length (L): 625.6mm
(625.6mm is 24.63 in.)
- Overall Width (F): 6.35mm
(6.35mm is 0.25 in.)
- Height (E / MDT): 15.88 / 4.75mm
- Type: Single Edged
- Hole Spacing (C): 76.2mm
- Number of Holes: 9 (5.16mm)
- End Hole Spacing (B): 7.87mm
- Condition: Hardened Rc 58 - 60
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® WZ-35
- WZ35
- A7Q15M22463
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DVT20626HCH, DVT20626
