ECL-0019-0025-C (PK-100)

Name: E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Carbon Steel E-Clip (Sold Per PK-100) - - ECL-0019-0025-C
Brand: MBA
SKU: ECL00190025C
Price: 4.86 AUD
Availability: InStock

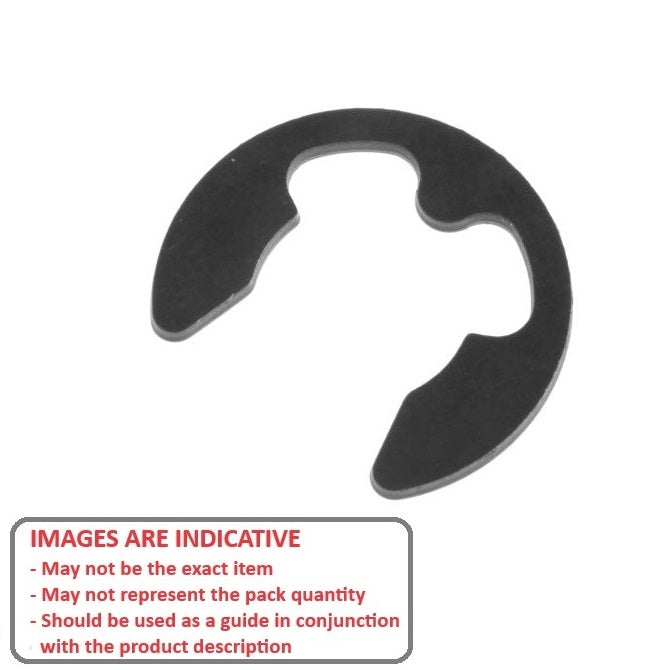

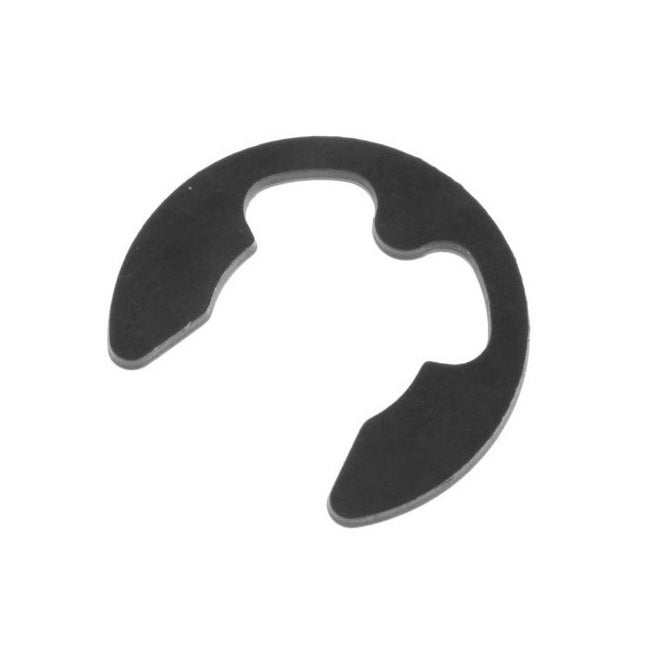

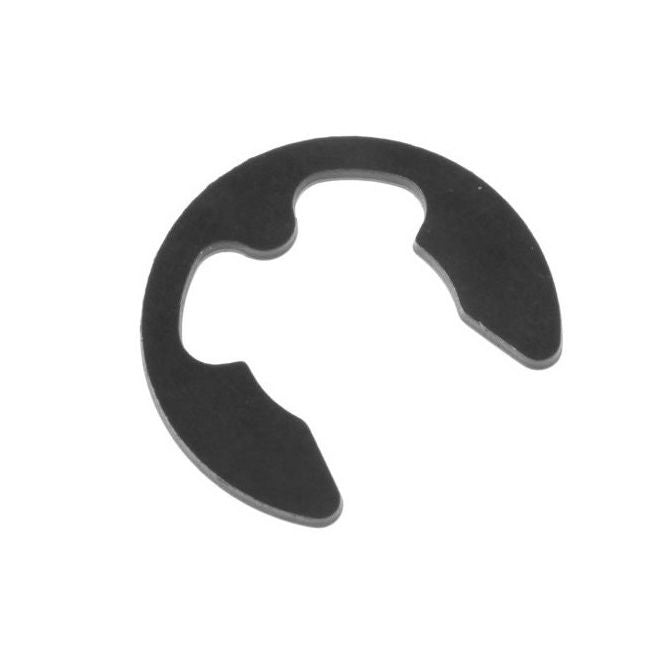

E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Carbon Steel E-Clip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - E-Clips - Basic - Carbon Steel

Additional resources:
Assortment Kits
E-Clip Applicators

Price:

$4.86 AUD

Priced, Stocked and Sold Per 100 Units

Excludes GST and overseas Taxes & Duties

Qty: 32 packs (3200 pcs) available now

Order 50 or more packs of 100 (5000 pcs)
for $4.37 AUD per 100 pack

Product Details

Additional stock available from USA subject to Prior Sale = 21071

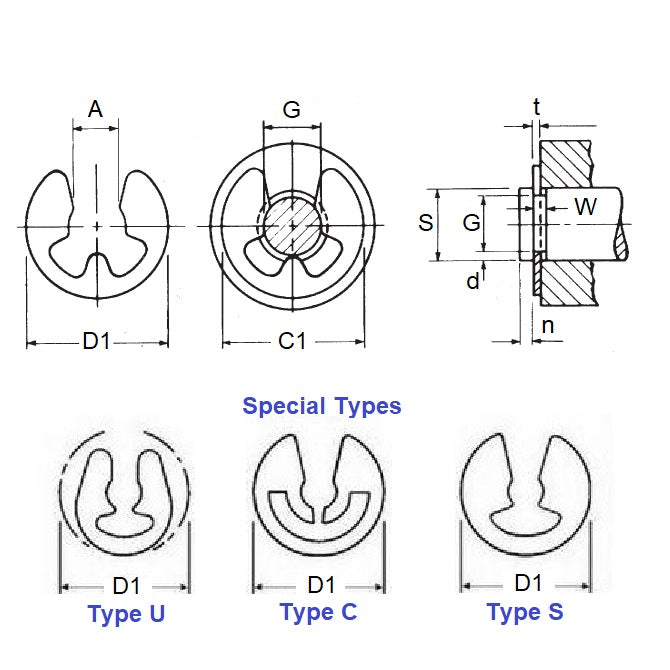

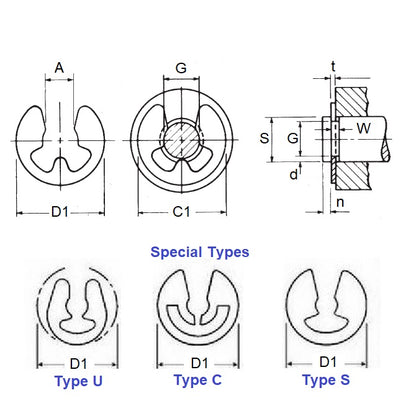

Minimum Rec. Shaft Dia (S): 2.50mm
_{+ 0.50 / - 0.00}
_{(2.50mm is 0.098 in.)}

Carbon Steel

Minimum Rec. Shaft Dia (S): 2.50mm
_{+ 0.50 / - 0.00}
_{(2.50mm is 0.098 in.)}
Groove Dia. (Dg): 1.90mm
_{+ 0.00 / - 0.06}
_{(1.90mm is 0.075 in.)}
Clip Thickness (T): 0.50mm
_{+/- 0.02}
_{(0.50mm is 0.02 in.)}
Clip OD Loose (D1): 4.40mm
Groove Width (W): 0.54mm
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80mm
Loose Clip ID (A): 1.61mm
Min. Extension (n): 1.00
Additional Info: RRA-719 Applicator
Standard: DIN6799

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
98543A080
Huyett® DE-019
NoCor® DE-019
Cirteq RA1.9
D15000019
D1500-0019
DE019
B1500-A074APP
B1500A074APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
