RCL-025-065-S4 (PK-5)
Single Coil R Clips - 2.5x65 mm - 304 Stainless Steel Clip
Brighton Best
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Split Pins
Order 50 or more packs of 5 (250 pcs)
for $10.67 AUD per 5 pack
Couldn't load pickup availability
2.5x65 mm - 304 Stainless Steel Single Coil R Clips - Stainless Steel - Sold per pack of 5:
Base Category: R Clips - Single Coil
Top Level Category: R Clips - Single Coil - Stainless Steel
Product Details

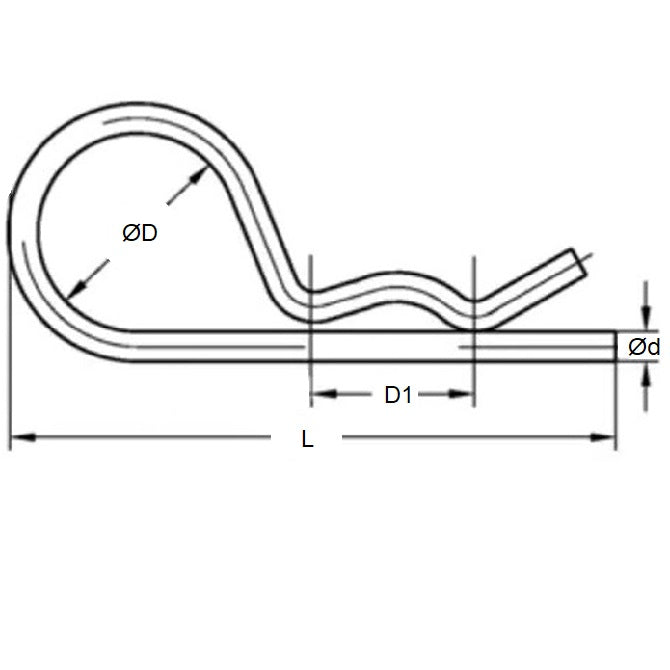

Wire Thickness (d): 2.50mm(2.50mm is 0.098 in.)
- Wire Thickness (d): 2.50mm
(2.50mm is 0.098 in.)
- Length (L): 65.0mm
(65.0mm is 2.559 in.)
- Material: 304 Stainless Steel
- Drill Hole Size: 2.78mm
- Approx.Inside Eye (D): 16.00 to 18.00mm
- Shaft Size Range: 9.53 to 19.05mm
- Approx. Bridge Length (D1): 25mm
Brand: Brighton Best
Country of Origin: TW
Product Compliance and Data
Similar to
- Brighton Best® W22025
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RCL025065S4, RCL025
