HDP024-09R-S4 (PK-10)
Hammer Drive Pins - 2.44x9.5x2.64 mm Round Head Stainless Steel - Stainless Steel Pin
NoCor
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Order 50 or more packs of 10 (500 pcs)
for $1.93 AUD per 10 pack
Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
Couldn't load pickup availability
2.44x9.5x2.64 mm Hammer Drive Pins - Stainless Steel - Sold per pack of 10:
Base Category: Pins - Hammer Drive
Top Level Category: Pins - Hammer Drive - Round Head Stainless Steel
Product Details

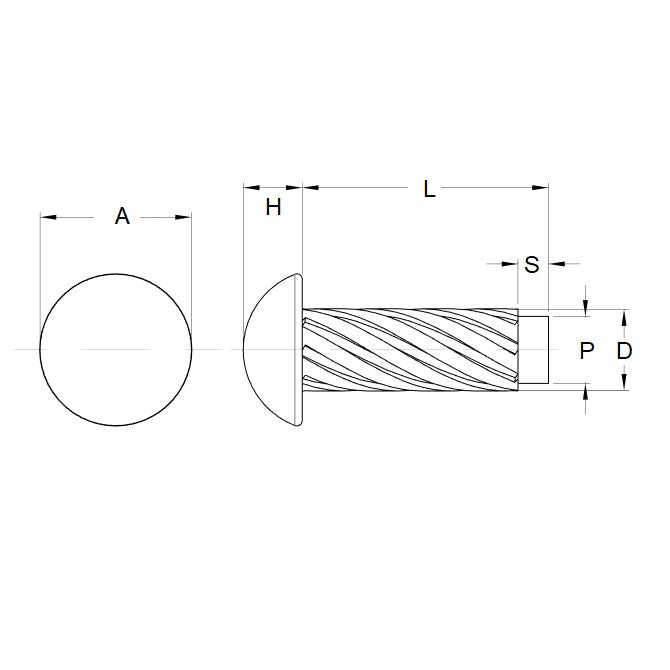

Min Hole Diameter: 2.44mm(2.44mm is 0.096 in.)
Stainless Steel
- Min Hole Diameter: 2.44mm
(2.44mm is 0.096 in.)
- Approx. Length (l): 9.5mm
(9.5mm is 0.374 in.)
- Max Hole Dia.: 2.64mm
(2.64mm is 0.104 in.)
- Approx Pin Diameter (d1): 2.95mm
- Max Head Diameter (d2): 5.36mm
- Max Head Thickness (h): 2.18mm
- Nom. Pilot Length: 1.6mm
Brand: NoCor
Country of Origin: TW
Product Compliance and Data
Similar to
- ALTPART
- 91654A079
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
HDP02409RS4, HDP02409R
