PSP-024-014-C (50 Pcs)

Coiled Pins - 2.38x14.28 - 2.38 - 2.46 - High Carbon Steel

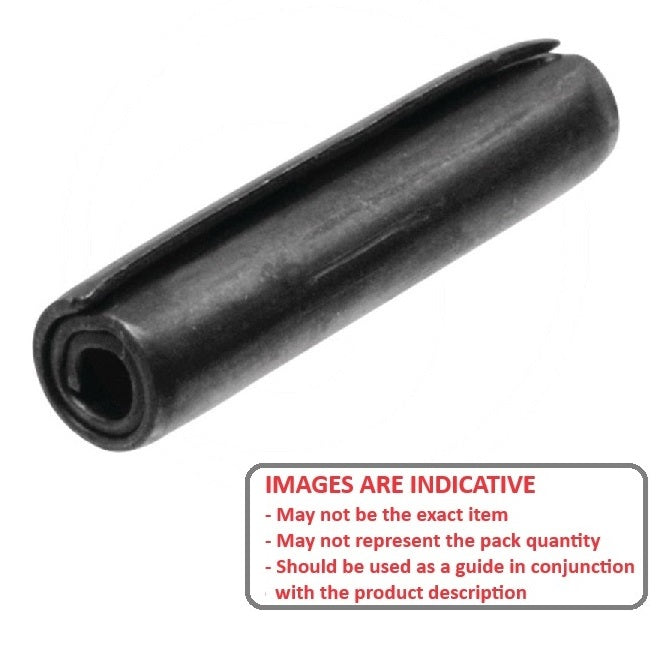

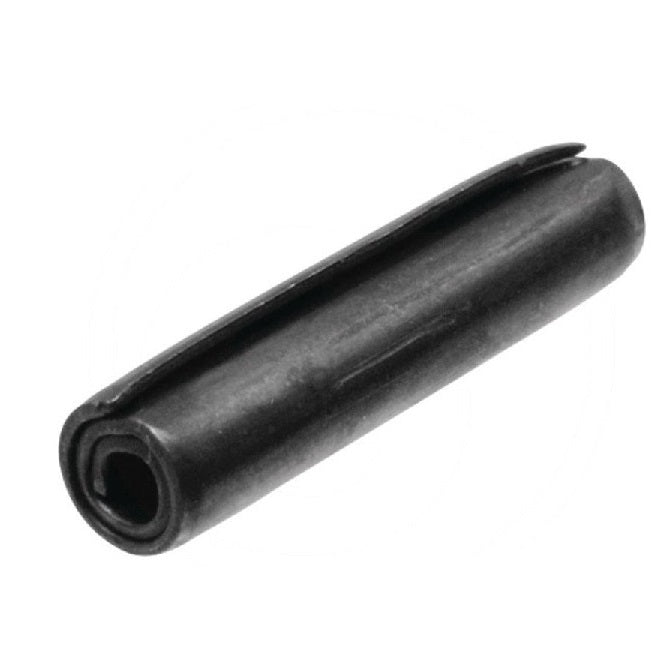

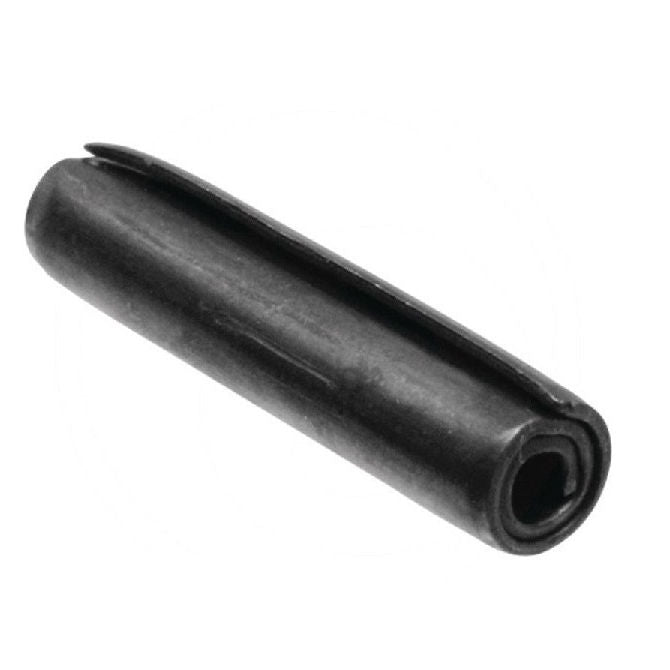

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 2.38x14.28 - 2.38 - 2.46 - Carbon Steel - High Carbon
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$16.14 AUD
$19.36 AUD $16.14 AUD
per 50
Backorder
Order 50 or more pack (2500 pcs) for $14.53 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Aug 08, 2025

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Standard Duty

Product Details:

Additional stock available from USA subject to Prior Sale = 18331

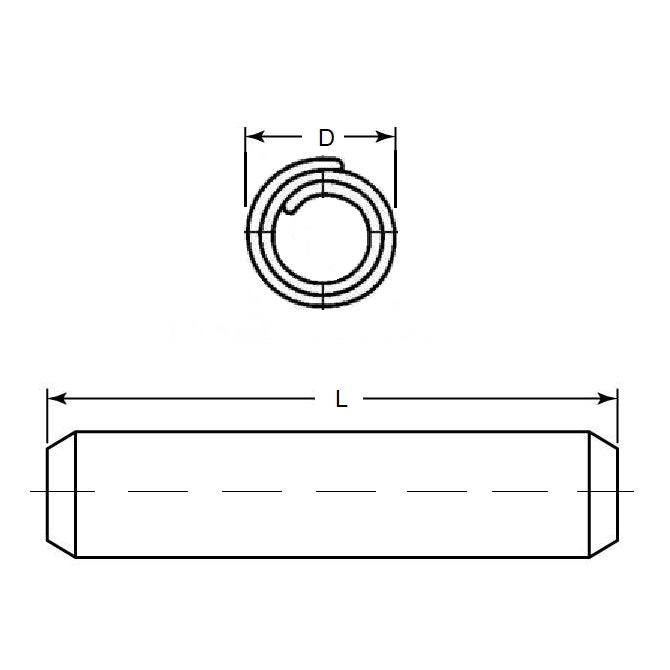

Nom. Hole Diameter: 2.38mm
(2.38mm is 0.094 in.)

High Carbon Steel
  • Length: 14.28mm
    +/- 0.50
    (14.28mm is 0.562 in.)
  • Drill Size: 2.38 - 2.46mm
    (2.38 - 2.46mm is 0.094 in.)
  • Loose Diameter: 2.51 - 2.67mm
  • ISO: Standard Duty ASME B18.8.2
  • Hardness: RC 46-53 (HV 420 to 545)

Brand: MBA
Country of Origin: US

Alternative Parts Include: SPC-093-0562, SPC0930562, A9Q36-0318, A9Q360318, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
