CS-0220-0087-02-S2-C

Name: 1040905 | CS-0220-0087-02-S2-C --- Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring
Brand: MBA
SKU: CS0220008702S2C
Price: 3.49 AUD
Availability: InStock

Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Springs - Compression - Stainless Steel

Additional resources:
Spings Catalogue PDF
Assortment Kits

Price:

$3.49 AUD

~~$7.02 AUD~~ $3.49 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 328 available now
Order 50 or more for $3.14 AUD

Product Details

Deleted Item. Available while stocks last.

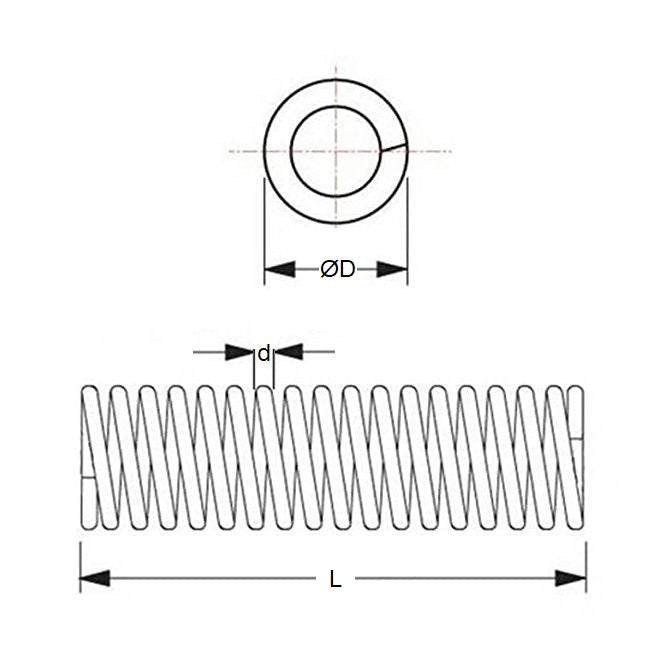

Spring OD (D0): 2.20mm
_{+/- 0.076}
_{(2.20mm is 0.087 in.)}

Stainless Steel 302/304 (Similar to A2, 18-8)

Spring OD (D0): 2.20mm
_{+/- 0.076}
_{(2.20mm is 0.087 in.)}
Free Length (L0): 8.7mm
_{+/- 0.38}
_{(8.7mm is 0.343 in.)}
Wire Diameter (d): 0.20mm
_{+/- 0.13}
_{(0.20mm is 0.008 in.)}
Loaded Height (L1): 2.90mm
Load at L1: 1.24N
Rate (P/f): 0.2N/mm
Solid Height (Sh): 2.30mm
Approx. ID: 1.8mm
End Type: Closed
Max Rod Dia. (A): 1.69mm

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

CD2027

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
