HDP021-06R-S4 (5 Pcs)

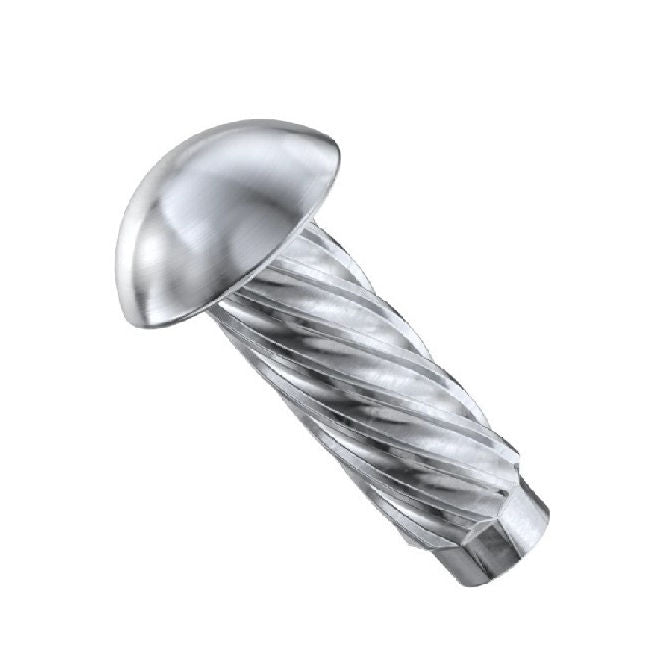

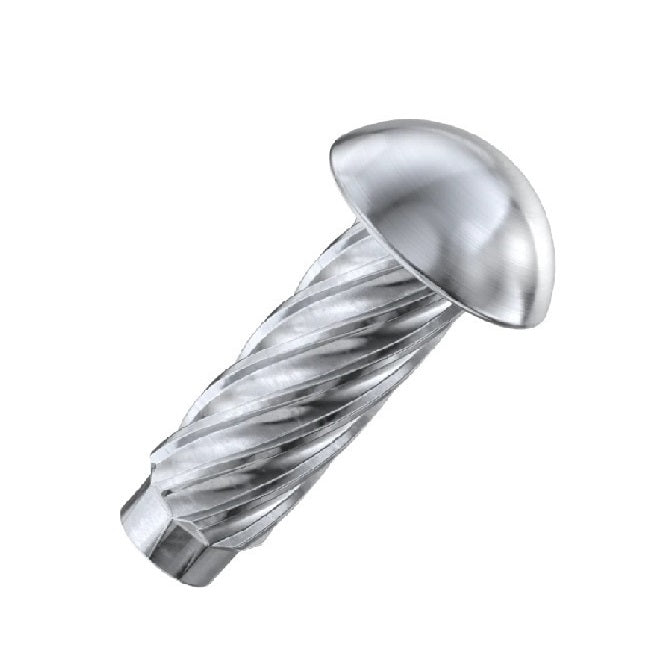

Hammer Drive Pins - 2.1x6.3x2.18 mm Round Head Stainless Steel - Stainless Steel Pin

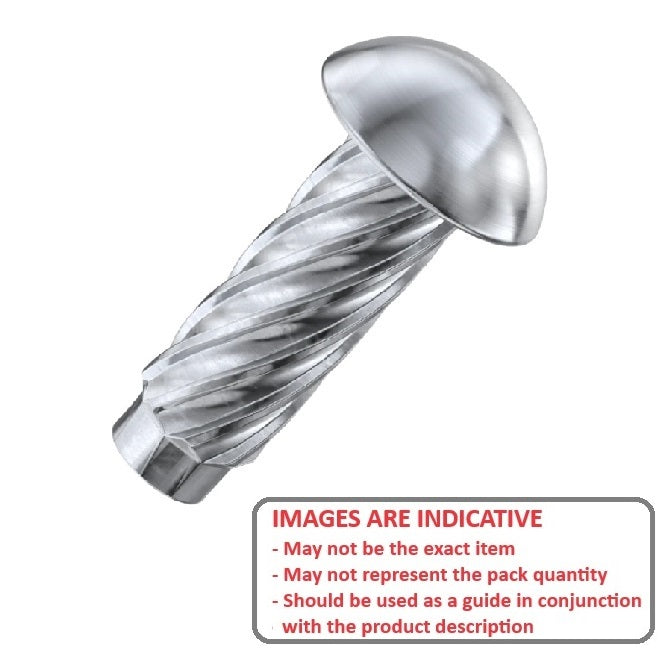

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Hammer Drive Pins - 2.1x6.3x2.18 mm - Stainless Steel
1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Price:
$1.23 AUD
$5.83 AUD $1.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
 Qty: 236 available now
Order 50 or more for $1.11 AUD
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 01, 2025

Base Category: Pins - Hammer Drive

Top Level Category: Pins - Hammer Drive - Round Head Stainless Steel

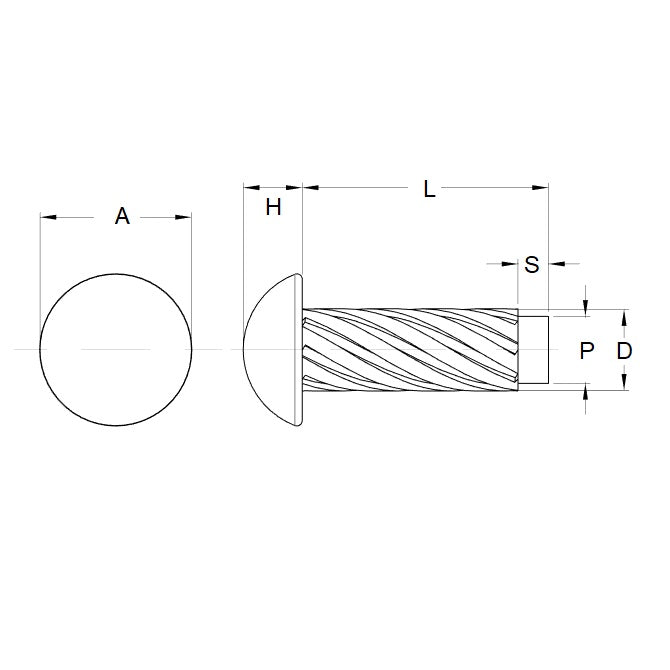

Product Details

Min Hole Diameter: 2.10mm
(2.10mm is 0.083 in.)

Stainless Steel
  • Min Hole Diameter: 2.10mm
    (2.10mm is 0.083 in.)
  • Approx. Length (l): 6.3mm
    (6.3mm is 0.248 in.)
  • Max Hole Dia.: 2.18mm
    (2.18mm is 0.086 in.)
  • Approx Pin Diameter (d1): 2.54mm
  • Max Head Diameter (d2): 4.10mm
  • Max Head Thickness (h): 1.75mm
  • Nom. Pilot Length: 1.2mm

Brand: NoCor
Country of Origin: TW
