CFS-0010-0406-064-S1 (10 Pcs)

Constant Force Springs - 1 Newtons - 406.4x0.102 mm - Carbon Spring Steel Music Wire

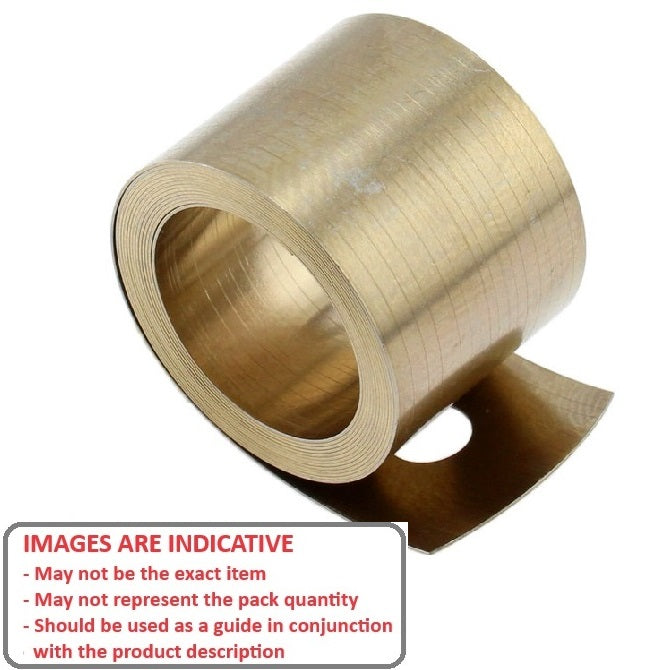

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Constant Force Springs - 1 Newtons - 406.4x0.102 mm - Spring Steel Music Wire
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$20.00 AUD
$38.00 AUD $20.00 AUD
per 10
Qty: 1 pack (10 pcs) available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Springs - Constant Force

Top Level Category: Springs - Constant Force

Product Details

Load Capacity: 1.0Newtons
+/- 10%

Carbon Spring Steel Music Wire

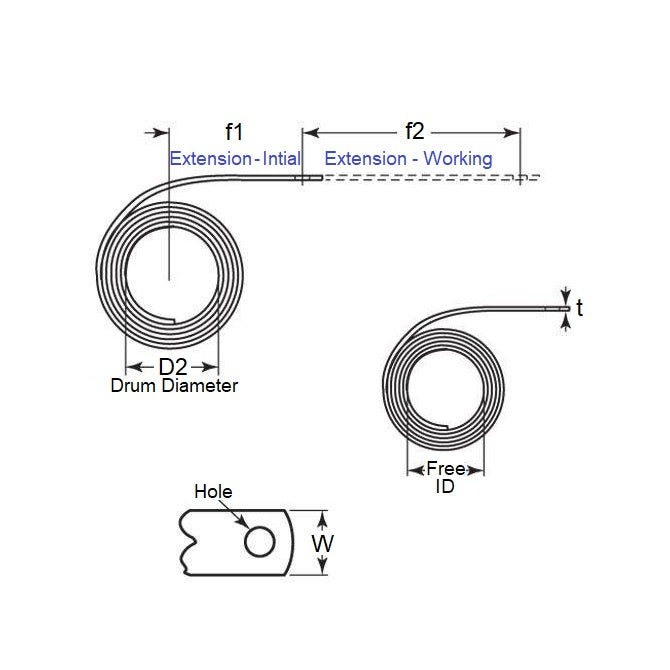

  • Band Length: 406.4mm
    (406.4mm is 16 in.)
  • Thickness (t): 0.102mm
    (0.102mm is 0.004 in.)
  • Band Width (W): 6.35mm
  • Free ID (Ref. Only): 13.10mm
  • Drum Diameter: 16.0
  • Cycles Life: 20000
  • Mounting Holes: 1mm
  • Initial Extension (f1): 24130.0mm
  • Max. Working Deflection (f2): 304.8

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

  • ATA 150-135775
  • 150135775

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
