SMR19.558-4.762-YY-VP-3.810

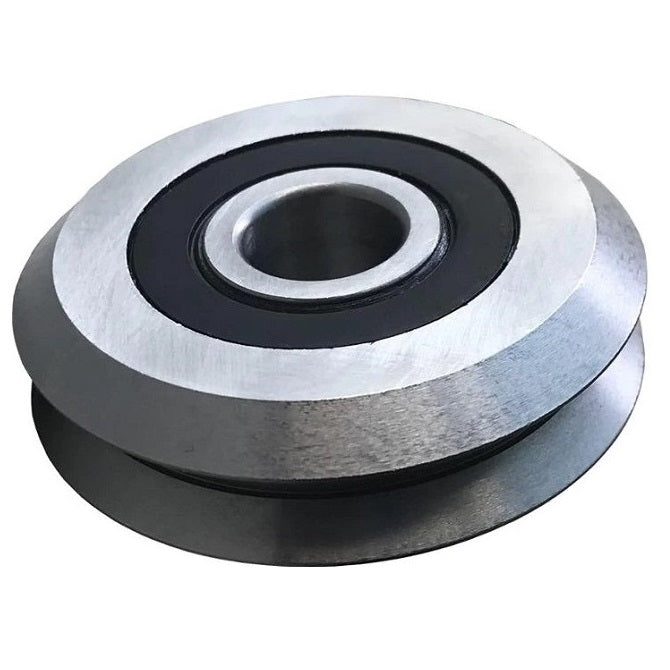

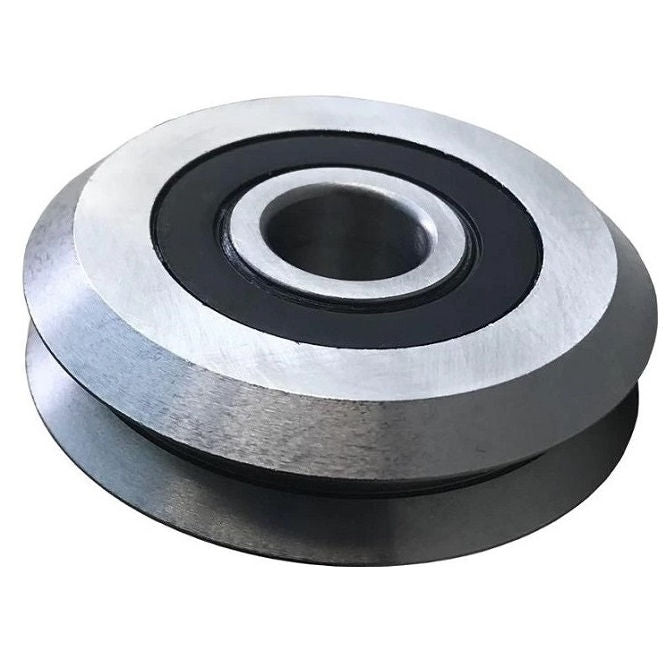

Plain Guide Wheels Dual Vee - Size Reference 1 - 19.558x7.938 mm - Stainless Steel AISI 440C Wheel

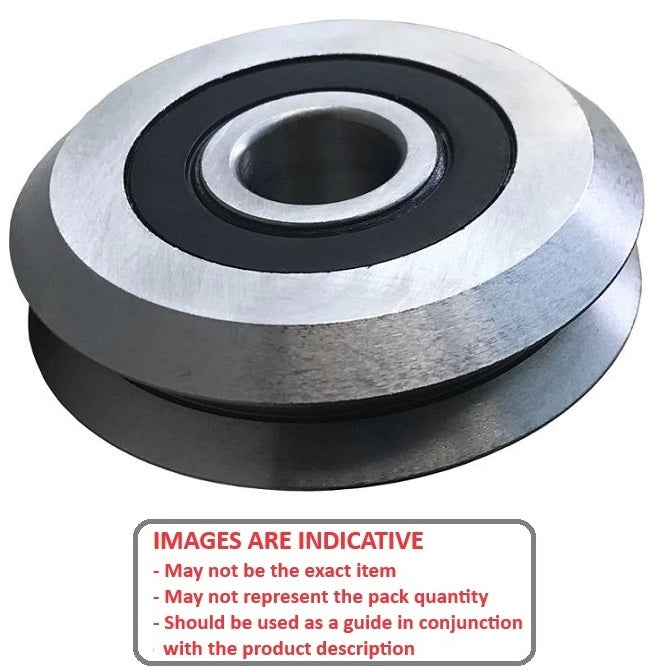

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 1 - 19.558x7.938 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$26.51 AUD
$70.27 AUD $26.51 AUD
Excludes GST and overseas Taxes & Duties
 Each
Qty: 3 available now
Only 3 may be ordered online. If you need a large quantity, please contact us.

Base Category: Dual Vee - Plain Guide Wheels

Top Level Category: Dual Vee - Plain Guide Wheels

Product Details


Deleted Item. Available while stocks last.

Size Reference: 1

Stainless Steel AISI 440C

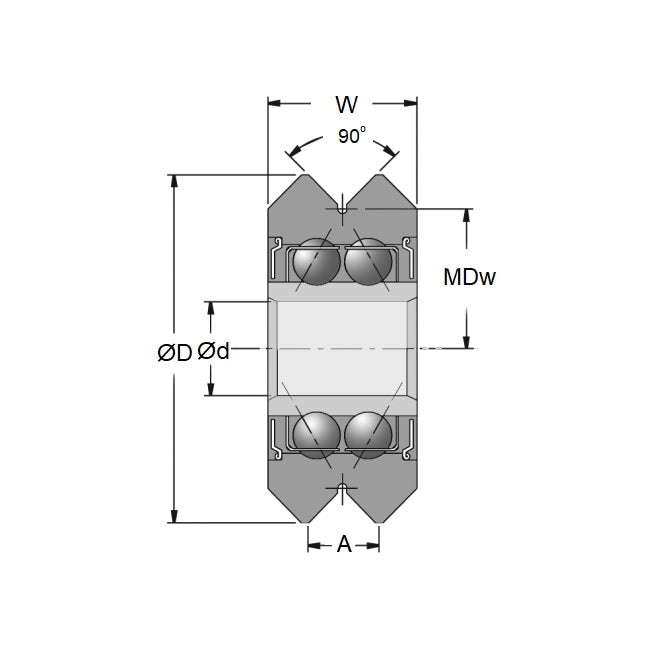

  • Size Reference: 1
  • Outside Diameter (O.D): 19.558mm
    (19.558mm is 0.77 in.)
  • Journal Width (W): 7.938mm
    (7.938mm is 0.313 in.)
  • Groove Top Width (A): 3.810mm
  • Bore (d): 4.762mm
  • Bottom of Groove to Ctre (MDw): 7.95mm
  • Radial Working Load Capacity: 65KgF
  • Axial Working Load Capacity: 27KgF
  • Bearing Type: Sealed Bearing

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • Dual Vee W1-X-SS
  • W1XSS
  • WZ31
  • WZ-31
  • A7Y16M1

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
